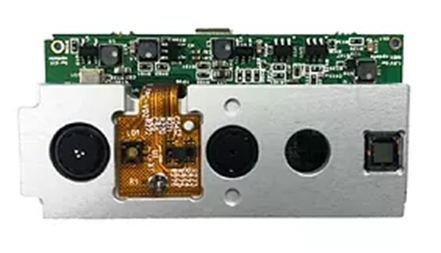

LIPSedge™ L210u/L215u Series 3D Structured Light Camera

  LIPSedge^TM L215u                                LIPSedge^TM L210u

​

The LIPSedge^TM L210u/L215u 3D structured light cameras, with up to Full-HD resolution, high precision (≤ 0.3% @100cm), and 940nm wavelength VCSEL light source can be used indoors and outdoors, and can support short-range 3D sensing applications such as 3D scan, 3D facial recognition, 3D measurement, and visual defect inspection.  The small form factor and high cost-performance of the LIPSedge^TM L210u/L215u series make it an ideal RealSense^TM alternative for customers looking to transition.

​Structured Light Technology

• Small form factor (L x W x H) : 54 x 25 x 11.3 mm
• FoV : 50° x 74° x 84° / Range : 0.3 ~ 1 m
• Depth resolution : 1280*800
• Indoor & outdoor use / Featuring VCSEL @ 940nm
​

Key Product Features
1. Compact size for embedded integration
     • Two for factors: Module (LIPSedge^TM L210u) & w/ Enclosure (LIPSedge^TM L215u)

2. High-accuracy & optimized for short-range applications
     • Up to 0.3% @ 100cm accuracy with depth resolution 1280*800
     • Featuring global shutter

3. Support both indoor & outdoor use
     • Featuring VCSEL @ 940nm with sunlight resistance up to 80K Lux

4. USB plug & play to a host PC

5. Industrial framework support: OpenNI, OpenCV & ROS

6. Cross-platform OS support on Windows & Linux

7. Solution Ready Package from LIPS
     • LIPSMetric^TM Handheld Dimensioning Camera Kit​

Chengdu, China Dec. 16, 2021 – Eoptolink Technology Inc., Ltd (SZSE: 300502) today announces the launch of its 800G transceiver portfolio. The portfolio consists of both EML and SiPh based solutions.

As a result of the fast development of cloud, AI and 5G applications, demand for network bandwidth has been growing and therefore data center networks will need to be upgraded to 800G and 1.6T in the near future. Eoptolink’s 800G portfolio, which consists of AOCs and SM transceivers, are available in OSFP and QSFP-DD800 form-factor. The modules operate with 8x 112 Gbps PAM4 signals at the electrical host interface and support CMIS 4.0 and above.

The Portfolio consists of:

EOLO-8HG-PCT-XX	800G OSFP, AOC
EOLO-138HG-5H-SM	800G OSFP, 8x100G DR, MPO-16
EOLO-138HG-02-SM	800G OSFP, 8x100G FR, MPO-16
EOLO-168HG-02-X	800G OSFP, 2x400G FR4, Dual CS or LC
EOLD-8HG-PCT-XX	800G QSFP-DD, AOC
EOLD-138HG-5H-SM	800G QSFP-DD, 8x100G DR, MPO-16
EOLD-138HG-02-SM	800G QSFP-DD, 8x100G FR, MPO-16
EOLD-168HG-02-X	800G QSFP-DD, 2x400G FR4, Dual CS



EOLO-8HG-PCT-XX (OSFP) and EOLD-8HG-PCT-XX (QSFP-DD800) are AOCs for up to 30m transmission distances.

EOLO-138HG-5H-SM (OSFP) and EOLD-138HG-5H-SM (QSFP-DD800) are DR8 compliant, while EOLO-138HG-02-SM (OSFP) and EOLD-138HG-02-SM (QSFP-DD800) are DR8+ compliant supporting transmission distances up to 2km. The DR8/DR8+ modules have MPO-16 interfaces and support 800G, 2x400G and 8x100G applications. In breakout applications they can interface with 2x 400G DR4/DR4+ or 8x 100G DR1/FR1 transceivers.

EOLO-168HG-02-X (OSFP) and EOLO-168HG-02-X (QSFP-DD800) support 2xFR4 applications. QSFP-DD800 has two CS connectors, each carrying a 400G FR4 interface. The OSFP version is available with either dual CS or LC interfaces.

The 800G OSFP transceivers have already been tested on 800G switch platforms and showed good performance.

“This is a big step forward to move towards 112 Gbps electrical interfaces at the host ASICs”, explained Sean Davies, Director of Sales for the Americas at Eoptolink. “It enables our customers to further increase density, lower cost per bit and power consumption. 800G is the logical next step for the cloud data centers. We believe that pluggable optics continue to offer maximum flexibility to OEM/ODM switch vendors and their customers and are glad to be at the forefront of this evolution.”

  OSFP 800G Series :

1. EOLO-8HG-PCT-XX : 800G OSFP, AOC, up to 30m transmission distances.
2. EOLO-138HG-5H-SM : 800G OSFP, DR8 Compliant, 8x100G DR, MPO-16, support 800G, 2x400G and 8x100G applications. In breakout applications they can interface with 2x 400G DR4 or 8x 100G DR1/FR1 transceivers.
3. EOLO-138HG-02-SM : 800G OSFP, DR8+ Compliant, 8x100G FR, MPO-16, supporting transmission distances up to 2km. support 800G, 2x400G and 8x100G applications. In breakout applications they can interface with 2x 400G DR4+ or 8x 100G FR1 transceivers.
4. EOLO-168HG-02-X : 800G OSFP, FR8 Compliant, 2x400G FR4, Dual CS or LC


  QSFP-DD800 Series :

1. EOLD-8HG-PCT-XX : 800G QSFP-DD, AOC, up to 30m transmission distances.
2. EOLD-138HG-5H-SM : 800G QSFP-DD, DR8 Compliant,8x100G DR, MPO-16, support 800G, 2x400G and 8x100G applications. In breakout applications they can interface with 2x 400G DR4 or 8x 100G DR1/FR1 transceivers.
3. EOLD-138HG-02-SM : 800G QSFP-DD, DR8+ Compliant, 8x100G FR, MPO-16, supporting transmission distances up to 2km. support 800G, 2x400G and 8x100G applications. In breakout applications they can interface with 2x 400G DR4+ or 8x 100G FR1 transceivers.
4. EOLD-168HG-02-X : 800G OSFP, FR8 Compliant, 2x400G FR4, Dual CS




• Less than half the cost of a similar QDR memory configuration
• 4 - 8X QDR Capacity - 567Mb and 1Gb memory options
• Single device replaces multiple QDR parts
• Multiple independent random-access SRAMs on each device
• tRC of 3.2ns
• QDR-like performance
• Bandwidth up to 640Gb/sec with word width up to 576b
• Only requires 32 pins to connect to FPGA - simplifies board signal routing
• Direct connect to INTEL (Altera) and XILINX FPGAs
• MoSys supplied FPGA RTL memory controller
• Base product is LESS THAN $200 in volume

• QPR4 IC
  • DEEP MODE - 4 SRAMs of 2M x 72b
  • WIDE MODE - 8 SRAMS of 1M x72b
• QPR8 IC
  • DEEP MODE - 4 SRAMs of 4M x 72b
  • WIDE MODE - 8 SRAMSs of 2M x72b




Multilane launches OSFP 800G Interconnect develop kit

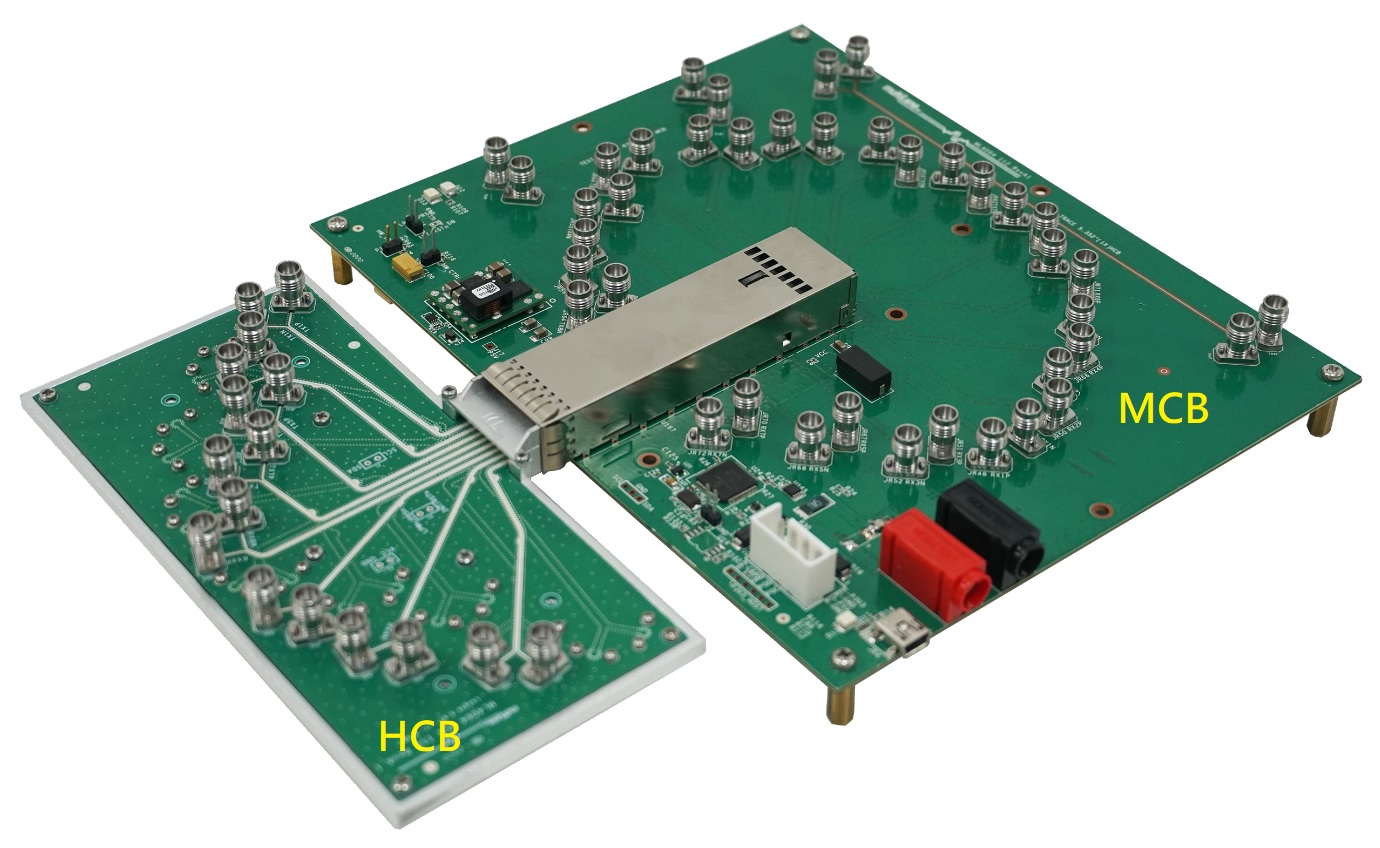

Due to the ever-increasing bandwidth demand of hyperscale data centers, the transition to 400G Ethernet is now in full swing and the industry is already planning for the next phase of 800G. OSFP is one of the leading multi-source agreements to drive the development of 800G interconnectivity and MultiLane provides an OSFP development kit that includes a module compliance board, host compliance board and loopback module.

The OSFP development kit is an essential tool that enables the testing of 800G OSFP products. The module compliance board (MCB) is used to test transceivers, AOCs, and DACs. The host compliance board (HCB) enables the testing of system host ports, and the loopback modules (LB) provide an economical way to exercise system ports during R&D validation, production testing, and field testing.

1. 800G OSFP MCB -- ML4064-MCB-112
2. 800G OSFP HCB -- ML4064-HCB-112
3. 800G OSFP Loopback -- ML4064-LB-112

** 800G QSFP-DD-112 will released shortly. We will keep you update.

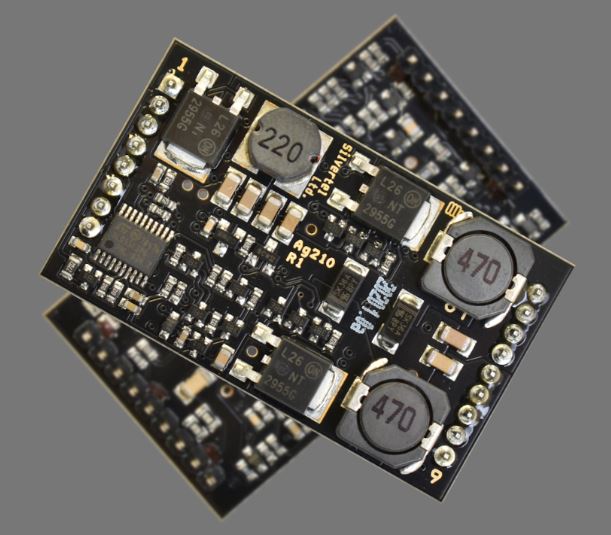

Smart Lighting PoE-LED Driver, Ag210

Silvertel’s Ag210 IEEE compliant PD module is designed to combine high power LED lighting applications with PoE connectivity. Conforming to the latest IEEE802.3bt Power-over-Ethernet (PoE) standard the module provides an easily implemented solution for Designers/Integrators of LED lighting systems. The Ag210 is pre-configured as a Type 3 Class 6 PD device and capable of extracting a minimum of 40W (measured at the module output) from the PSE.

Available as a DIL package, the module provides ease of integration using minimal external low cost components. Ag210 accepts power from all four pairs of the Cat 5e/6a Ethernet cable. An integrated, high efficiency DC/DC converter provides a regulated output with built-in protection against overload and short-circuit.

Key Features:

• IEEE802.3bt compliant
• Type 3 Class 6 PoE PD
• Compact DIL package - 51mm(L) x 30mm(W)
• Overload, thermal & short-circuit protection
• Input voltage range (44-57V)
• User-configurable constant current output from 350mA-1000mA
• Separate auxiliary DC user-configurable output
• High efficiency DC/DC conversion
• v1-10V Analogue dimming control
• Integral I2C Control
• Minimal (low cost) external components required

Silvertel can provide all the assistance and support required, although the modules have been engineered such that the simple addition of a single recommended coil to each of the transmit and receive power modules completes the functional design of the system.

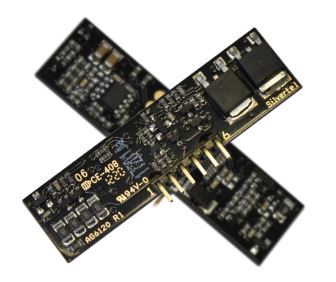

A 3-in-1 PSE supported module, Ag6120

The Ag6120 is a single channel, small package SIL PSE module, designed to inject power into conventional twisted pair Category 5 Ethernet cables. Ag6120S modules are compatible with IEEE 802.3af POE, 802.3at PoE+ and 802.3bt devices and PD modules (e.g. Ag9800, Ag5300 or Ag5810).

The PoE power provided by your unit can be used to supply various types of connected Ethernet equipment, such as Mobile Radio Communications Equipment, VoIP phones, IP cameras and Door Access controllers.

Key Features:

• IEEE802.3af, at & BT compatible
• Small SIL Footprint-53mm(L)x 7mm(W)x 14mm(H)
• Over Current & Short Circuit Protection
• Signature & Class recognition
• Programmable 19W - 75W Output Supply limit
• IEEE802.3bt reduced MPS for lower power standby
• Very Low Power Dissipation (98% efficient)
• Industrial Temperature
• Simple integration

Silvertel can provide all the assistance and support required, although the modules have been engineered such that the simple addition of a single recommended coil to each of the transmit and receive power modules completes the functional design of the system.
