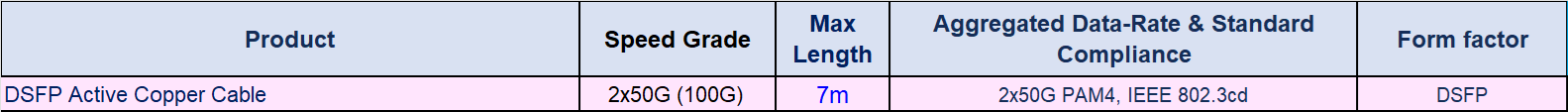

DSFP Form factor ACC Solution

We provide DSFP form factor Active Copper Cables (ACC) at 2x50G speeds. This basic product spec. as below : :
  1. Transmission data rate up to PAM4 56Gbpsper channel
  2. 2-channel architecture, Trunk cables are available
  3. Low power consumption, meeting <0.15W per activechannels
  4. Fully preserves effects of transmit pre-emphasis or amplitude adjustments
  5. Maximum link length up to 7m
  6. Supporting One-Time Programable
  7. Built-in EEPROM functions
  8. 3.3V Power supply
  9. Independent equalization setting and standby control
  10. Compliant with different specification standards according to the rate. IEEE802.3cd
  11. Good Signal Integrity, Low Insetrion loss and Low Cross talk
  12. ​Operating Temperature Range : 0℃~70℃
  13. RoHS2.0 compliant
​


Applications :
  • 100G Ethernet
  • Data Centre -- Servers, Network Switches & Storage
