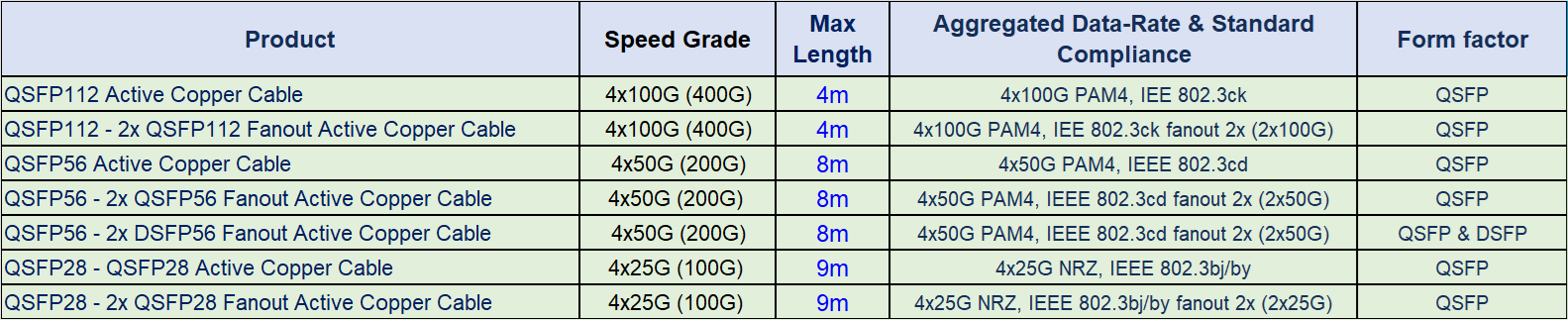

We provide QSFP form factor Active Copper Cables (ACC) with different speeds. This series of products covers :
- Per channel rate : 25Gb/s, 50Gb/s & 100Gb/s
- Transmission data rate up to NRZ25Gbps & PAM4 56Gbps/112Gbps per channel
- 4-channel architecture, Trunk & fanout types of cables are available, and the fanout end of the cable can support different MSA standard form factors. (QSFP & DSFP)
- Low power consumption, meeting 1.5W module LP mode
- Linear PAM4 programmable equalizer optimized for 25GBaud/56GBaud copper link up to max length 9/8 m
- Fully preserves effects of transmit pre-emphasis or amplitude adjustments
- Low latency
- Supports device programming by MCU with I2C
- Operates from a single 3.3V power supply with an integrated Power on reset (POR)
- Compliant with different specification standards according to the rate. IEEE802.3cd , 802.3ck & 802.3bj/by
- Good Signal Integrity, Low Insetrion loss and Low Cross talk
- Operating Temperature Range : 0℃~70℃
- RoHS2.0 compliant
Applications :
Applications :
- 100G/200G/400G Ethernet
- InfiniBand NDR/HDR/EDR
- Data Centre -- Servers, Network Switches & Storage
