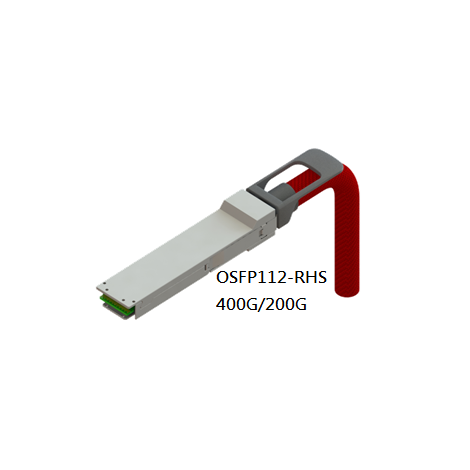

OSFP Form factor ACC Solution

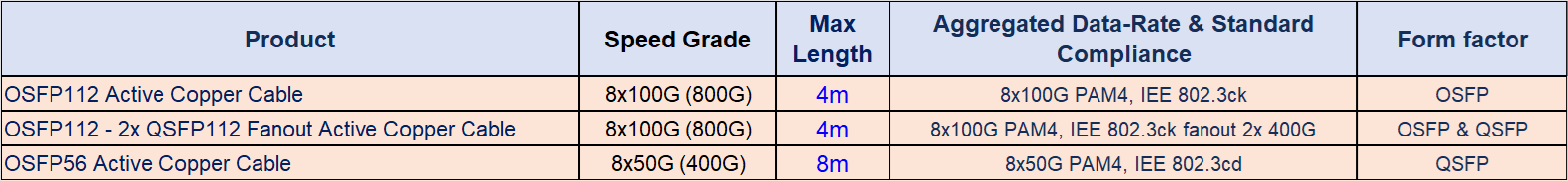

We provide OSFP form factor Active Copper Cables (ACC) with different speeds. This series of products covers :
  1. Per channel rate : 50Gb/s & 100Gb/s
  2. Transmission data rate up to PAM4 56Gbps/112Gbps per channel
  3. 8-channel architecture, Trunk & fanout types of cables are available, and the fanout end of the cable can support different MSA standard form factors. (OSFP, OSFP-RHS & QSFP)
  4. Low power consumption, meeting 1.5W module LP mode
  5. Linear PAM4 programmable equalizer optimized for 56GBaud copper link up to max length 4m on 26awg
  6. Enables a transparent ACC solution meeting all IEEE 400GBASE-CR4 Auto-Negotiation and Link Training
  7. Low latency
  8. Supports device programming by MCU with I2C
  9. Operates from a single 3.3V power supply with an integrated Power on reset (POR)
  10. Compliant with different specification standards according to the rate. IEEE802.3cd & 802.3ck
  11. Good Signal Integrity, Low Insetrion loss and Low Cross talk
  12. ​Operating Temperature Range : 0℃~70℃
  13. RoHS2.0 compliant
​

Applications :
  • 400G/800G Ethernet
  • InfiniBand NDR/HDR
  • Data Centre -- Servers, Network Switches & Storage
