PCBA with SilverTel's PD Modules

In view of the miniaturisation of PD modules, Silicon Power has launched the PCBA with SilverTel's PD modules in order to simplify the user's product application. This eliminates the need to re-design existing boards to integrate PoE-related devices for products that require PoE PD. The POE-PDA product is built into the device, turning it into a network application that supports IEEE802.3af/at/bt power. This saves customers from the lengthy process of redesigning their products.

PoE-PDA series PD PCBAs work with IEEE 802.3af/at & bt compliant PSE powered devices (i.e., PoE Injector/Intermediate or PoE Switch/Terminal), which support 1Gbps data transfer rate, and separate the data and power from the PSE over CAT-5/5e or higher network cable. It supports Gigabit (1G Bps) data transfer rates, separates data and power from the PSE over CAT-5/5e or higher network cables, and converts the input voltage to a 12-volt DC output with a total output power of up to 24 watts.


Advantage :

Convenient for non-PoE devices, j directly upgrade to PoE-enabled products Cost-effective SilverTel PD modules Support IEEE802.3af/at Support IEEE802.3af/at & bt specification, suitable for different network terminals.

Product Information :

POE-PDA-24xx (24W)  POE-PDA-51xx (51W)
 Spec. :
  • IEEE802.3af/at PD Module , Ag53xx/Ag54xx, on board
  • DC 12V/24V output 24 Watts
  • High Efficiency DC-DC ( Ag5400 : upto 93%)
  • Gigabit data rate
  • Simple integration
  • Overload, short-circuit protection
  • Thermal protection
  • Class 4 IEEE802.3 PD
  • 1500Vdc isolation (input to output)
  • Complete PCBA (W/ Ag5xxx)

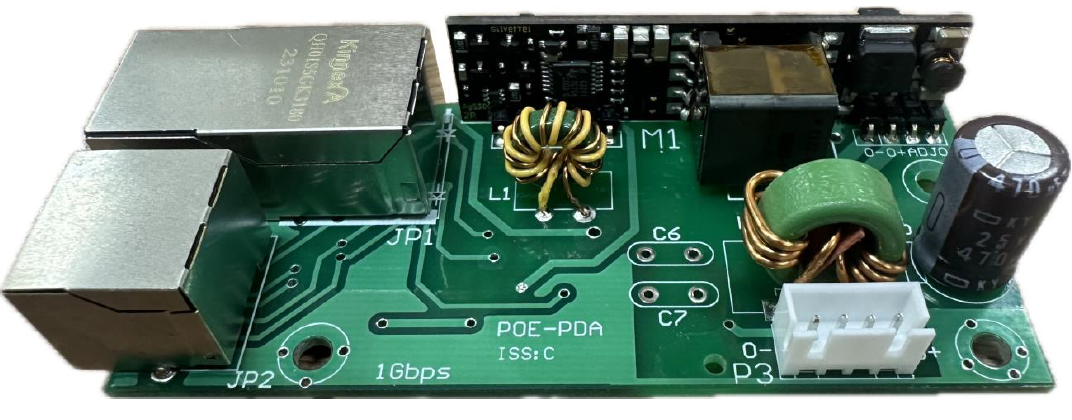

    • 89.5(L) x 39(W) mm
 Spec. :
  • IEEE802.3bt Type 3 Class6 PD Module , Ag59600, on board --
  • DC 41 ~ 57Vdc input (typ. 54Vdc input)
  • DC 12 /24Vdc output (selected modules)
  • 51W Continuous, 60W Peak
  • 93% Peak Efficiency
  • Gigabit data rate
  • Simple integration
  • Overload, short-circuit and thermal
    protection.
  • Complete PCBA (W/ Ag59xxx)

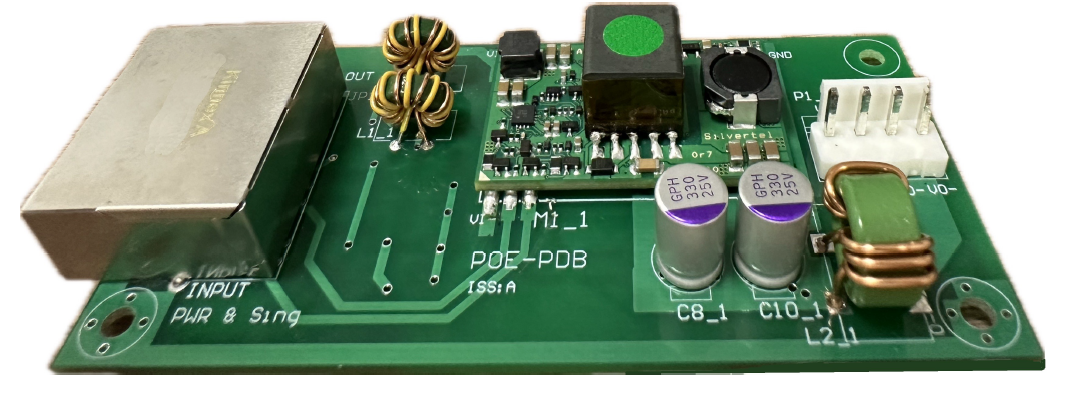

    • 105(L) x 50(W) mm​​

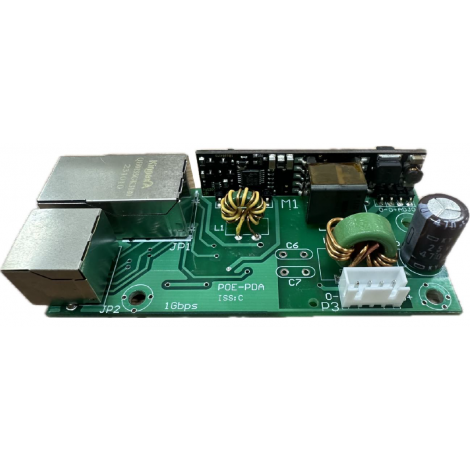

Porudct Pciture

Product Picture

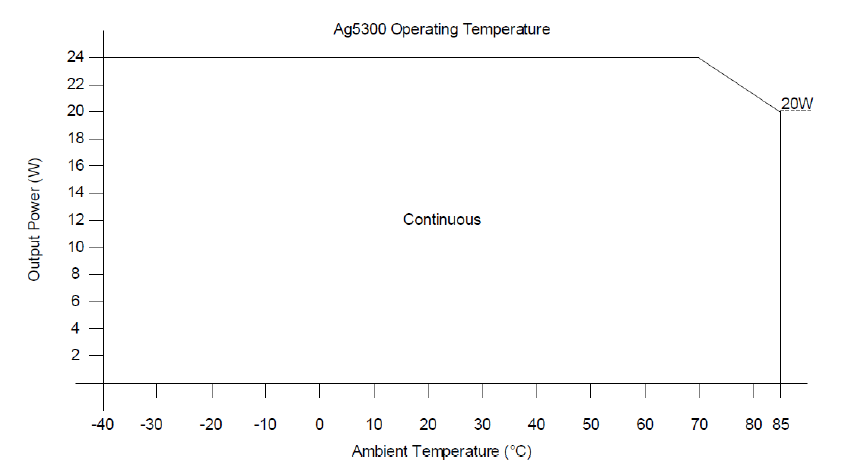

Output Power vs. Working Temp.

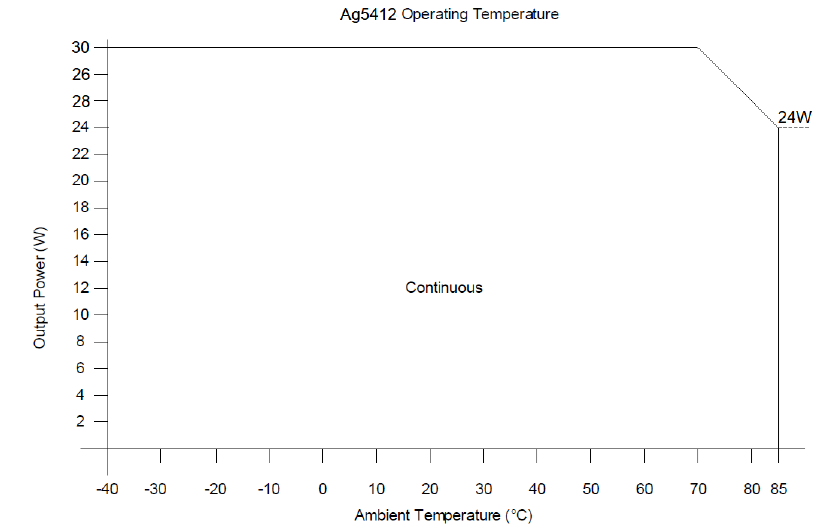

Output Power vs. Working Temp.



     Will update it shortly !!
















Applications :
  • IP Camera
  • Wi-Fi/5G Router
  • IP Phone
  • Access Control
  • POS Cashier
  • Digital Signage
  • Point of Sales System (POS)
  • IoT Gateway
  • Any Network Terminal Device Required 24W or 51W


If you have any needs, please contact us
