IEEE802.3bt Ultra-High Power PoE Injectors (90W/95W/75W) & Splitters (80W/52W)

Power Over Ethernet Solution (PoE)

  1. Products
  2. Power Over Ethernet Solution (PoE)
  3. PoE Solutions - Injector, Splitter, Mid-Span & Solar Power PoE
  4. Ultra High Power PoE_ IEEE802.3bt Compliant
- INFORMATION -
MITS is pleased to launch a series of IEEE802.3bt PoE Injectors & Splitters. This series includes two types of products: AC voltage input and DC voltage input. In the standard 802.3b products, our maximum output power can reach 95W ( POH series).

In terms of the speed of Ethernet to support, it covers 1GBased-T, 2.5GBase-T, and 5GBased-T. The following table lists the products complaints the IEEE8-02.3bt type 3 & 4 based one different power requirements.

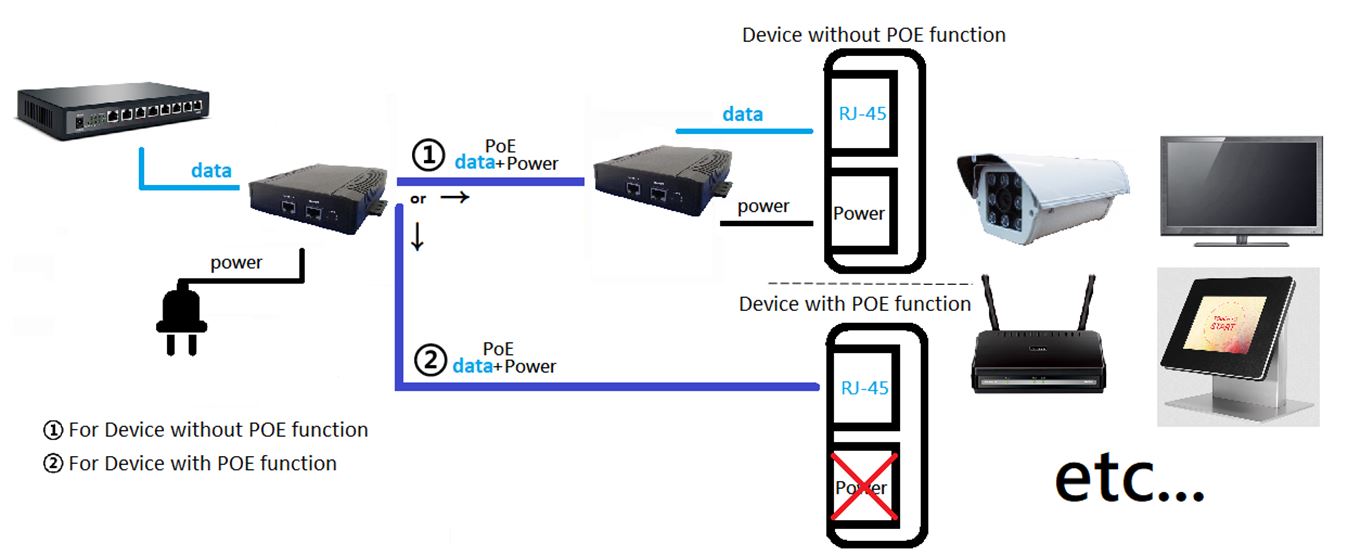

The basic block for PoE as below : (AC input type)



The AC series Injectors + Splitters :

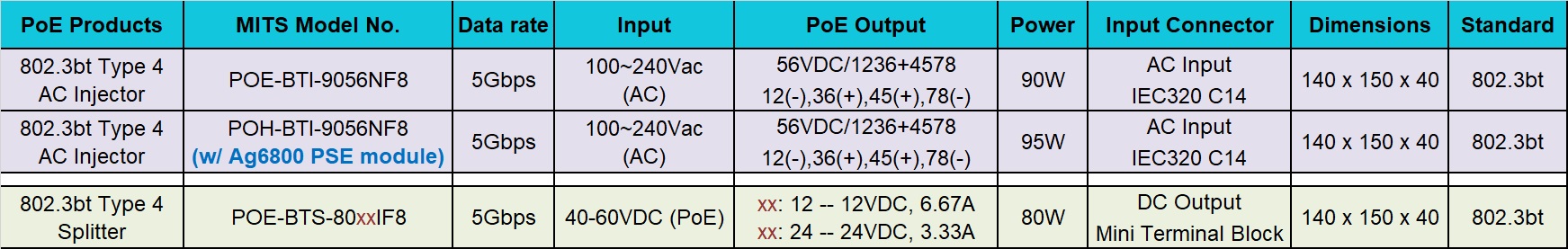

A) 90W Injectors + 80W/71W Type 4 Splitters

Injector: Splitter:
    POE-BTI-9056NF8
  • Operating upto 5Gbps Speed Grade
  • Operation temperature：-40℃ to +70℃
  • Input Current : 0.9A at 120Vac @F.L PF > 0.98                                    0.5A at 230Vac @F.L PF > 0.95
  • Output Power : 90W (1.6A@56Vout)
  • EFFICIENCY : 90% min. at AC 120V Input @F.L
                            90% min. at AC 240V Input @F.L
  • Protection：Short Circuit Protection                               Over Voltage Protection : 58V ~ 60V
           Over Current Limits : 120%~150%  @100V~240Vac
  • EMC : Meet FCC Class A EN55032 Class

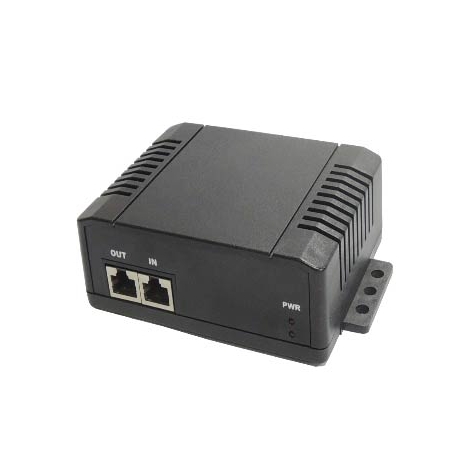

      POE-BTS-80xxIF8
  • xx :
    • 12 - 12Vdc output @6.67A
    • 24 - 24Vdc output @ 3.34A
  • Operating upto 5Gbps Speed Grade
  • Operation temperature：-40℃ to 70℃
  • Input Voltage : 40Vdc ~ 60Vdc, 56Vdc (normal)
  • Output power : 80W
  • Efficiency：85% min. at DC 56V input
  • Protection：Short Circuit Protection/Over Load Protection
  • 1500Vac Isolation voltage
     POH-BTI-9556NF8
  • Based on Ag6800 PSE module
  • Operating upto 5Gbps Speed Grade
  • Operation temperature：-40℃ to +70℃
  • Input Current : 0.91A at 120Vac @F.L PF > 0.98                                  0.51A at 230Vac @F.L PF > 0.95
  • Output Power : 95W (1.7A@56Vout)
  • EFFICIENCY : 90% min. at AC 120V Input @F.L
                            90% min. at AC 240V Input @F.    L
  • Protection：Short Circuit Protection                               Over Voltage Protection : 58V ~ 60V
           Over Current Limits : 95~100W @100V~240Vac
  • EMC : Meet FCC Class A EN55032 Class A

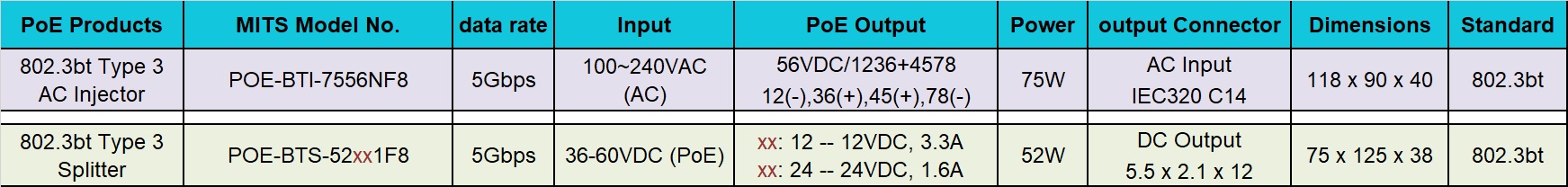

B) 75W Injector + 52W Type 3 Splitter

Injector: Splitter
     POE-BTI-7556NF8
  • Operating upto 5Gbps Speed Grade
  • Operation temperature：-40℃ to +70℃
  • Input Current : 1.21A at 120Vac @F.L                                                   0.78A at 230Vac @F.L
  • Output Power : 75W (1.34A@56Vout)
  • EFFICIENCY : 88% min. at AC 120V Input @F.L.
  • Protection：Short Circuit Protection                           Over Voltage Protection : 59V ~ 65V
  • EMC : Meet FCC Class A EN55032 Class  A

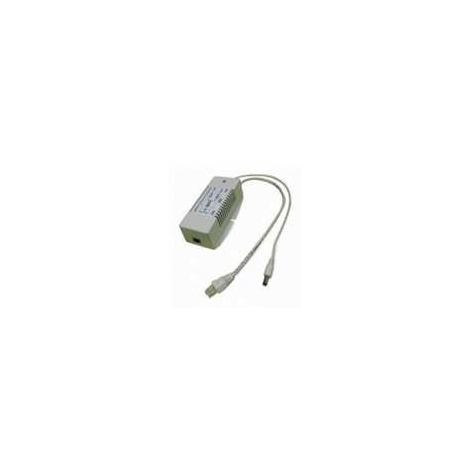

      POE-BTS-52xxID8
  • xx :
    • 12 - 12Vdc output @4.34A
    • 24 - 24Vdc output @ 2.17A
  • Operating at 5Gbps Speed Grade
  • Operation temperature：-40℃ to 70℃
  • Input Voltage: 40Vdc ~58Vdc,  NORMAL= 48V
    • 1.53A at 40Vdc @ Full load
    • 1.28A at 48Vdc @ Full Load
    • 1.06A at 58Vdc @ Full Load
  • Out power : 52W
  • Efficiency：80% min. at 48Vdc input
  • Protection：Short Circuit Protection/Over Load Protection
  • Max. Load : 150% overload
  • 1500Vac Isolation voltage

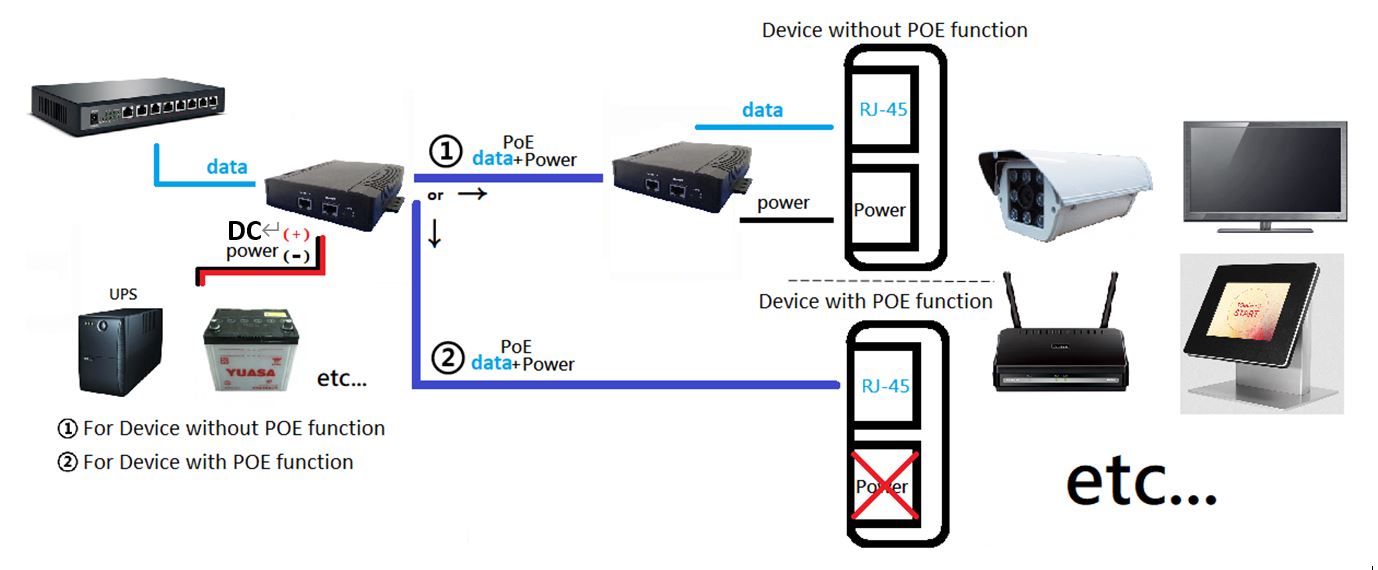

The basic block for PoE as below : (DC input type)



The DC series Injectors + Splitters :

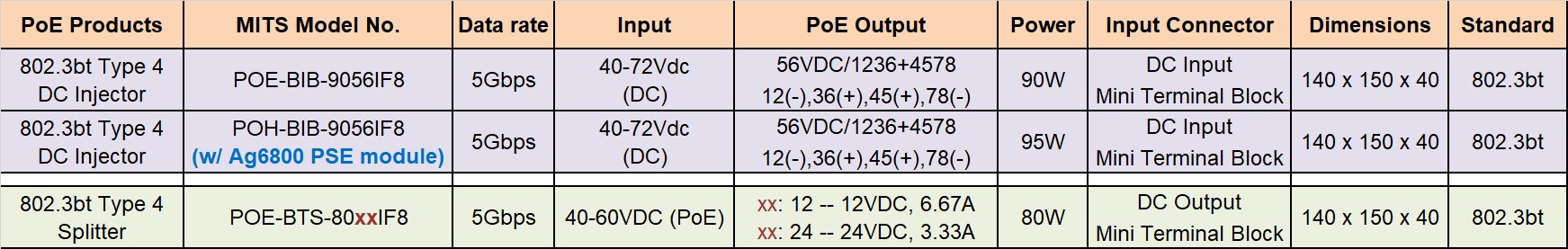

A) 90W Injectors + 80W/71W Type 4 Splitters

Injector: Splitter:

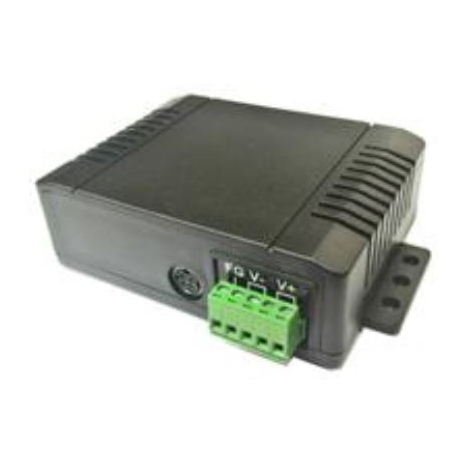

     POE-BIB-9056IF8
  • Operating upto 5Gbps Speed Grade
  • Operation temperature：-40℃ to +70℃
  • Input Current:
    • 2.60A at 40Vdc @ Full Load
    • 1.9 A at 56Vdc @ Full Load
    • 1.5 A at 72Vdc @ Full Load
  • Output Power : 90W (1.61A@56Vout)
  • Efficiency ：80% min. at Full-load @ 40Vdc~72Vdc Input Voltage
  • Protection：Short Circuit Protection/Over Voltage Protection/ Over Current Limits
      POE-BTS-80xxIF8
  • xx :
    • 12 - 12Vdc output @6.67A
    • 24 - 24Vdc output @ 3.34A
  • Operating upto 5Gbps Speed Grade
  • Operation temperature：-40℃ to 70℃
  • Input Voltage : 40Vdc ~ 60Vdc, 56Vdc (normal)
  • Output power : 80W
  •
  • Efficiency：85% min. at DC 56V input
  • Protection：Short Circuit Protection/Over Load Protection
  • 1500Vac Isolation voltage
     POE-BIB-956IF8
  • Based on Ag6800 PSe module
  • Operating upto 5Gbps Speed Grade
  • Operation temperature：-40℃ to +70℃
  • Input Current:
    • 2.60A at 40Vdc @ Full Load
    • 1.85 A at 56Vdc @ Full Load
    • 1.44 A at 72Vdc @ Full Load
  • Output Power : 95W (1.7A@56Vout)
  • Efficiency ：87% min. at Full-load @ 40Vdc~72Vdc Input Voltage
  • Protection：Short Circuit Protection/Over Voltage Protection/ Over Current Limits

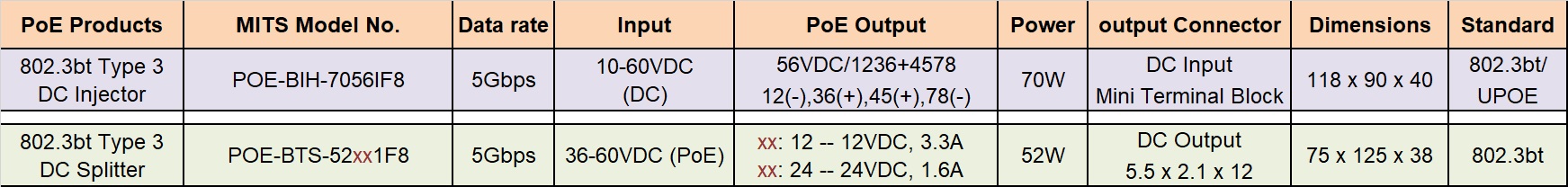

B) 75W Injector + 52W Type 3 Splitter

Injector: Splitter:
     POE-BIH-7056IF8
  • Operating upto 5Gbps Speed Grade
  • Operation temperature：-40℃ to +70℃
  • Input Voltage : 10Vdc ~ 60Vdc
    • 8.17A @10Vin at full load
    • 6.72A @12Vin at full load
    • 3.29A @24Vin at full load
    • 1.61A @48Vin at full load
    • 1.30A @60Vin at full load
  • Output Power : 70W (1.25A@ 56Vdc)
  • Efficiency ：85% min. at Full-load @ 10Vdc~60Vdc Input Voltage
  • Protection：
    • Short Circuit Protection
    • Input Over low Voltage Protection : 8V-9V Turn-Off input
    • Over Current Limits : 110%~120% @ all DC  input F.L.
     POE-BTS-52xxID8
  • xx :
    • 12 - 12Vdc output @4.34A
    • 24 - 24Vdc output @ 2.17A
  • Operating at 5Gbps Speed Grade
  • Operation temperature：-40℃ to 70℃
  • Input Voltage: 40Vdc ~58Vdc,  NORMAL= 48V
    • 1.53A at 40Vdc @ Full load
    • 1.28A at 48Vdc @ Full Load
    • 1.06A at 58Vdc @ Full Load
  • Out power : 52W
  • Efficiency：80% min. at 48Vdc input
  • Protection：Short Circuit Protection/Over Load Protection
  • Max. Load : 150% overload
  • 1500Vac Isolation voltage
