In order to ensure fast Ethernet modulation signal quality, different than the traditional Switch network that always with several extenders, the LRE-0103X-F breaks the existing 100-meter Ethernet transmission limitation. Just use the LRE-0103X-F as end to end Ethernet connection, it can easily to make the transmission distance up to 500 meters at 100Mbps bandwidth. It does help the installer reduces the effort and make their life easier.
Compare with VDSL Based LRE, LRE-0103X-F with our in-house technology which provides the better performance and almost “Zero”link time.
Applications :
- Full HD IP surveillance network
- 2K/4K Video transmission
- WiFi AP hotspot
- Industry 4.0 AIOT / IIOT
- …etc.
- The uplink provides two connection interfaces: RJ-45 (Cat 5e/Cat 6) and BNC (Coax cable)
- The uplink is compatible with standard network equipment at the other end
- The Uplink Signal interface also built-in feeding power Transmission speed can be automatically adjusted:
- Use Cat5e/Cat6 or RG59 Coaxial cables support upto 500 meters (1,640 feet), transmission speed can reach 100 / 100Mbps (Data)
- With optional power adaptor, it support feeding power capability. (Data + Remote Power Feeding
- No need extenders and plug-n-play
- No need install driver, Compatible with standard network OSI Layer 7 protocol.
- Auto-MDIX and Auto-sensing 10Base-T or 100Base-TX and Full or Half-Duplex on the Ethernet ports.
- Support Full HD/4K IP Surveillance Camera various protocols
- Link connection status
- Build in Watch Dog Function, to provide the Trunk Link path controller also provide device protection and connecting status .
- One more backup DC power input
- Working Temp. : -20℃ ~ 70℃

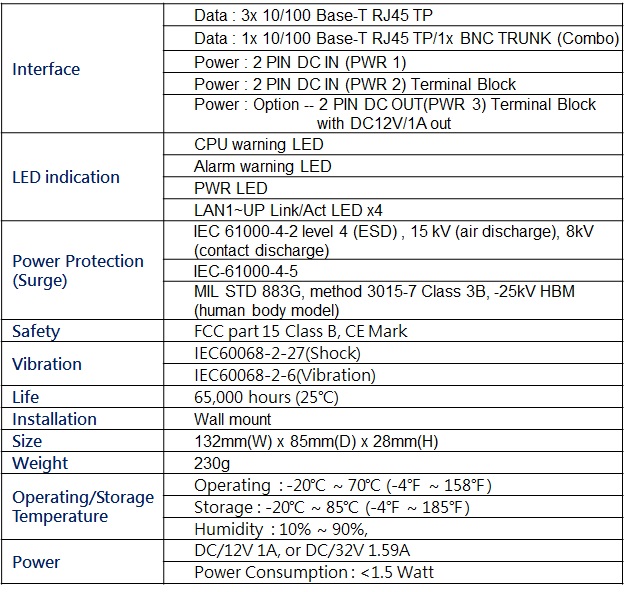

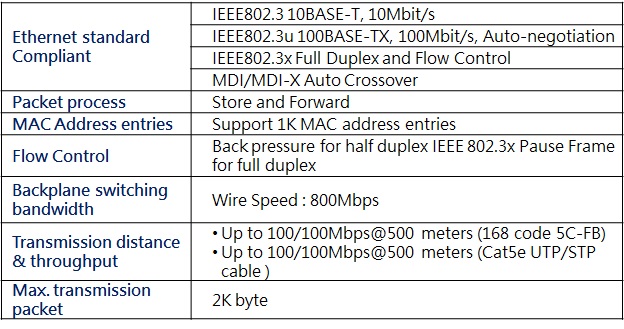

Ethernet Spec.
