The outdoor cable assemblies make the fiber optical connector can connect the device in the in rugged outdoor or industrial environments. It can meet the industrial standard and the requirement from the customer. Also provides the protecting from the environment and ensure the device continues performance. Variety of connectors from single channel to multi-channel which using the MT ferrule are available.
Fetures :
- Meets IP68 specifications
- Single-mode and multimode versions are available
- Fiber counts from simplex up to 24
- Guide structure to ensure the precision and prevent the mishandling
- Mechanical sealing without shrink tube to avoid sealing failure and improve the production efficiency

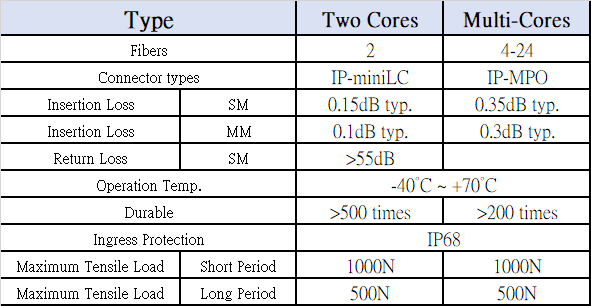

Basic Specification :
.png)
Applications :

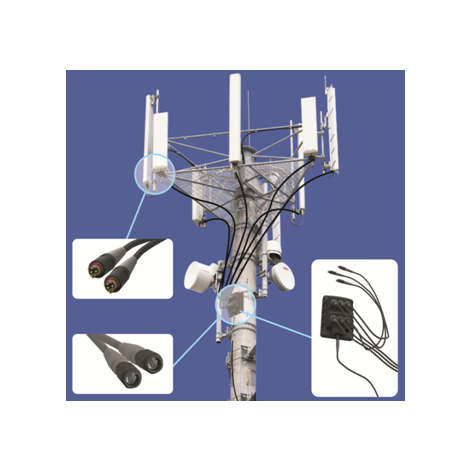

- Telecommunications, especially the base stations and wireless antennas.
- Traffic communications such as the subway and the security cameras.

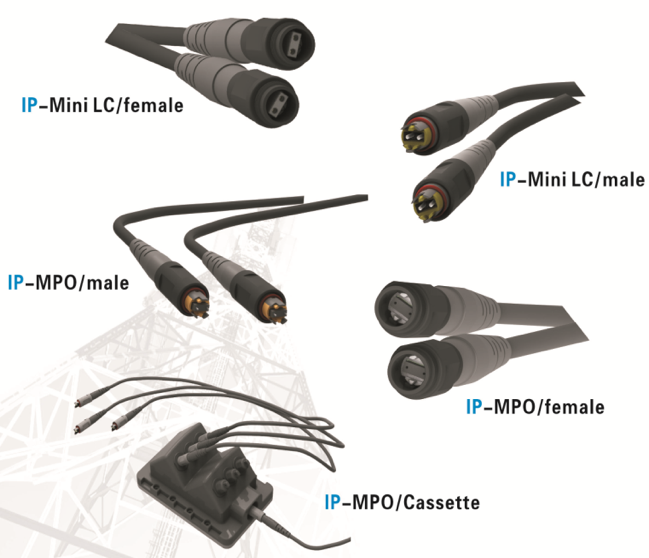

Products :

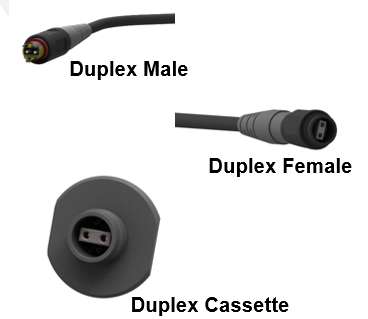

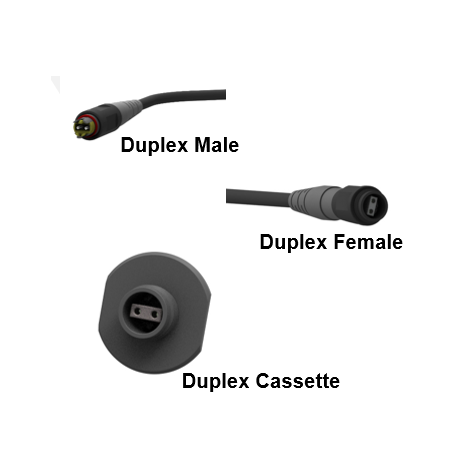

1. Outdoor Duplex Cable Assembly
Product description
Product description
- Small OD connector: 14mm for duct installation
- 2 fiber configurations, 1.25mm ceramic ferrule
- Meets IP68 specifications
- Threaded mating style
- Guide structure to ensure the precision and prevent the mishandling
- Mechanical sealing without shrink tube to avoid sealing failure and improve the production efficiency
- Better cable management by using the round cable.
Performance
- Insertion Loss: Multimode 0.10dB Typ. Singlemode 0.15dB Typ.
- Return Loss: Multimode ≤ -25dB Singlemode ≤ -55dB
- Operating Temperature: -40 to +70°C
- Durability: >500 cycle
- Tensile force: 400N for long term and 800N for short term

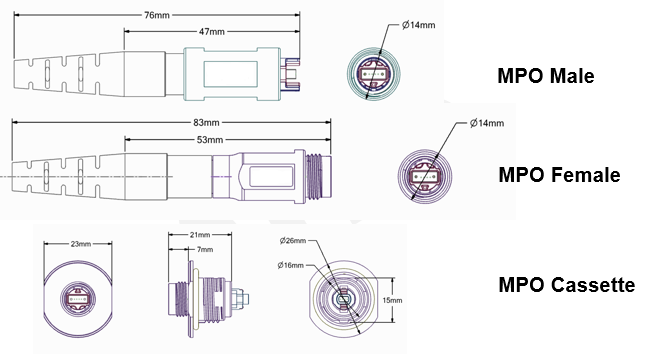

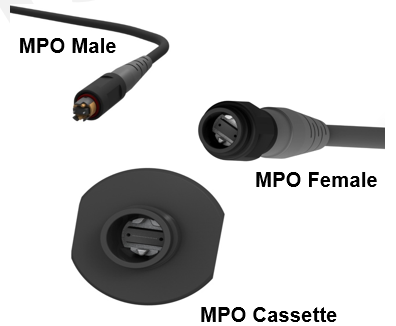

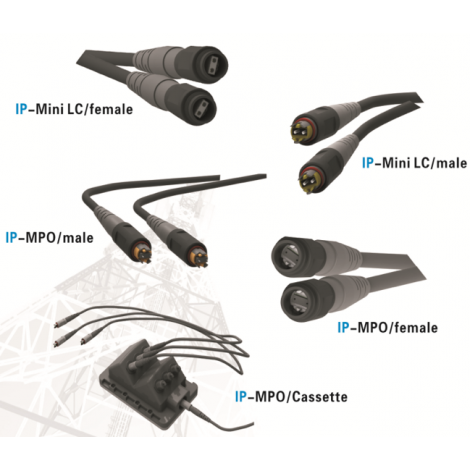

2. Outdoor MPO Cable Assembly
Product Description
Product Description
- Fiber counts range from 4 to 24 fibers. Offer a high-density connector
- Meets IP68 specifications
- Threaded mating style
- Guide structure to ensure the precision and prevent the mishandling
- Mechanical sealing without shrink tube to avoid sealing failure and improve the production efficiency
- Better cable management by using the round cable
.PNG)
Performance
- Insertion Loss: Multimode 0.3 dB Typ. Singlemode 0.35dB Typ.
- Return Loss: Multimode ≤ -25dB Singlemode ≤ -55dB
- Operating Temperature: -40 to +70°C
- Durability: >200 cycle
- Tensile force: 400N for long term and 800N for short term

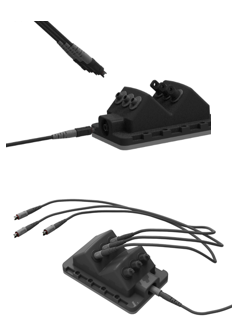

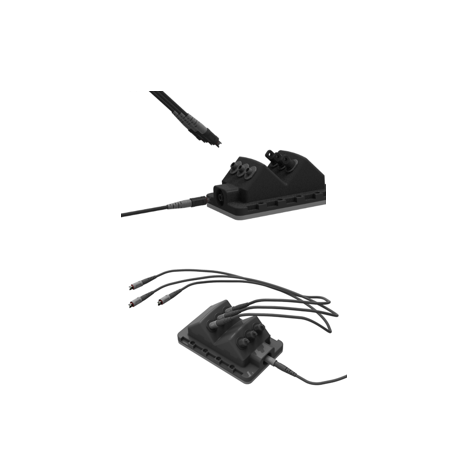

3. Outdoor Multi-Channel Distribution
Product Description
Product Description
- Quickly installation and easily development
- High quality and reliability with factory-terminated.
- liminates need for field termination, improving reliability and speed of deployment
- Meets IP68 specifications
- Fiber counts up to 12 fibers

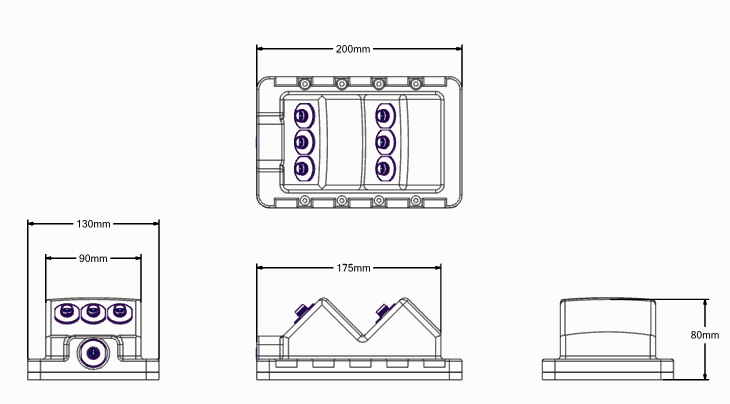

Pictures and Drawing
