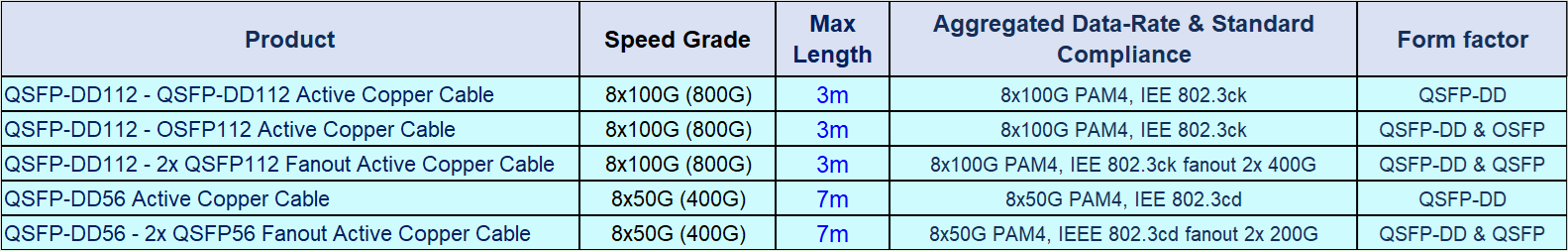

We provide QSFP-DD form factor Active Copper Cables (ACC) with different speeds. This series of products covers :
- Per channel rate : 50Gb/s & 100Gb/s
- Transmission data rate up to PAM4 56Gbps/112Gbps per channel
- 8-channel architecture, Trunk & fanout types of cables are available, and the fanout end of the cable can support different MSA standard form factors. (QSFP-DD, OSFP, OSFP-RHS & QSFP)
- Low power consumption, meeting 1.5W module LP mode
- Linear PAM4 programmable equalizer optimized for 56GBaud copper link up to max length 7m
- Fully preserves effects of transmit pre-emphasis or amplitude adjustments
- Low latency
- Supports device programming by MCU with I2C
- Operates from a single 3.3V power supply with an integrated Power on reset (POR)
- Compliant with different specification standards according to the rate. IEEE802.3cd & 802.3ck
- Good Signal Integrity, Low Insetrion loss and Low Cross talk
- Operating Temperature Range : 0℃~70℃
- RoHS2.0 compliant
.png)
Applications :
Applications :
- 200G/400G/800G Ethernet
- InfiniBand NDR/HDR
- Data Centre -- Servers, Network Switches & Storage
