- INFORMATION -

The POE-Tester is an simple to use product to ensure your PoE device is compatible with POE standard or not. It supports IEEE802.3 af/at/bt. Either Mode A (thru pin 1,2,3 & 6) or Mode B (4,5,7 & 8) that we can easier to detect. It should be good for people who didn't know the device is support PoE or not, also good for qucik detect for on-site person have some debugging.


Features
  • Passive detection for IEEE802.3af/at/bt standard
  • Small size and aggressive price

Spec.
  1. Interface:  RJ-45 connector
  2. Power Input: IEEE 802.3af/at compliant with voltage 40~57V
  3. Detection: IEEE 802.3af/at & 4 pairs PSE
  4. Dimensions (PCB only): 24mm(W) x 72mm(D) x 23mm(H)
  5. Weight: 16g
  6. Operating Temperature & Humidity: -20 ~60°C, 90%RH non-condensing
  7. Storage Temperature & Humidity: --40 ~70°C, 95%RH non-condensing

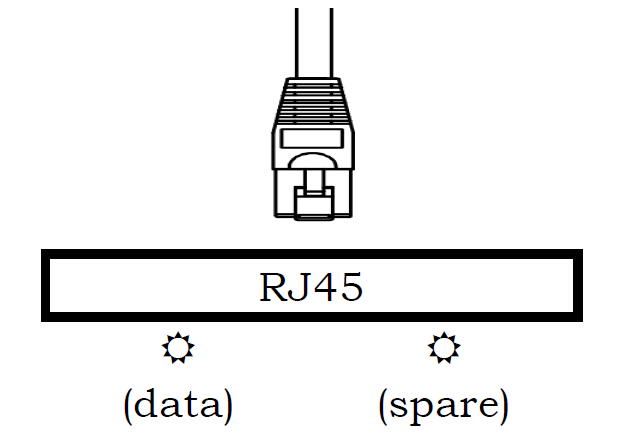

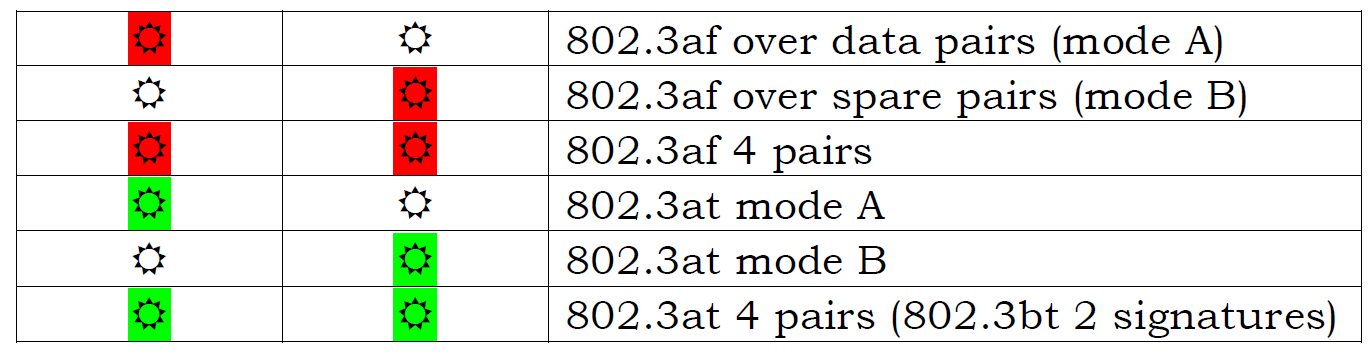

  8. LED indicators:
    • Off – no PoE detect
    • Red – IEEE802.3af PSE detect
    • Green – IEEE802.3at PSE detect
