The 200G QSFP56 DAC (Data Attached Cable) provides robust connections for 200G Ethernet and InfiniBand products. QSFP56 DAC cable consists of four lanes and each lane at data rates can up to 50Gb/s (PAM4). The QSFP56 cables are compliant with SFF-8665 QSFP56 standard specifications and provide connectivity between devices using QSFP56 ports. Each QSFP56 port comprises an EEPROM which can be read thru I2C interface.
Features :
- 4-channel full-duplex passive copper cable with QSFP56 form factor
- IEEE802.3cd 200Gbase-CR4 MSA Compliant
- Up to 200Gb/s data rate (4 x 50Gb/s)
- SFF-8665 compliant QSFP56 connectors
- SFF-8636 compliant I2C management interface
- Good signal integrity, low insertion loss and low crosstalk
- Operating Case Temperature: 0℃~70℃
- Single 3.3V supply voltage
- Copper Link Length : 0.5m, 1m, 1.5m, 2m, 2.5m
Applications :
- 200GEthernet/200GBASE-CR4
- InfiniBandHDR
- SAS，Server，Hub，Router & Switched.

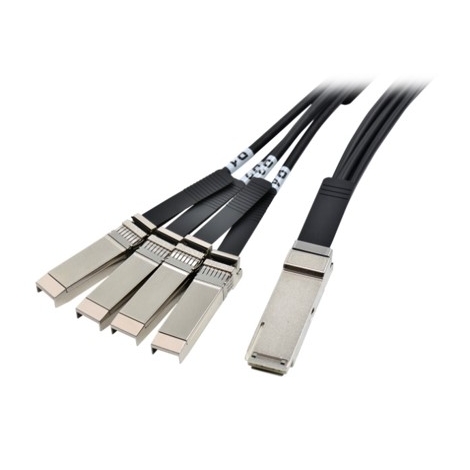

200G QSFP56 Fanout 4x SFP56 DAC Cable
The 200G QSFP56 to 4x 50G SFP56 DAC (Data Attached Cable) provides robust connections for 200G Ethernet and InfiniBand products. The DAC cables are compliant with QSFP56 MSA and SFP56 MSA standard and also provide connectivity between system units with a QSFP56 port on one side and four different SFP56 ports on the other.
QSFP56 DAC Fanout cable consists of four lanes and each lane at data rates can up to 50Gb/s (PAM4). The QSFP56 cables are compliant with SFF-8665 QSFP56 standard specifications and provide connectivity between devices using QSFP56 ports. Each QSFP56 & SFP56 ports comprises an EEPROM which can be read the info thru I2C interface.
Features :
Applications :
200G QSFP56 Fanout 4x SFP56 DAC Cable
The 200G QSFP56 to 4x 50G SFP56 DAC (Data Attached Cable) provides robust connections for 200G Ethernet and InfiniBand products. The DAC cables are compliant with QSFP56 MSA and SFP56 MSA standard and also provide connectivity between system units with a QSFP56 port on one side and four different SFP56 ports on the other.
QSFP56 DAC Fanout cable consists of four lanes and each lane at data rates can up to 50Gb/s (PAM4). The QSFP56 cables are compliant with SFF-8665 QSFP56 standard specifications and provide connectivity between devices using QSFP56 ports. Each QSFP56 & SFP56 ports comprises an EEPROM which can be read the info thru I2C interface.
Features :
- 4-channel full-duplex passive copper cable with QSFP56/SFP56 form factor
- IEEE802.3cd 200Gbase-CR4 & 50Gbase-CR Compliant
- Up to 200Gb/s data rate (4 x 50Gb/s)
- SFF-8665 compliant QSFP56 connectors
- SFF-8636 compliant I2C management interface
- Good signal integrity, low insertion loss and low crosstalk
- Operating Case Temperature: 0℃~70℃
- Single 3.3V supply voltage
- Copper Link Length : 0.5m, 1m, 1.5m, 2m, 2.5m
Applications :
- 200Gbase-CR4 & 50Gbase-CR
- SAS，Server，Hub，Router & Switched.
