Optical Distribution Frames (ODF)
The increasing numbers of data centers are now designed and built to run high-speed applications for LAN/SAN. For such kind of applications are based on fiber-optic transmission, and as a result, fiber optical cabling is becoming the predominant transmission media. So how to ensure the efficiency and performance will become a major topics for Data Center cabling (MDA - Main Distribution Area & HDA - Horizontal Distribution Are).
Application Diagram :
Now MITS is also offering two products for Data Center Cabling :

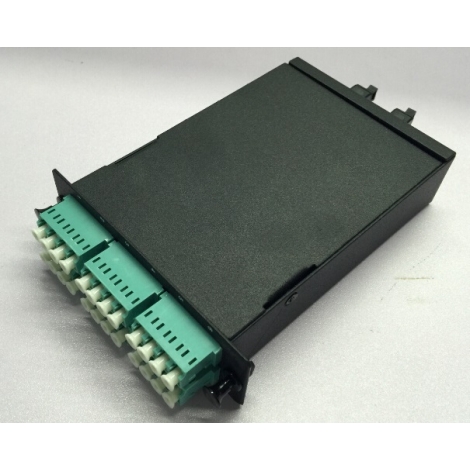

1. MPO/MTP Cassette modules
MPO-LC Cassette module uses a flat polish MPT/MPO and LC/UPC connectors for a low insetion loss. Inside this cassette is a fanout using either multimode (OM3/OM4) or singlemode(SM) fibers.
Spec. :
Drawing :
Ordering info :

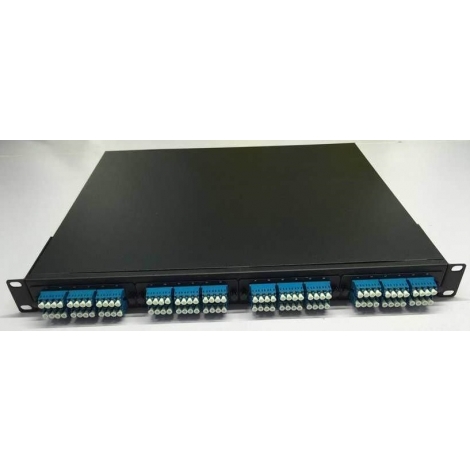

2. MPO/MTP Rackmounted Patch Panels
The rackmounted patch panel is designed to manage and house easy-plug MTP / MPO to LC fiber cassette modules, for connecting plug-and-play pre-terminated high density MTP / MPO Fiber cabling system. This solution contributes to greater network availability that especially suitable for SAN and LAN in Data Center applications. Each easy-plug MTP / MPO to LC cassette is accommodated with a 12/24-fiber MTP / MPO based fiber assemblies, and pre-loaded with LC adapters in different fiber modes for your choices.

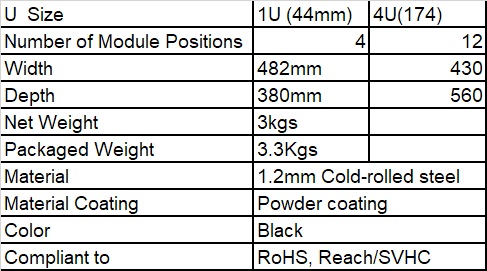

Spec. :
Drawing :
Ordering :
