"Accurate DK, DF and roughness extraction in one click"

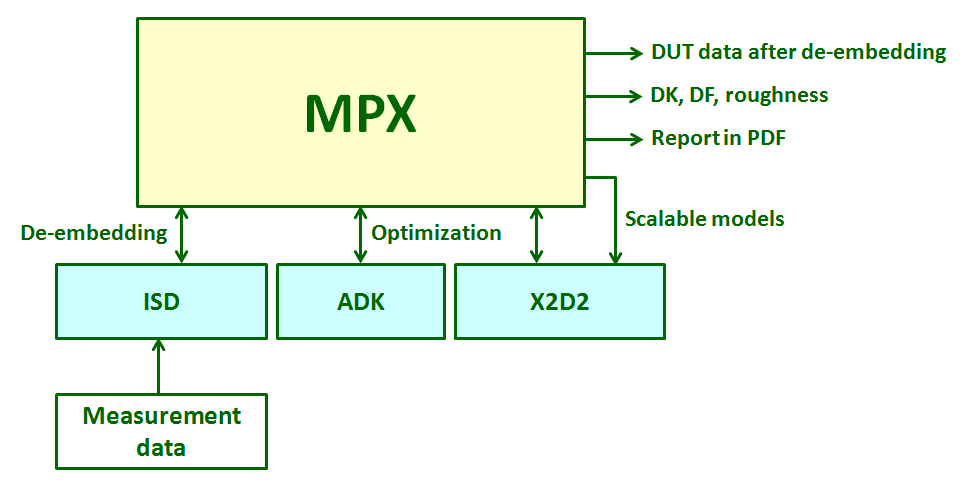

MPX automates de-embedding and material property extraction by invoking ISD, ADK and X2D2 in the background. In just one mouse click, MPX extracts causal DK, DF and surface roughness by matching all IL, RL, NEXT, FEXT and TDR/TDT. (Most other tools only match IL.) Besides generating self-consistent length- and frequency-scalable models, MPX outputs a detailed PDF report. Through MPX, material characterization cannot be made easier.




Fitting all IL, RL, NEXT, FEXT and TDR/TDT

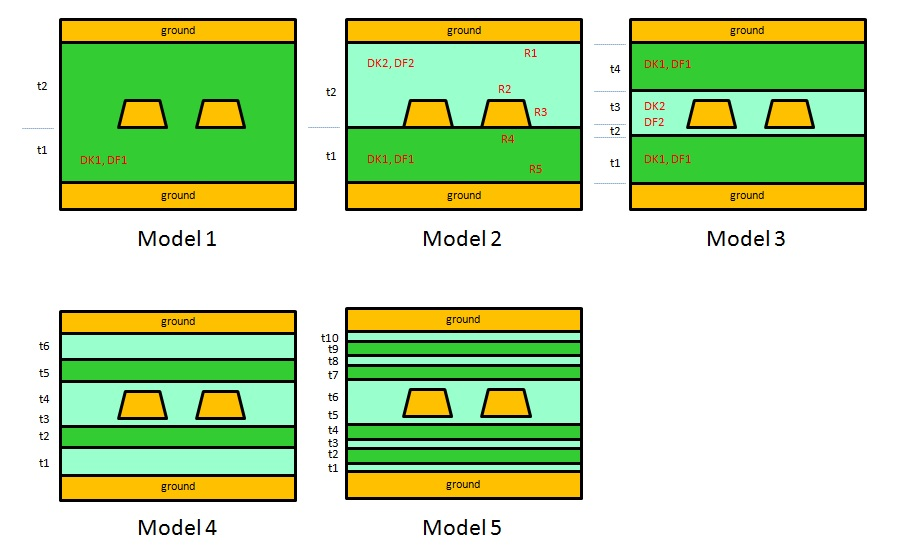

Many models ar available :

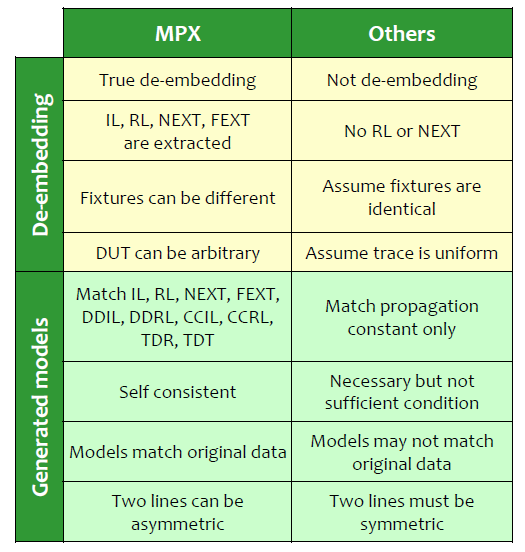

The Comparison betwen MPX & Others :
