The MultiLane QSFP56 Development Kit provides the necessary development tools and reference modules required for the development of QSFP56 based products. This kit is essential for development, testing and characterization of QSFP56 based products. It can also be used for testing 200G CDRs, 200G Gearbox devices, 200G QSFP56 ports on routers and line-cards, electro-optical modules, and QSFP56 active optical cables.

ML4041K-56 MCB QSFP56 Module Compliance Board

The QSFP56 (ML4041K-56) Module Compliance Board uses 40 GHz V-Grooved 2.92 mm K connectors. It is designed to simulate an ideal environment for QSFP56 transceivers module and cable testing, characterization and manufacturing tests. Its properties make the host board as electrically transparent as possible, allowing for a more accurate assessment of the module’s performance.
  • Matched differential trace length
  • DUT voltage supply control (3.15V, 3.3V, 3.45V, or other user specified voltage levels)
  • DUT Current Sense
  • Superior Signal Integrity Performance Rogers 3003 based PCBs
  • Low Insertion Loss
  • Temperature Monitor
  • Four corner test capability
  • Supports 4x56 G interfaces
  • I2C master driven from both on board micro controller or external pin headers
  • USB interface
  • User friendly GUI for I2C R/W commands and loading custom MSA Memory Maps
  • All 4 channels comes with matching trace length 1779 mils
  • On-board LEDs showing MSA output Alarm states

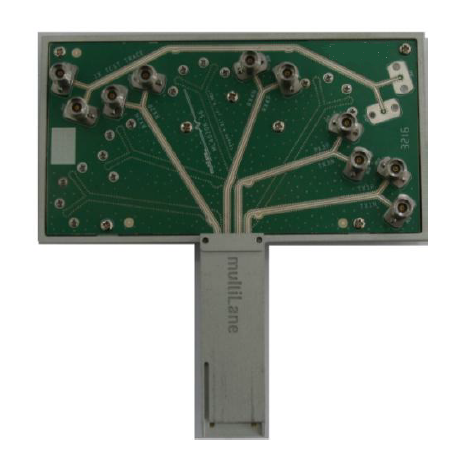

ML4020K-56 HCB QSFP56 Host Compliance Board

The ML4020K-56 simply plugs into a QSFP56 slot and provides access to RX and TX ports through high performance signal integrity breakout path. It comes with 40 GHz V-Grooved 2.92 mm K connectors.
  • High Performance signal integrity traces
  • QSFP56 MSA Form Factor
  • Low Insertion Loss Rogers 3003 based material
  • Production friendly form factor
  • Supports 4x56G TX & RX Lanes
  • High speed signals accessible through40 GHz V-Grooved 2.92 mm K Connector rows
  • All TX and RX channels comes with matching trace length
  • Trace length 4203 mils
