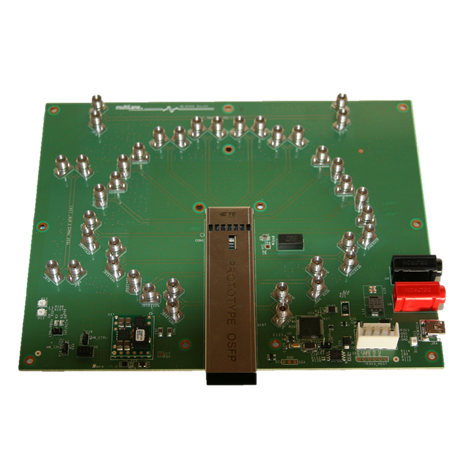

ML4064-MCB 8x50G OSFP Module Compliance Board
- Supports 8x50G interfaces
- I2C master driven from either on-board microcontroller or external pin headers
- 40 GHz 2.92mm or 2.4mm K Connectors
- Current Sense
- Matched differential trace length across all channels
- High performance signal integrity traces from K connectors to OSFP host connector.
- On-board LEDs display MSA output alarm states
- Built with RO3003 PCB Material
- On-board buttons/jumpers for MSA input control signals
- User friendly GUI for I2C R/W commands and loading custom MSA memory maps
- Four corner testing capability
- USB interface

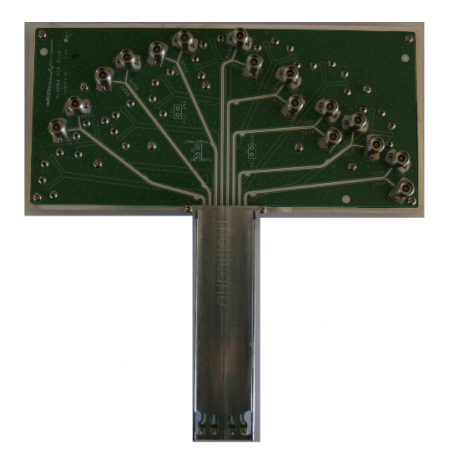

ML4064-HCB OSFP Host Compliance Board
- High Performance signal integrity traces
- OSFP MSA Form Factor
- Same low Insertion Loss for all traces
- Built with high performance PCB material
- Supports 8x50G
- Built with RO3003 PCB Material
- High speed signals accessible through K-Connectors
- 8 channels: 8 TX and the corresponding 8 RX
- Matched trace length 5972.48 mils

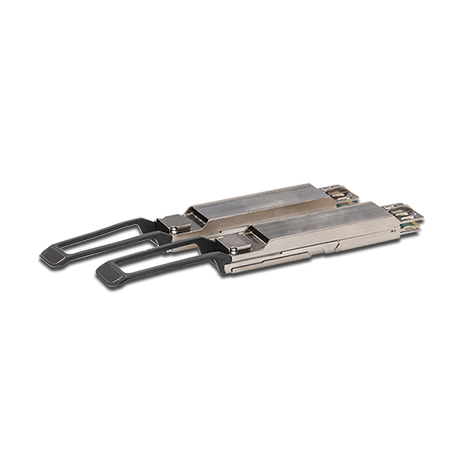

ML4064 OSFP Passive Loopback
- Loops back TX & RX with good performance SI Traces
- Built with advanced PCB Material (Rogers/Megtron)
- MSA Compliant Shell with latching mechanism
- Four thermal spots
- Can emulate all 4 OSFP power classes
- Can dissipate up to 16W via the thermal loads
- Temp sense
- I2C Terminated by microcontroller, I2C slave compliant with MSA
- Implements MSA Memory Map with programmable new pages
- Ability to control/ monitor all low speed signals
- Insertion Counter
- Front LED Indicator
- Hot Pluggable
- Cut-off temperature preventing module overheating
- AC-coupled High Speed Interface
