1G  SFP Optical Transceivers

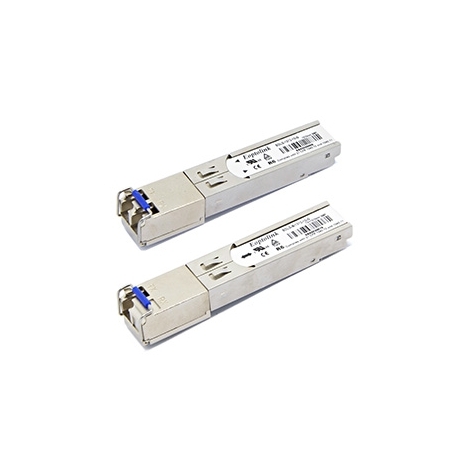

1. 1G SFP

The IEEE 802.3z standard includes 1000BASE-SX for transmission over multi-mode fiber, 1000BASE-LX for transmission over single-mode fiber, 100BASE-FX is a version of Fast Ethernet over optical fiber. It uses a 1300 nm near-infrared (NIR) light wavelength transmitted via two strands of optical fiber, one for receive(RX) and the other for transmit(TX), 100BASE-SX is a version of Fast Ethernet over optical fiber. It uses two strands of multi-mode optical fiber for receive and transmit. Eoptolink is produce complete range for FE and GE optical fiber transceivers.
Features :
  • Operating Data Rate up to 1.25Gbps
  • Up to 160km
  • Single 3.3V Power Supply and LVTTL Logic Interface
  • Hot-Pluggable SFP Footprint Duplex LC Connector
  • Interface Class 1 FDA and IEC60825-1 Laser Safety Compliant
  • Operating Case Temperature Standard: 0°C to 70°C and Industrial:  -40°C to 85°C
  • Compliant with SFP MSA Specification
  • Compliant with SFF-8472
Applications :
  • Gigabit Ethernet Switches and Routers
  • Fiber Channel Switch Infrastructure
  • Other Optical Links
Product list :

a. Fast Ethernet (10/100Mbps) & SONET/SDH (OC-3)
  • EOLS-8502-02D : 155Mbps, 850nm, 2Km, SFP
  • EOLS1303-2M-D : 155Mbps, 1310nm/MM, 2Km, SFP
  • EOLS1303-15/40/80-D : 155Mbps, 1310nm, 15Km/40Km/80Km, SFP
b. Gigabit Ethernet
  • EOLS-8512-02-D : 1.25Gbps, 850nm, 550m, SFP
  • EOLS-1312-2M-D: 1.25Gbps, 1310nm/MM, 2Km, SFP
  • EOLS-1312-10/15/20/40-D : 1.25Gbps, 1310nm, 10Km/15Km/20Km/40Km, SFP
  • EOLS-1512-40/80/A/B/C-D : 1.25Gbps, 1550nm, 40Km/80Km/100Km/120Km/160Km, SFP

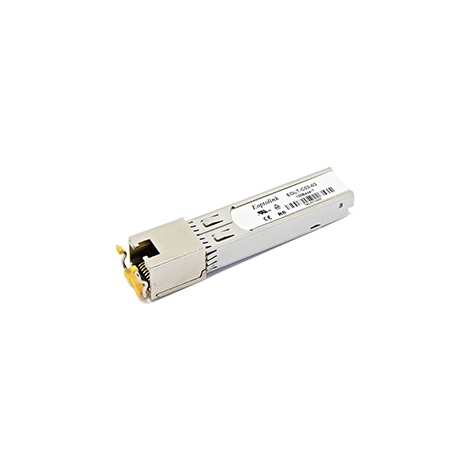

2. Copper SFP Transceivers
Eoptolink 1000BASE-T or 100BASE-T or 10/100/1000BASE-T Autonegotiation can be installed into optical SFP slots enabling an optical Ethernet port (1000Base-X) to be converted into a copper Ethernet port (1000Base-T) either in the field or in production. RJ45 Transceivers are compatible with Gigabit Ethernet and 1000BASE-T standards.
Features :
  • LAN 10/100/1000Base-T
  • Gigabit Ethernet over Cat 5 Cable
  • Switch to Switch Interface
  • Router/Server Interface
Applications :
  • Support 1000BASE-T Operation in Host Systems or 10/100/1000 BASE-T operation in host systems with SGMII interface or 100 BASE-T
  • 100m Reach Over UTP Cat5 Cable
  • Hot-Pluggable SFP Footprint
  • Fully Metallic Enclosure for Low EMI
  • Low Power Dissipation (1.05W Typical)
  • Compact RJ-45 Connector Assembly
  • Access to Physical Layer IC via 2-Wire Serial Bus
  • Detailed Product Information in EEPROM
  • Compliant with SFP MSA
  • Comercial or Industrial case temperature range
  • Compliant with IEEE Std 802.3-2002
Product List :
  • EOLT-C12-02-AI : 10/100/1000Mbps Auto negotiation, Industrial Temp., SFP
  • EOLT-C12-02-EI : 10/100/1000Mbps Auto negotiation, Industrial Temp., LOS Indication, SFP


Eoptolink SGMII SFP is designed for 100BASE-FX applications, with build-in PHY device supporting SGMII interface. The standard serial ID information Compatible with SFP MSA describes the transceiver’s capabilities, standard interfaces, manufacturer and other information. The host equipment can access this information via the 2-wire serial CMOS EEPROM protocol. For further information, please refer to SFP Multi-Source Agreement (MSA). SGMI SFP transceivers are 100BASE-FX Small Form-Factor Pluggable (SFP) Fast Ethernet Interface Converter on Gigabit SFP Ports.
Features :
  • up to 20km transmission with SMF at least
  • Build-in PHY supporting SGMII Interface
  • Support More Link Status Monitor, Such as
  • CRC, Package Counter and Far End Fault Indication(FEFI)
  • Single 3.3V Power Supply and TTL Logic Interface
  • Compliant with SFP MSA package with duplex LC Connector
  • Standard Serial ID information Compliant with SFP MSA
  • Operating Case Temperature Standard: 0°C to 70°C and Industrial: -40°C to 85°C
Applications :
  • 100BASE-FX/1000BASE-LX
  • Switched Backplane Applications
  • Switch to Switch Interface
  • Other Optical Transmission Systems
Product List :
  • EOLS-1303-2M-IG : 100MBps, MM, 2Km, Industrial Temp., SFP
  • EOLS-1303-10-IG : 100MBps, SM, 10Km, Industrial Temp., SFP
