Product Description

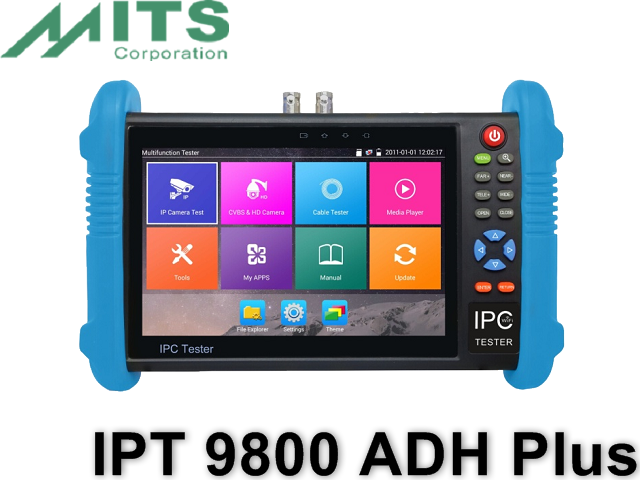

Part number:  IPT-9800 ADH Plus

—  CCTV system installation and maintenance

—  Network cabling project installation and maintenance

—  Dome camera, IP TVI CVI AHD SDI 4K H.265 camera testing

—  Video transmission channel testing

—  PTZ controller

Data monitor

Captures and analyzes the command data from controlling device,also can send hexadecimal

PoE test

Measurement POE switch or PSE power supply voltage and cable connection status

Drop-down menu

You can select PoE power switch ,IP setting, WLAN switch , HDMI IN functions etc in any interface

External power supply

DC 12V 2A


Built-in 7.4V Lithium polymer battery ,5400mAh


After charging 5~6 hours, normal working time 10 hours

Operation setting

OSD menu, select your desired language: English, Chinese, Korean, Russian, Italian, French, Polish, Spanish, Japanese etc

Auto off

5-30 (mins)

Working Temperature


Working Humidity



240mm x 154mm x 46mm / 620g


AHD camera test4MP AHD test, 2560x1440P 15F/25F/30F UTC control/ call OSD menu


TVI camera test: 5MP TVI camera test,2560x1944P 12.5FPS, UTC control/ call OSD menu


CVI camera test : 4MP CVI camera test,2560x1440P 25F/30F,UTC control d call OSD menu

Packaging & Shipping

Lead Time: 4~8 weeks
We ship whatever you ask, by DHL/UPS/FEDEX/EMSair or ocean shipment

Accept small, trial orders, and customised orders too!

Please note: All of our product's delivery term is: Ex-work Taiwan
If there is any product information needed, please contact us or consult online.
