- INFORMATION -
The MultiLane QSFP-DD Development Kit provides the necessary development tools and reference modules required for the development of QSFP-DD based products. This kit is essential for development, testing and characterization of QSFP-DD based products. It can also be used for testing 400G CDRs, 400G Gearbox devices, 400G QSFP-DD ports on routers and line-cards, electro-optical modules, and QSFP-DD active optical cables.
Complete QSFP-DD Development Kit
  • ML4062-MCB 8x50G Module Compliance Board
  • ML4062-HCB 8x50G Break-out Module
  • ML4062-HCB1 8x50G 8 Channels Host Compliance Board
  • ML4062-HCB2 8x50G 8 Channels Host Compliance Board
  • ML4062-S 8x50G Passive Loopback Module with smooth shell

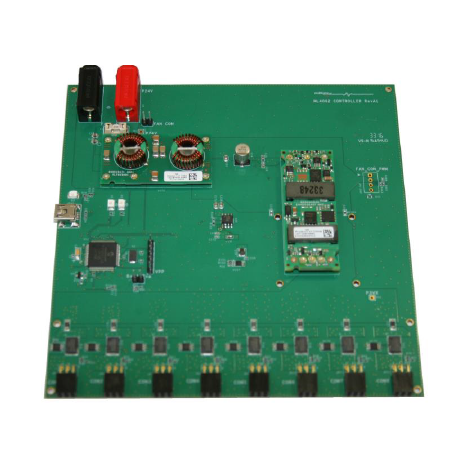

  • ML4062-CNT QSFP-DD Controller
  • ML4062-ANA QSFP-DD Loopback and state machine analyzer
  • ML4062-EO 8x50G Eye Opener Active Loopback
​
ML4062-MCB :

  • Supports 8x50G interfaces
  • I2C master driven from both on board microcontroller or external pin headers
  • 40 GHz Bo-Jiang 2.92mm K Connectors
  • Current Sense
  • Matched differential trace length
  • All 8 channels comes with matching trace length
  • High performance signal integrity traces from K connectors to QSFP-DD host connector.
  • On-board LEDs display MSA output alarm states
  • On-board buttons/jumpers for MSA input control signals
  • User friendly GUI for I2C R/W commands and loading custom MSA memory maps
  • Four corner testing capability
  • USB interface

ML4062-B0 :

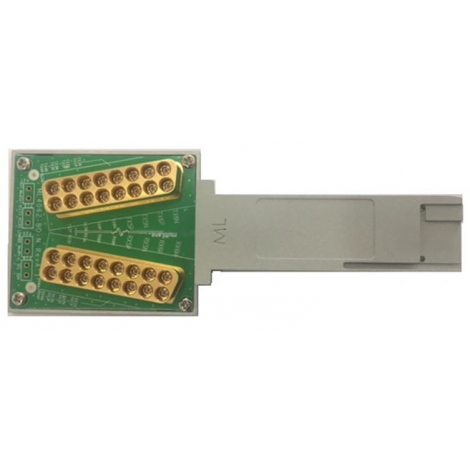

ML4062-BO QSFP-DD 8x50G Break-out Module

This Breakout module can be used for testing and characterizing 8x50G line cards and host interfaces.
  • High Performance signal integrity traces
  • QSFP-DD MSA Form Factor
  • Low Insertion Loss
  • Built with high performance PCB material
  • Production friendly form factor
  • Supports 8x50G TX and RX Lanes
    High speed signals accessible through 2x8 Huber+Suhner MXP Connector rows or multi-SMPM-Type A connectors
  • Maximum Trace length 3923 mils
  • Minimum Trace Length 2850 mils
Application: Line Card and Port Characterization


ML4062-HCB :
  1. ​ML4062-HCB1 QSFP-DD Host Compliance Board
  • High Performance signal integrity traces
  • QSFP-DD MSA Form Factor
  • Same low Insertion Loss for all traces
  • Built with high performance PCB material
  • Production friendly form factor
  • Supports 8x50G
  • 8 channels: 4 TX and the corresponding 4 RX
  • Built with RO3003 PCB Material
  • High speed signals accessible through K Connector rows
  1. ML4062-HCB2 QSFP-DD Host Compliance Board
  • High Performance signal integrity traces
  • QSFP-DD MSA Form Factor
  • Same low Insertion Loss for all traces
  • Built with high performance PCB material
  • Production friendly form factor
  • Supports 8x50G
  • 8 channels: 4 TX and the corresponding 4 RX
  • Built with RO3003 PCB Material
  • High speed signals accessible through K Connector rows

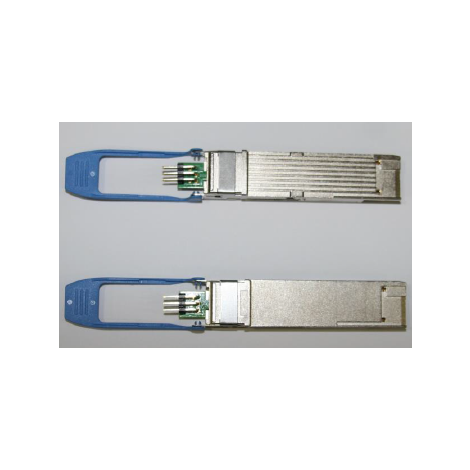

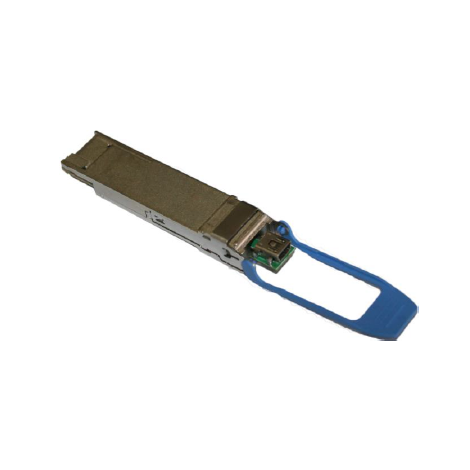

ML4062 Loopback module :
  • Supports 8x50G electrical interface
  • QSFP-DD MSA Form Factor
  • Microcontroller programmed to maintain user specified PD or constant temperature
  • 2 Thermistors on PCBA
  • 4 independent power heathers, with 0.1W resolution, up to 14W
  • Temperature Monitor and alarms warning
  • Superior SI performance
  • MSA Compatible Configuration and EEPROM
  • Supports 50G Analog Coherent
  • Loops back TX to RX on all 8 ports I2C Interface
  • Programmable MSA memory pages
  • I2C control from edge connectors and from rear pin header
  • 2 status LED Indicator
  • Insertions counter
