Product Description
Part number: IPT-1600
Application
· CCTV system installation and maintenance
· Network cabling project installation and maintenance
· Dome camera and all-in-one camera testing
· Video transmission channel testing
· PTZ controller
| Model | IPT-1600 |

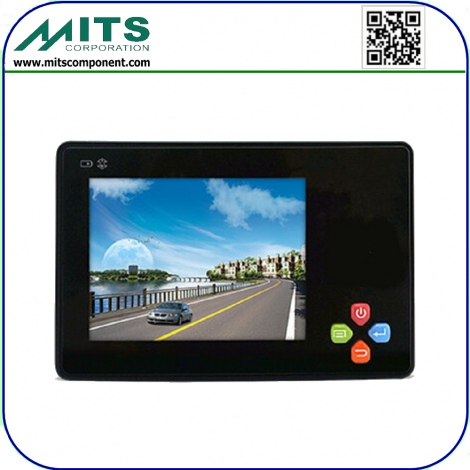

| Display | Capacity touch screen 3.5 inch wide angle screen display, 320(RGB)*240 resolution |
| Network port | 10 / 100M auto adapt，RJ45 |
| WIFI | Built in WIFI，rate 150M，receive the image from the IP camera |
| IP Camera Types |
ONVIF, ONVIF PTZ, Dahua IPC-HFW2100P, Hikvision DS-2CD864-E13, Samsung SNZ-5200, Tiandy TD-NC9200S2, Kodak IPC120L, Honeywell HICC-2300T, customizable acceptable |
| Video In |

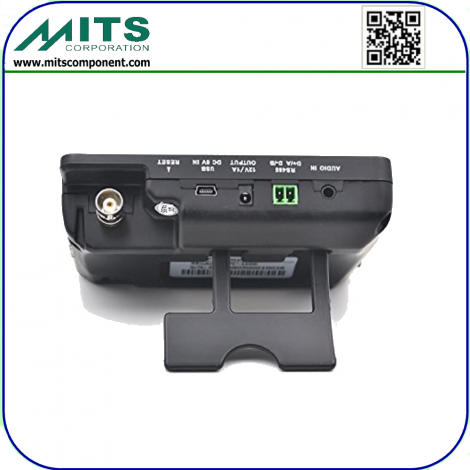

1channel Video IN BNC，PAL/NTSC |
| Zoom Image |
Analog camera image 4xzoom, and IP camera image 4xzoom and move |
| Snapshot, Video record and playback |
Capture the video image displayed and save as a JPEG file. The recorded files can play directly via Media player or under the function of “Playback”. |
| Power Output | Output DC 12V /1A |
| Audio Test | 1 channel audio signal input, test whether the sound normal, can save the record |
| PTZ Protocol |
Support RS232/RS485 control，rate 600-115200bps Compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic, Lilin, Yaan. |
| Data Monitor |
Captures and analyzes the command data from controlling device (RS185/RS232) |
| Network Testing |
IP address scan, link monitor, Ping. Find out the connected IP camera or the other network equipment IP address quickly |
| POWER | |
| Power Adapter | DC 5V (1.5A) |
| Battery |
Built-in 3.7V Lithium polymer battery,3000mAh |
| Rechargeable |
After charging 3 - 4 hours normal working time: 8 hours |
| System Parameter | |
| Operation Setting |
Capacitive touch screen, OSD menu, Chinese/English |
| Auto Off | 5 - 30 (mins) |
| General | |
| Temperature | - 10 ℃ - + 50 ℃ |
| Humidity | 30 % - 90 % |

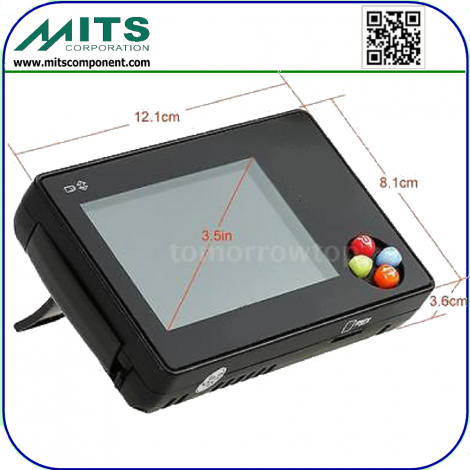

| Dimensions | 115mm x 75mm x 33mm / 300g |
Packaging & Shipping
Lead Time: 4~8 weeks
We ship whatever you ask, by DHL/UPS/FEDEX/EMS, air or ocean shipment.
Accept small, trial orders, and customised orders too!
Please note: All of our product's delivery term is: Ex-work Taiwan
If there is any product information needed, please contact us or consult online.
