MPO-MPO Truck Cables are good for the quick cabling between Data Center and optical infrastructure. Interfacing between the MDA (Main Distribution Area), HDA (Horizontal Distribution Area), & EDA (Equipment Distribution Area) with plug-n-play structure gives the lower maintain cost and initial installation cost.

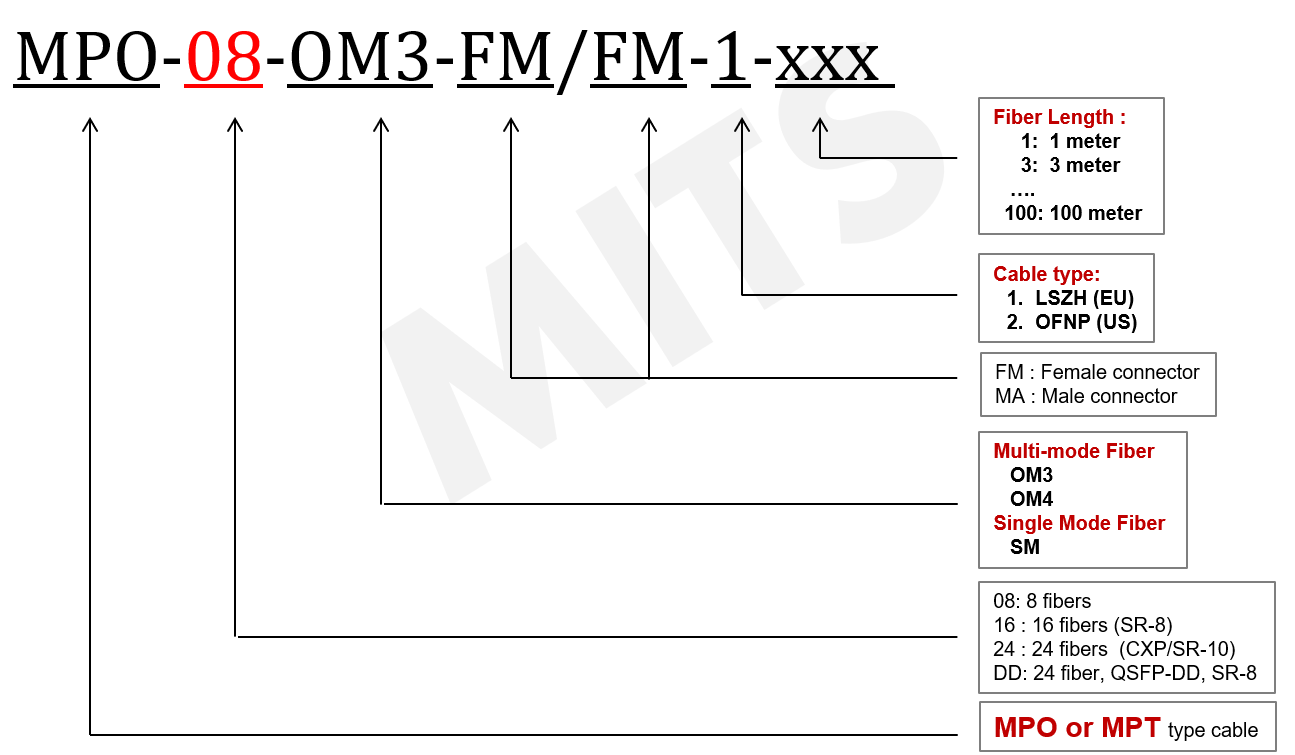

MPO Trunk Cables :

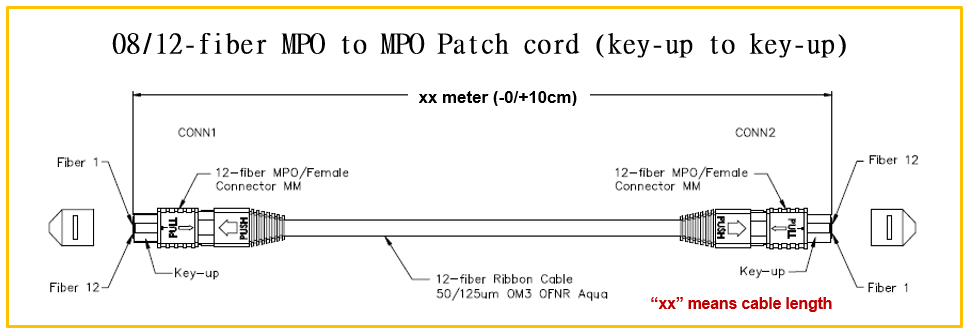

1. MPO 08 cables (4x10G/4x25G/4x56G/4x100G with SM or MM fibers)
2. MPO 12 cables (MDA, HDA & EDA)
Note : MPO-12 : with fiber on #5,6,7,8 ; MPO-08 : no fiber on #5,6,7,8

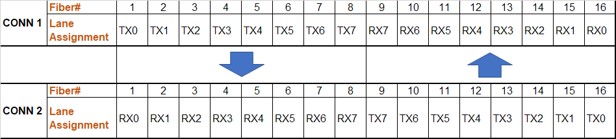

3. MPO 16 cables ((200G/400G QSFP-DD & 400G OSFP SR-8) => New !!
4. MPO 24 cables

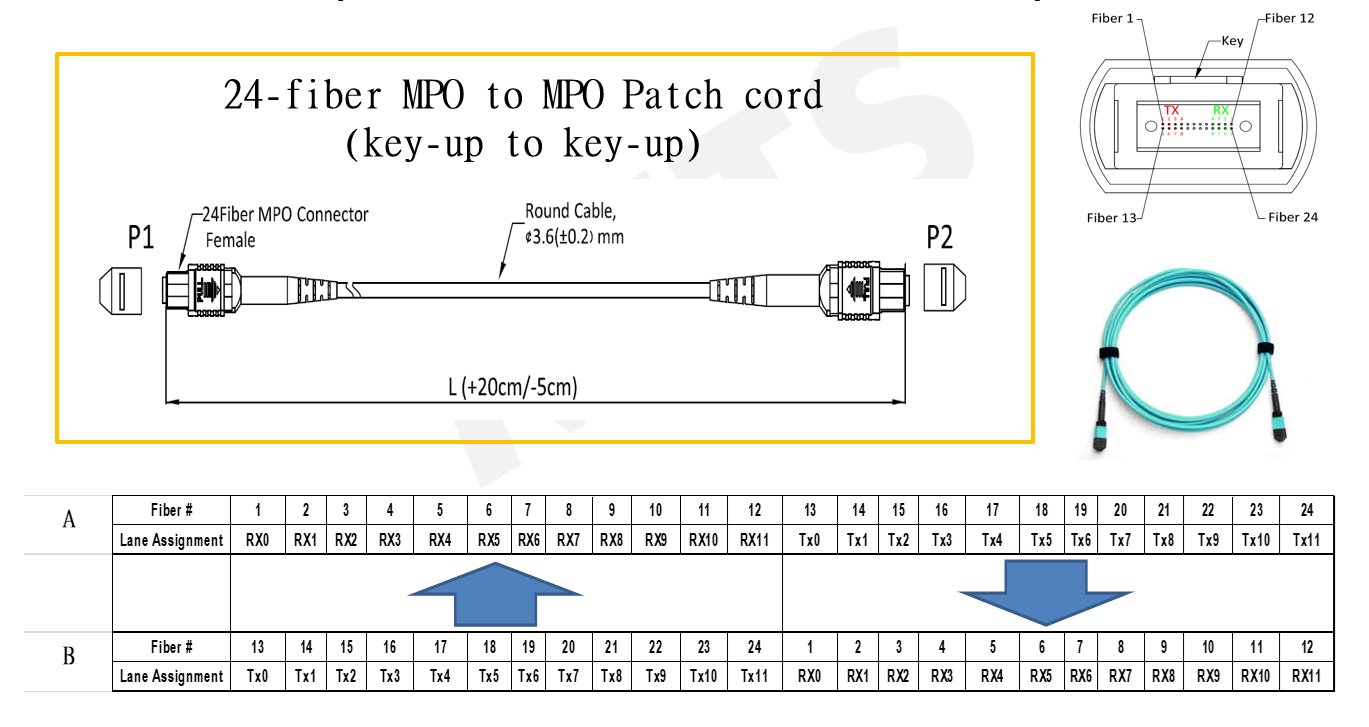

4-1 : Standard MM fibers :

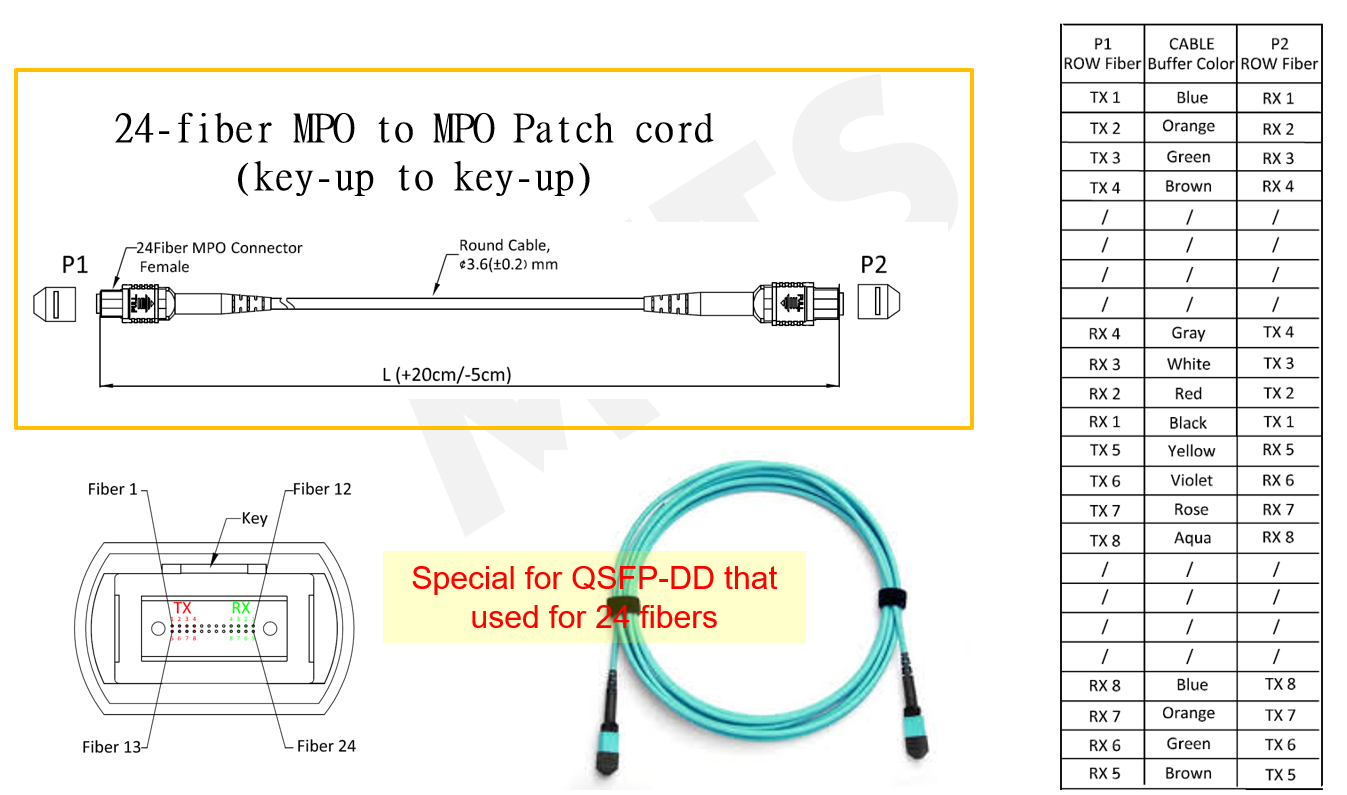

4-2 : QSFP-DD 24 fiber use :
