MPO-LC Fanout cable means one side is MPO 12/24 connector, the other side is Duplex LC type connector. Most of cases is using this kind of cable to connect the core side to the system side directly. Also it can used for system

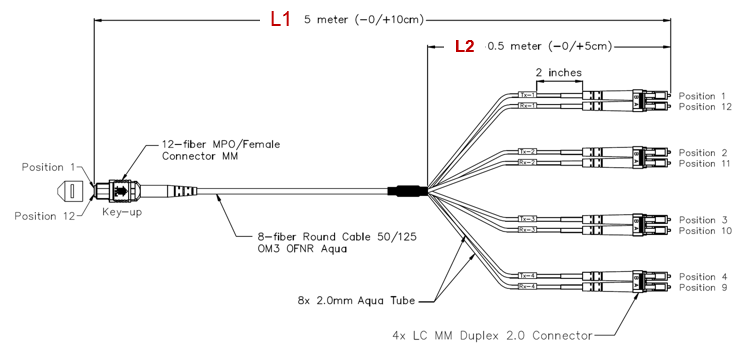

- 1 : 4 (8f to 4x 2f) -- QSFP+/QSFP28/QSFP56/QSFP-DD/OSFP to 4 pairs LC with SM or MM Duplex cables (4 x SFP+/SFP28/SFP56/DR1/FR1 )

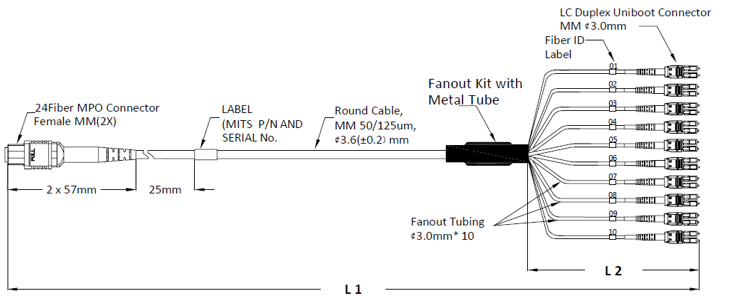

- 1 : 10 (24f to 12x 2f) -- 100G SR-10 to 10 pairs LC Duplex cables (10 x SFP+ )

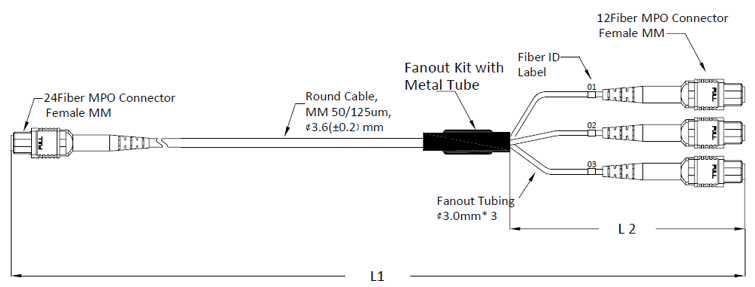

- 1: 3 (24f to 3x 8f) -- 120G CXP to 3 QSFP+ cables

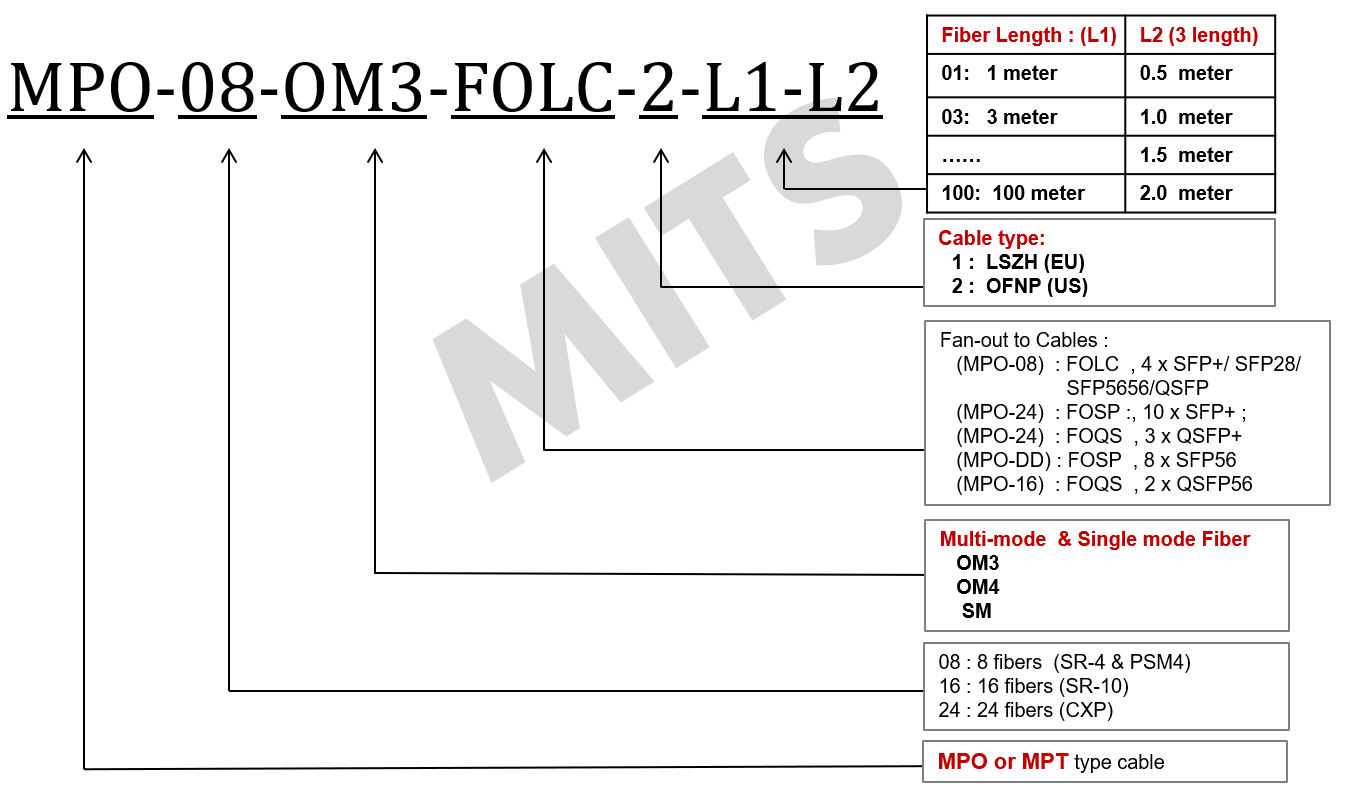

Ordering infomation :
