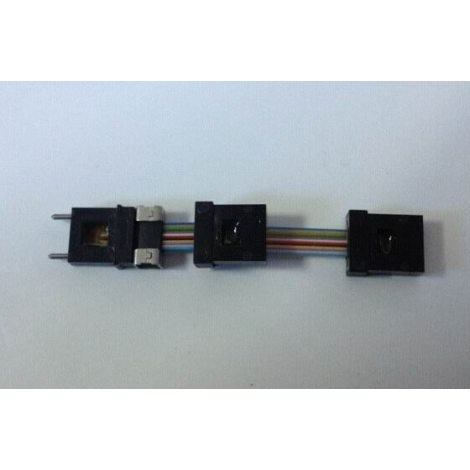

- MT-MT Ferrule for QSFP+/QSFP28 SR4 ：
The12-fiber MT-MT Ferrule used in the parallel fiber optic module－(QSFP+SR4 & QSFP28) the connection to the optical lens and External Port. We use low loss MT Ferrule, Corning Clean Curve OM2, OM3 or OM4 fiber to achieve low attenuation. Total length’s tolerance ±0.15mm, MT Ferrule’s tolerance ±0.05mm, are available to satisfy coupling in small space of the module.
Features:
- Fiber Cross Connection
- 8-12 core fiber available
- Ribbon fiber or separated fiber convenient for inside connection
- Customized length by QSFP+SR4 module inside space
Applications:
- QSFP+SR4 Module
- Multi channels equipments
- 12-fiber MT-MT patch cords used in the parallel fiber optic module active optical cables (QSFP+AOC), use low loss MT Ferrule, Corning Clean Curve OM2、OM3 or OM4 fiber to achieve low attenuation.

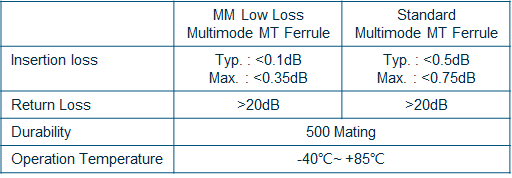

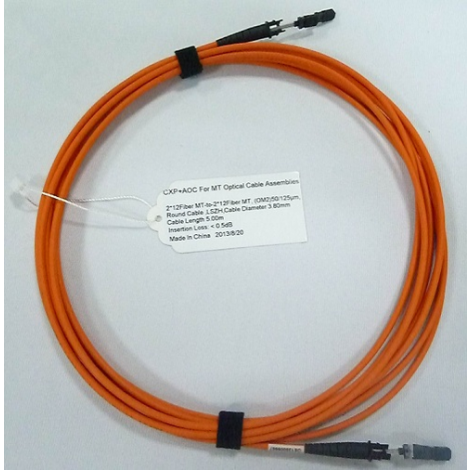

- 24-fiber MT to 2*12 Fiber MT Ferrule for CXP or SR-10
This is used in the parallel fiber optic module－(CX+SR10) the connection to the optical lens and External Port. We use low loss MT Ferrule, Corning Clean Curve OM2 or OM3 fiber to achieve low attenuation. Total length’s tolerance ±0.15mm, MT Ferrule’s tolerance ±0.05mm, are available to satisfy coupling in small space of the module.

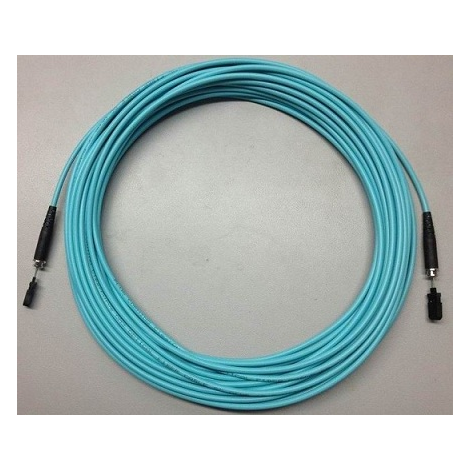

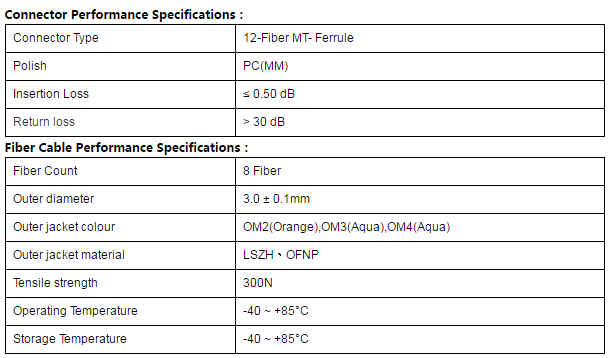

- MT-MT Cables for QSFP+ & QSFP28 AOC Cables
12-fiber MT-MT patch cords used in the parallel fiber optic module active optical cables (QSFP+AOC), use low loss MT Ferrule, Corning Clean Curve OM2、OM3 or OM4 fiber to achieve low attenuation.
Applications:
Applications:
- QSFP+ (40/56G) or QSFP28 (100G) AOC Module
- Multi channels equipments
- Standards Compliance：
- Jacketed cable is compliant with NFPA 262 Optical Fiber Nonconductive Plenum (OFNP) or IEC-60332 Low Smoke Zero Halogen (LSZH) flame rating.
- Compliant to Directive 2002/95/EC (RoHS) and REACH SvHC.
