MITS is offering a series of passive optical components such as high-density multi-fiber connecter kits, patch cords, adapters. Meanwhile, we can provide our clients with high-quality & low-cost solutions regarding high density cabling systems in data centers, Telecom and FTTD/FTTH.
Our solution in high density and pre-terminated system applications :
Using the solution with plug-n-play, high density, expandable and Pre-terminated cable system. Also modulate to have system management and pre-terminated parts that reduce the installation time and give the Data Center more flexible to migrate to high speed, or adding/changing the cable system.
We are using the low loss connectors and bend insensitive fibers (bending radius < 7.5mm）. This gives trucking cable with smaller loss and bending capability. It can fulfill the <79ns delay spec. & link attenuation for 40G/100G/400G transmission.

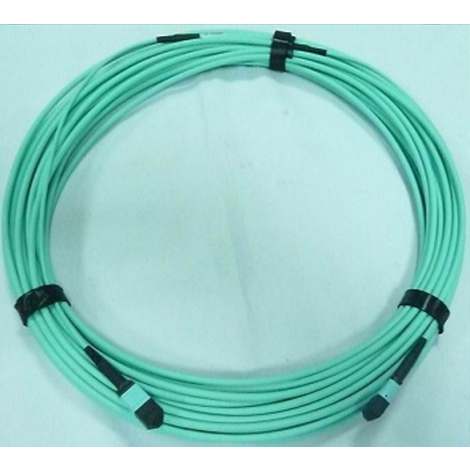

- MPO-MPO Trunk Cables
- MPO 08 cables (4x10G/4x25G/4x56G/4x100G) with SM or MM fibers.
- MPO/MPT 16 Cables (8x 50G) MM fiber
- MPO 24 cables for 100G CXP/SR-10 & 200G/400G SR-8 MM fiber

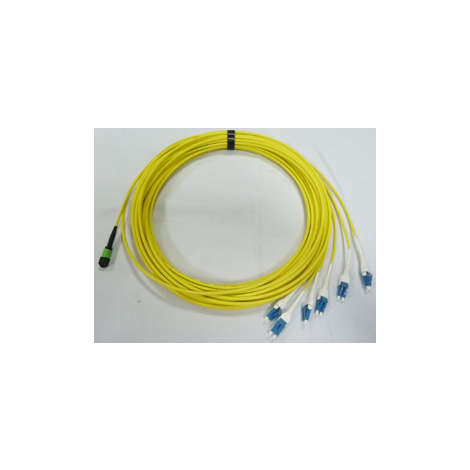

- MPO-LC breakout Cables
- 1 : 4 (8f to 4x 2f) -- QSFP+/QSFP28/QSFP56/QSFP-DD/OSFP to 4 pairs LC with SM or MM Duplex cables (4 x SFP+/SFP28/SFP56/DR1/FR1 )
- 1 : 2 (16f to 2x 8f) – QSFP-DD/OSFP (400G/200G) to 2 x QSFP56/QSFP28
- 1 : 10 (24f to 12x 2f) -- 100G SR-10 to 10 pairs LC Duplex cables (10 x SFP+ )
- 1: 3 (24f to 3x 8f) -- 120G CXP to 3 QSFP+ cables
- MPO Loopback Cables
- MPO-08 -- QSFP/QSFP28/QSFP56/QSFP-DD/OSFP SM & MM Loopback cable
- MPO-16 -- QSFP-DD/OSFP (MPT-16) MM Loopback cable
- MPO-24 -- 120G CXP/100G SR-10/QSFP-DD Loopback Cable
- MPO Adaptor

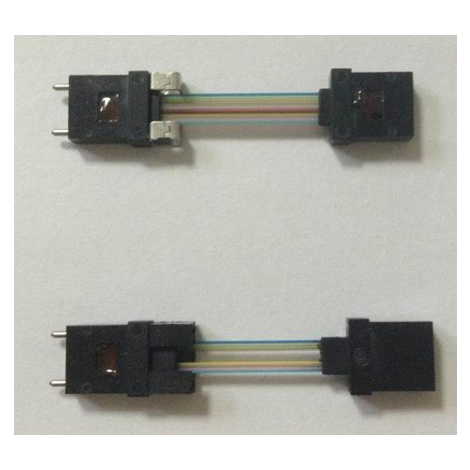

- MT-MT patch cord
- MT-MT Jump
- 08/16/24 fibers MT-MT patch cords
- Cassette Management Panels 卡匣式光纖管理面板
- Cassette Management Panels

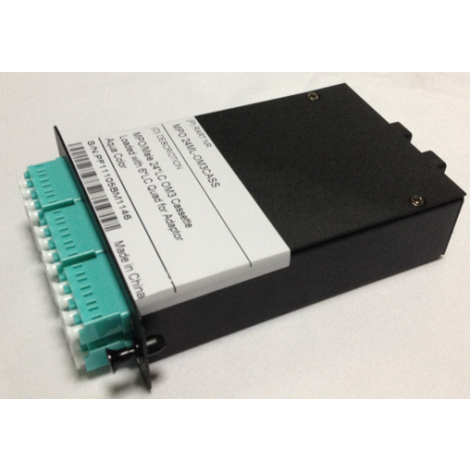

- MPO Cassette module Panels
