Product Description

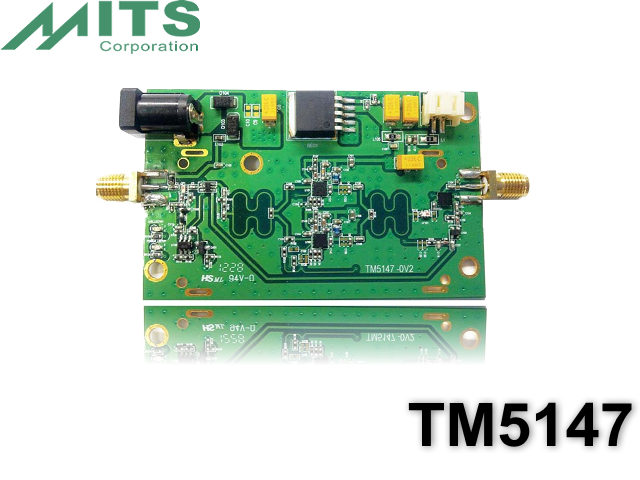

Part number: TM5147
| Parameter | Min. | Typ. | Max. | Unit | Remark |
| Frequency Range | 2400 | 2500 | MHz | ||
| Output Power @1dB Compression | 34 | 35 | dBm | ||
| Linear Output Power | 32 | dBm | @ 802.11b/ 11Mbps | ||
| 30 | dBm | @ 802.11g/ 54Mbps | |||
| 27 | dBm | @ 802.11n/ 300Mbps | |||
| Peak Output Power | 36 | dBm | @ 802.11b/ 11Mbps | ||
| 37 | dBm | @ 802.11g/ 54Mbps | |||
| 31 | dBm | @ 802.11n/ 300Mbps | |||
| Tx Mode Turn On Power | 0 | dBm | Adjustable depends on customer | ||
| Fixed Transmit Gain | 16 | dB | |||
| Power Input | 20 | dBm | |||
| Receive Gain | 10 | 11 | dB | ||
| Noise Figure | 2.5 | dB | |||
| Transmitter Current Consumption | 1700 | mA | @802.11b mode 33 dBm power out | ||
| Receiver Current Consumption | 30 | mA | |||
| Input/Output VSWR | 1.5 | ||||
| Operating Temperature | -20 | +85 | °C | ||
| DC Supply Voltage 1(White Wafer) | 4.5 | 5.0 | 5.5 | V | |
| DC Supply Voltage 2(Black Jack) | 6.5 | 7 | 9 | V | |
| LED Color for Power Up | Red | ||||
| LED Color for link | Green |

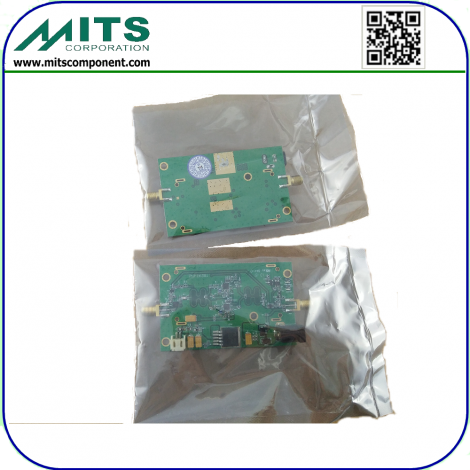

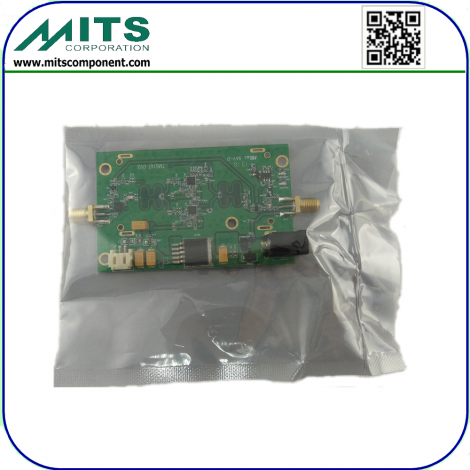

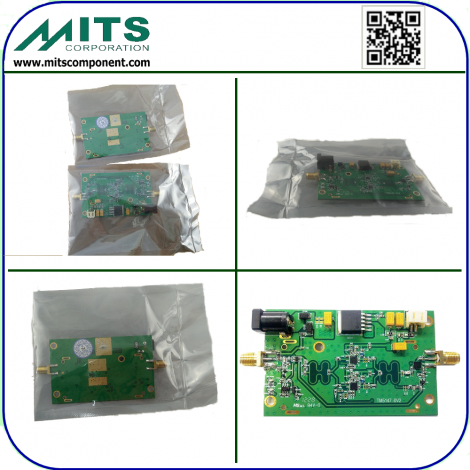

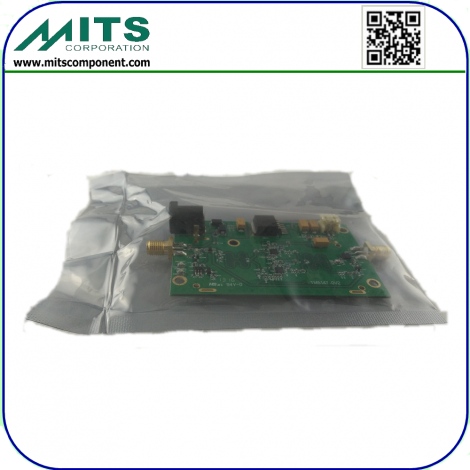

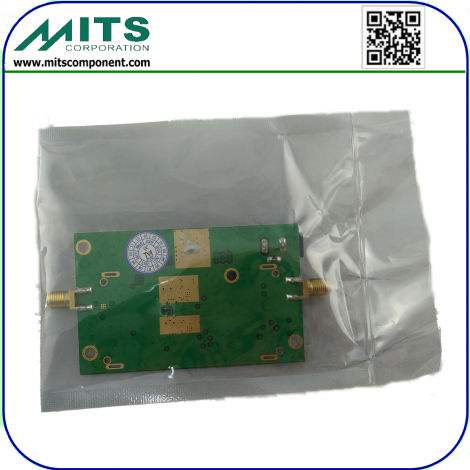

Packaging & Shipping
Lead Time: 4~8 weeks
We ship whatever you ask, by DHL/UPS/FEDEX/EMS, air or ocean shipment.
Accept small, trial orders, and customised orders too!
Please note: All of our product's delivery term is:Ex-work Taiwan
If there is any product information needed, please contact us or consult online.
