Product Description

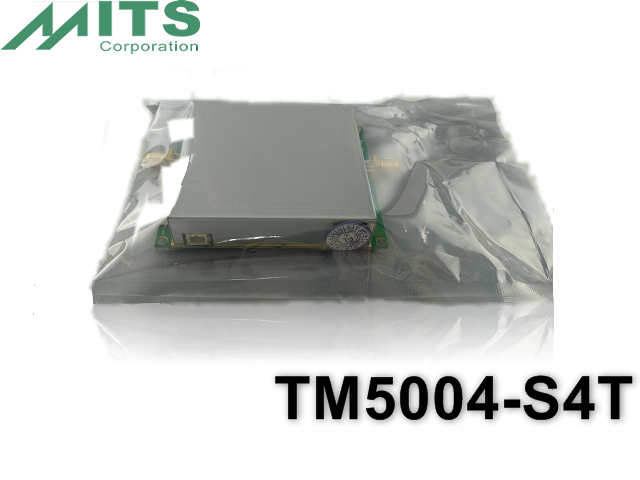

Part number: TM5004-S4T

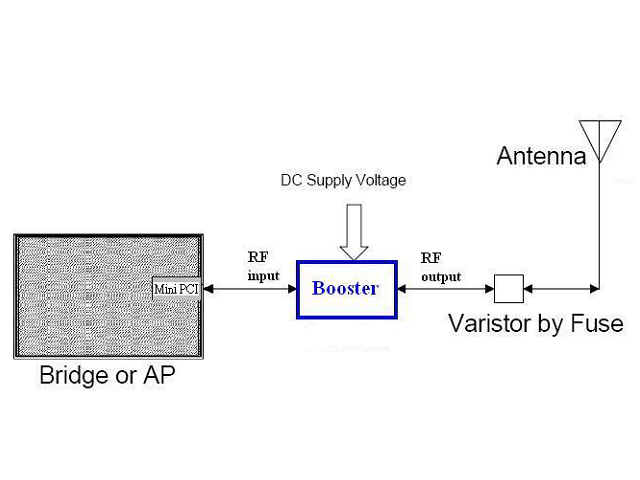

Application
· WLAN 802.11b/g, 802.11superG
· Wireless systems at 2.4GHz ISM Band
· Remote point to point link
· Wireless base station
· Bridge link between networks
| Parameter | Min. | Typ | Max. | Unit | Remark |
| Frequency Range | 2400 | 2500 | MHz | ||
| Output Power @ 1dB Compression | 33 | dBm | |||
| Linear Output Power | 30 | dBm | @ 802.11b / 11Mbps | ||
| 27 | dBm | @ 802.11g / 54Mbps | |||
| Tx Mode Turn On Power | -2 | -1 | 0 | dBm | These parameters can be adjusted per customer request |
| Fixed Transmit Gain | 14 | 15 | 16 | dB | |
| Receiver Input Power | 15 | dBm | |||
| Receiver Gain | 9 | 10 | 11 | dB | |
| Noise Figure | 3.5 | dB | |||
| Transmitter Current Consumption | 350 | 1450 | mA | Measure at DC input point | |
| Receiver Current Consumption | 90 | mA | Measure at DC input point | ||
| Input/Output VSWR | 2 | ||||
| Operating Temperature | -20 | +70 | ℃ | ||

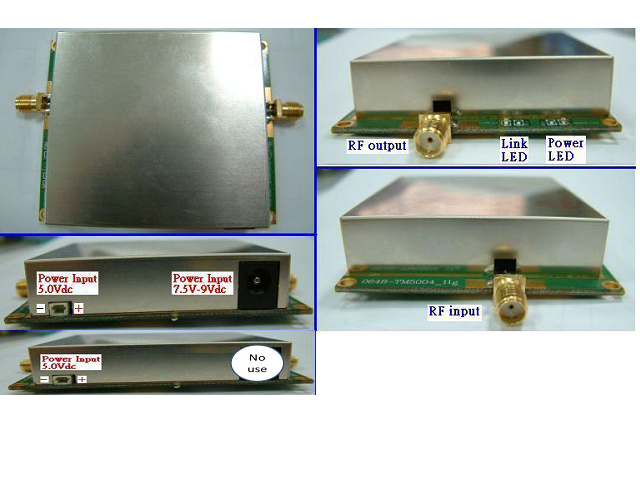

| DC Supply Voltage (Option 1) | 4.8 | 5.0 | 5.5 | V | |
| DC Supply Voltage (Option 2) | 7.0 | 7.5 | 12 | V | 7.5V is Recommended |
| RF Connector | SMA Female | ||||
| Dimension | mm | 75.6 x 62.3 x 15 | |||
| Net Weight | 52 | g |
