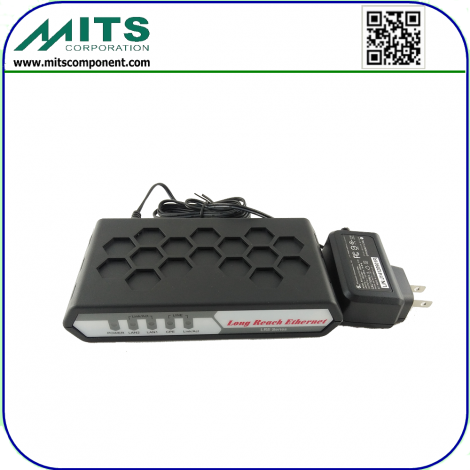

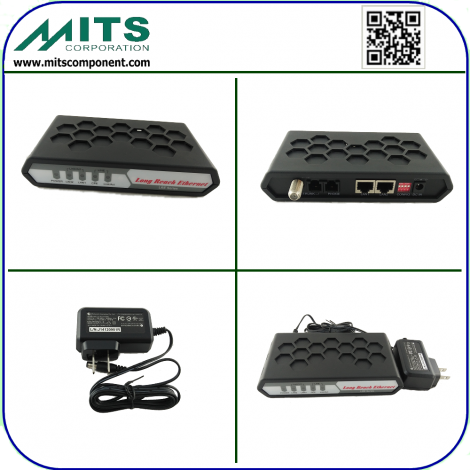

1WAN,2 LAN, 10/100Mbps , 2-Port Ethernet over LRE Bridge
(Combo Interface for Copper or Coaxial, Ethernet over Copper or Ehernet over Coaxial)
The LRE-200-E is an Ethernet over Long Reach Ethernet(LRE) product with high performance. It is easy bridge that efficiently extends 10/100 Ethernet circuits to 2 wire-Networking LAN for Internet and Intranet access. The LRE technology offers the absolutely fastest data transmission speeds over existing copper telephone lines or Coaxial line without the need of rewiring. The LRE-200-E supports ultra-high performance to the pervasive telephone line network with up to 100/100Mbps symmetric data rate with in 300m and 7.8/2Mbps for 2.1km(copper) long connections.
Implements with Existing Telephone Copper Wires

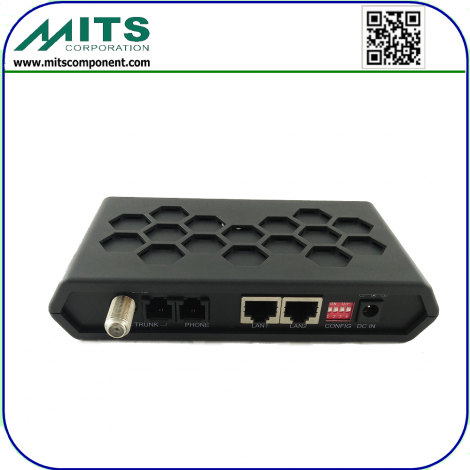

The LRE-200-E is also a Long Reach Ethernet (LRE) converter provides two RJ-45 Ethernet ports and two RJ-11 phone jacks and one Coaxial Jack. One RJ11/Coaxial is for LRE connection and the other is for POTS (Plain Old Telephone Service) connection. The LRE-200-E had built-in POTS splitter to share the existing phone line with POTS, therefore it is no need of replacing the existing copper wiring. Just plug the LRE-200-E into the existing RJ-11 telephone jack and a high-performance LRE network can be connected. It is ideal for use ad Ethernet extender to an existing 1-pair network.
Implements with Existing Coaxial Wires
The LRE-200-E had Coaxial Interfaces for point-to-point wiring network. The LRE-200-E supports ultra-high performance to the pervasive Coaxial (RG-59/RG-6) line network with up to 100/100Mbps symmetric data rate with in 500m and 15/1Mbps for 3kmlong connections.
Easy Installation

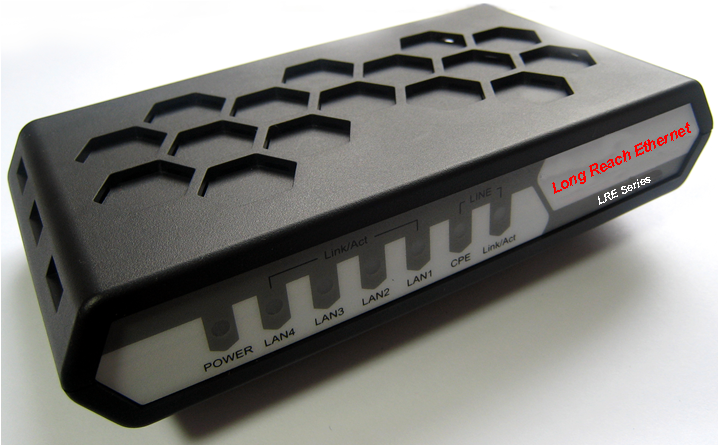

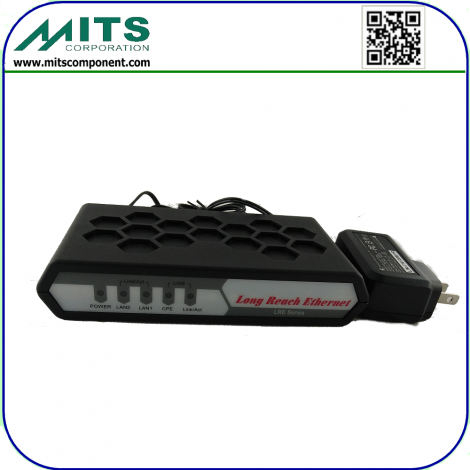

The Converter is plug-and-play design and fully compatible with all kinds of network protocols. Moreover, the operating status of each individual port and the whole system can be watched via the rich diagnostic LEDs on the front panel. MLS-200-E build in DIP switch selectable can be setting to central side (CO) or client side (CPE) mode. For point-to-point connection, a CPE mode LRE-200-Eand a CO mode LRE-200-E must setup as one pair of converters to perform the connection.
Providers Superior Upstream and Downstream Transmission
The LRE-200-E also defines asymmetric and symmetric band plans and auto mode for the transmission of upstream and downstream signals. For more information please reference Table.

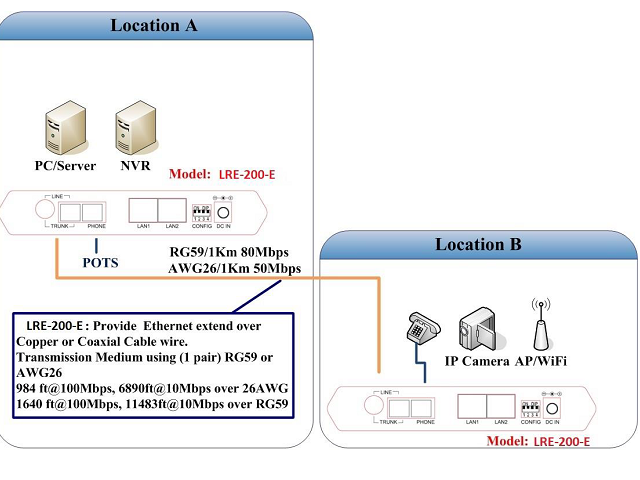

Application
- Extend LAN connectivity to a remote site or between buildings
- Connect Ethernet over the different Room over existing house’s phone/coax line infrastructure
- Connect new controller technology on the factory floor using existing wiring
- Extend Ethernet connectivity from a backbone network to an isolated location via Phone line/Coax wire
- Transmit Video and traffic controller information over existing Phone line/Coax wire
If there is any product information needed, please contact us.
