Product Description

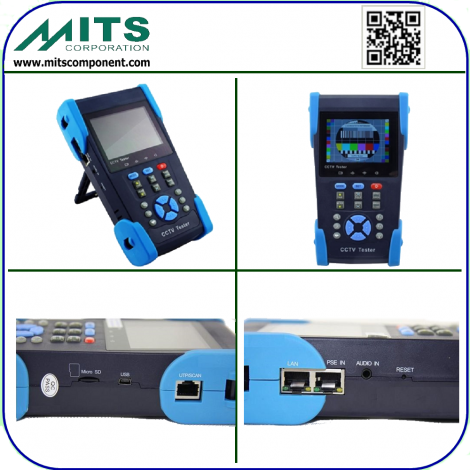

Part number: IPT-2800
Application
· CCTV system installation and maintenance
· Network cabling project installation and maintenance
· Dome camera and all-in-one camera testing
· Video transmission channel testing
· PTZ controller
| Model | IPT-2800 |
| Signal Mode |
NTSC/PAL (Auto adapt) |
| Display |

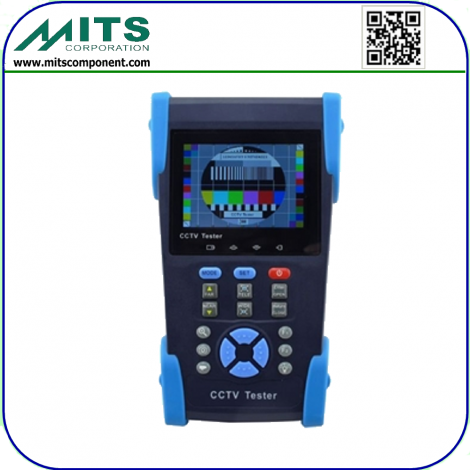

3.5 inch digital TFT-LCD, 480 (RGB) x 320 resolution |
| LCD Adjustment |
Brightness, contrast, saturation adjustable |
| Video In/Out |

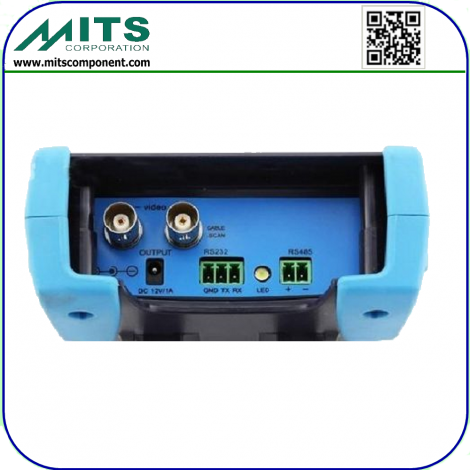

1 channel BNC input & 1 channel output |
| Video Output Mode | 1.0 Vp-p |
| Video Level Test |
Video signals measured in IRE or mV (not for TVI, CVI, & AHD) |
| Video Level Meter | PEAK video signal level, SYNC signal level, COLOR BURST chroma level measurement |
| Color Bar Generator |
Output one channel PAL/NTSC color bar video signal for testing monitor or video cable (red, green, blue, white and black color) |

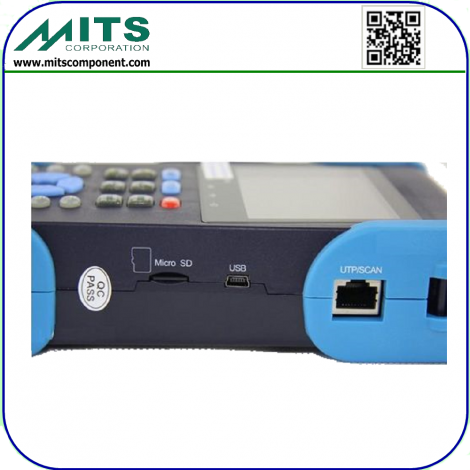

| UTP Cable Test |
Test UTP cable connection status and display in the screen. Read the number of the test box. |
| Power Output |

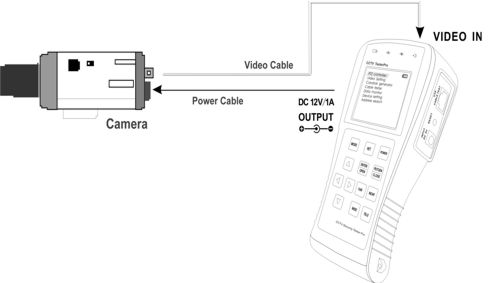

Output DC12V1A power for camera |
| Audio Test | Test the pickup and other audio equipment on the front-end |
| Data Monitor Analysis |
Captures and analyzes the command data from controlling device (RS485) |

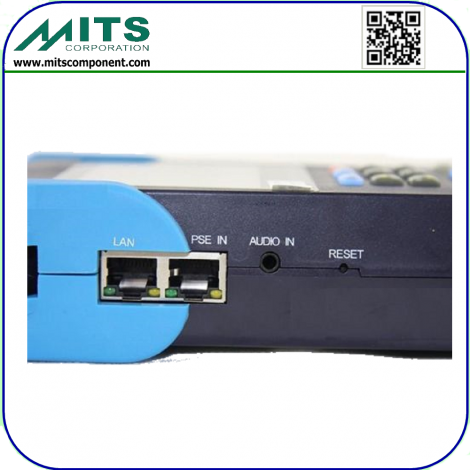

| Port Flicker | Find the connected POE port quickly. |
| IP Scan |
Find out the connected IP camera or the other network equipment IP address quickly |
| Link Monitor |
Check the IP address whether is occupied |
| PING Testing | Test IP camera or Ethernet port of the other network equipment whether work normally, and check the IP address |
| PoE Tester |
Display the power supply voltage and cable connection states |
| Cable Scan | Search the cable by the audio signal |
| Visual Fault Locator | Test fiber’s bending and breakage (SM and MM fiber) |
| TDR Tester | Breakpoint and short circuit measurement (BNC cable, & telephone cable) |
| PTZ Controller | |
| Communication | Support RS232 and RS485 |
| PTZ Protocol | Compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic, Lilin, Yaan |
| Baud Rate | 600, 1200, 2400, 4800, 9600, 19200, 57600, 115200bps |
| Digital Multimeter | |
| AC/DC Voltage |
0-660V auto/manual range, the min resolution is 0.1mV |
| AC/DC Current |
660.0uA, 6.600mA, 66.00mA, 660.0mA, 10.00A |
| Resistance |
660.0Ω, 6.600kΩ, 66.00kΩ, 660.0kΩ, 6.600MΩ,66.00MΩ |
| Capacitance | 6.6nf - 66000uF, the min resolution is 1pF |
| Diode | 0 - 2V forward voltage, the min resolution is 1mV |
| Data Hold |
Hold and display the measured value |
| Relative Measurement | Display the relative power value |
| Continuity Testing |
Built-in buzzer will sound, if resistance is lower than 50 Ω |
| Testing Speed Data Range |
3 times/seconds - 6600 to +6600 |
| Optical Power Meter | |
| Calibrated Wavelength (nm) | 850/1300/1310/1490/1550/1625nm |
| Power Range (dBm) | - 70 to +10 dBm |
| Sensitivity (nW) | 0.001 nW |
| Connector Type | FC/PC |
| Data Hold |
Hold and display the measured value |
| Relative measurement | Display the relative power value |
| POWER | |
| Power Adapter | DC 5V (1.5A) |
| Battery |
Built-in 3.7V Lithium polymer battery,3000mAh |
| Rechargeable |
After charging 3 - 4 hours Normal working time: 11 hours |
| Low Consumption | Energy saving technology, the battery icon real-time display |
| System Parameter | |
| Operation Setting | Capacitive touch screen, OSD menu, Chinese/English |
| Auto Off | 5 - 60 (mins) |
| Keytone | On/Off |
| General | |
| Temperature | - 10 ℃ to + 50 ℃ |
| Humidity | 30 % - 90 % |
| Dimensions | 194mm x 112mm x 48mm / 540g |
| Optional Functions |
| L *Video Level Meter |
| C *Cable Trace |
| M *Digital Multi-meter |
| O *Optical Power Meter |
| V *Visual Fault Locator |
| T *TDR Tester |
For IPT-2800
1. Can only choose between O or V
Packaging & Shipping
Lead Time: 4~8 weeks
We ship whatever you ask, by DHL/UPS/FEDEX/EMS, air or ocean shipment.
Accept small, trial orders, and customised orders too!
Please note: All of our product's delivery term is: Ex-work Taiwan
If there is any product information needed, please contact us or consult online.
