Product Description
Part number: IPT-3500
Application
· Surveillance camera system for field installation and maintenance
· Network cabling project installation and maintenance
· Dome camera and all-in-one camera testing
· Video transmission channel testing
· PTZ controller
| Model | IPT-3500 |
| Display | 3.5 inch capacitive touch screen 480 * 320 resolution |
| Network Port | 10 / 100M auto adapt，RJ45 |
| SDI Camera Test | 1 channel SDI IN BNC Input, supports resolution 720p 60fps / 1080p 30fps /1080i 60fps |
| TVI Camera Test (One among TVI / CVI / AHD) | Supports resolution 720p 25fps, 30fps, 50fps, 60fps / 1080P 25fps, 30fps, camera OSD menu control over coaxial cable |
| CVI Camera Test (One among TVI / CVI / AHD) | Support resolution 720p 25fps, 30fps, 50fps, 60fps / 1080P 25fps, 30fps, camera OSD menu control over coaxial cable |
| AHD Camera Test (One among TVI / CVI / AHD) | Support AHD2.0, support resolution 1080P 25fps, 30fps / 720p 25fps, 30fps, camera OSD menu control over coaxial cable |
| WIFI | Built in WIFI，speeds150M，display wireless camera image |
| IP Camera Types | ONVIF, ACTi, Dahua IPC-HFW2100P, Hikvision DS-2CD864-E13, Samsung SNZ-5200, Tiandy TD-NC9200S2, Kodak IPC120L, Honeywell HICC-2300T, Aipu-waton IP5000-BC- 13MP/IRS06-13MP, Fine-Tida IPC, FSJ BY- 1080Q, WEISKY IPC camera… etc |

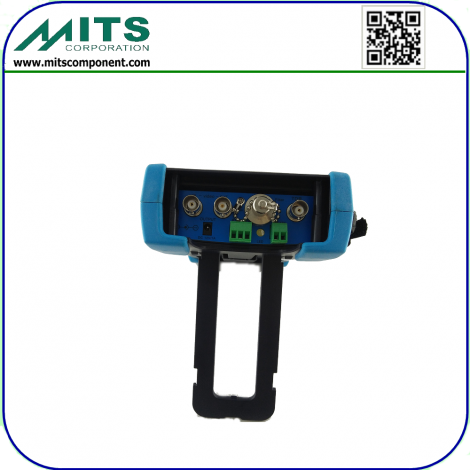

| Video In/Out | 1 channel BNC input & 1 channel BNC looped output, NTSC/PAL (Auto adapt) |
| Video Level Test | Video signals measured in IRE or mV |
| Video Level Meter | PEAK video signal level, SYNC signal level, Color bar chroma level measurement |
| Zoom Image | Support Analog camera and IP camera image zoom /move |
| Snapshot, Video Record and Playback | Image Screen snapshot, record ,save ,view and record and play back |
| Power Output | Output DC 12V /1A |
| Audio Test | 1 channel audio signal input, test whether sound normal, 1 channel audio signal, to connect headphone |
| PTZ Protocol | Support RS232/RS485 control, Baud 600- 115200 bps, Compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic, Lilin, Yaan, etc |
| Video Signal Generator | Output one channel PAL/NTSC color bar video signal for testing monitor or video cable.(red, green ,blue, white and black color ) |
| Color Bar Generator | Local side PC can login the tester, send the signal by network ,test network connection communication |
| UTP Cable Tester | Test UTP cable connection status and display on the screen. Read the number on the screen |
| Data Monitor | Captures and analyzes the command data from controlling device，also can send hexadecimal |
| Network Testing | IP address scan, link test, Ping test, Quickly search the connection IP camera and other device’s IP address |

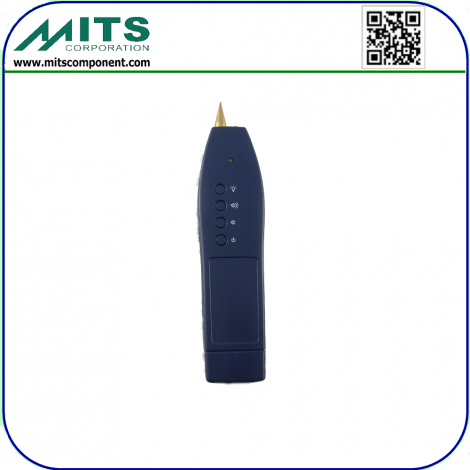

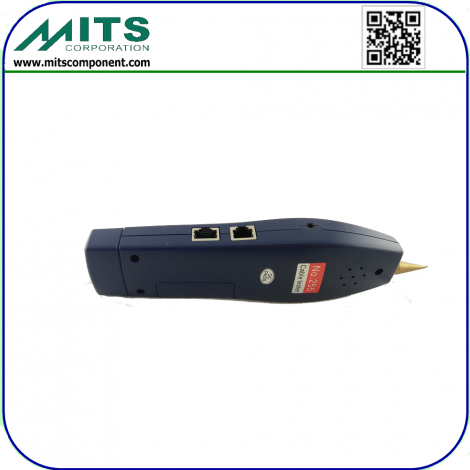

| Cable Tracer | Search the cable by the audio signal |
| PoE / PSE Test | Measurement POE switch or PSE power supply voltage and cable connection status |
| Digital Multi-meter | AC / DC Voltage，AC / DC current、Resistance、 Capacitance、Data hold、Relative measurement、Continuity testing . Testing speed: 3 times / seconds，Data range – 6600 - +6600. |
| Optical Power Meter (Can only choose one between Visual Fault Locator | Calibrated Wavelength(nm) ：850 / 1300 / 1310 / 1490 / 1550 / 1625 nm Power range (dBm) ： - 70 - + 10 dBm |
| Visual Fault Locator (Can only choose one between Optical Power Meter) | Test fiber’s bending and breakage ( SM and MM fiber) |
| TDR Tester | Cable length and short circuit measurement (BNC cable, Coaxial cable, Cat 5 / 6, telephone cable) |
| POWER | |

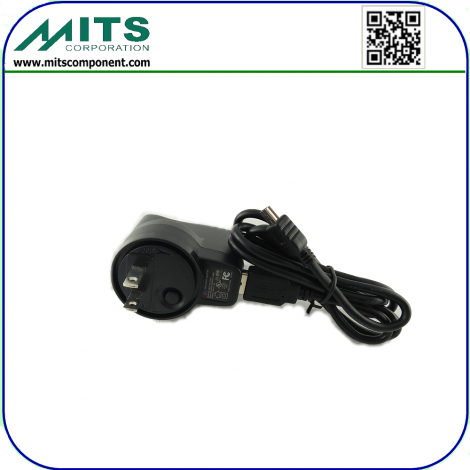

| Power Adapter | DC 5V (1.5A) |
| Battery | Built-in 3.7V Lithium polymer battery 3500 mAh |
| Rechargeable | After charging 3 - 4 hours normal working time: 8 hours |
| System Parameter | |
| Operation Setting | Capacitive touch screen, OSD menu, Chinese/English |
| Auto Off | 1 - 30 (mins) |
| General | |
| Temperature | - 10 ℃ - + 50 ℃ |
| Humidity | 30 % - 90 % |
| Dimensions | 194 mm x 112 mm x 48 mm / 540g |
| Optional Functions |
| L *Video Level Meter |
| C *Cable Trace |
| M *Digital Multi-meter |
| O *Optical Power Meter |
| V *Visual Fault Locator |
| T *TDR Tester |
| S *SDI Camera Test |
| A *AHD Test |
| D *CVI Test |
| H *TVI Test |
For IPT-3500 Can only choose between O or V
For IPT-3500 Can only choose 1 among T, S, A, D & H
Packaging & Shipping
Lead Time: 4~8 weeks
We ship whatever you ask, by DHL/UPS/FEDEX/EMS, air or ocean shipment.
Accept small, trial orders, and customised orders too!
Please note: All of our product's delivery term is: Ex-work Taiwan
If there is any product information needed, please contact us or consult online.
