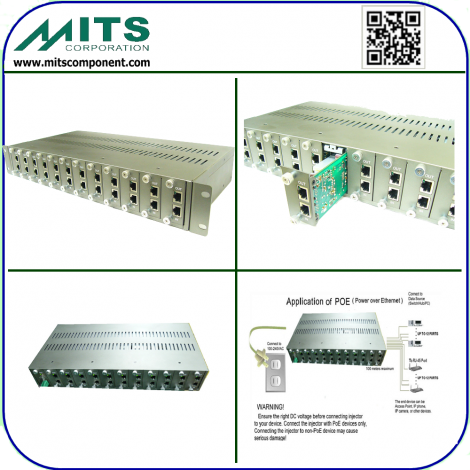

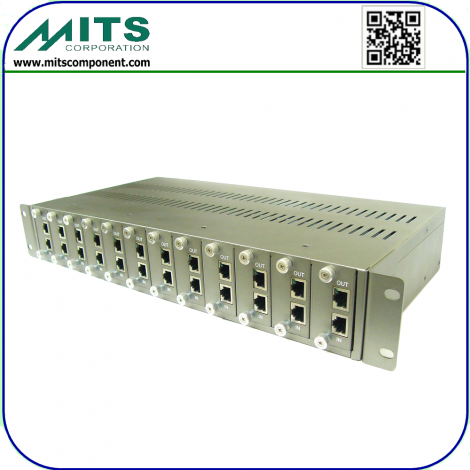

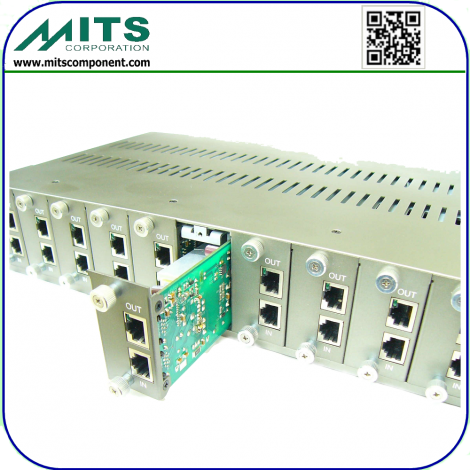

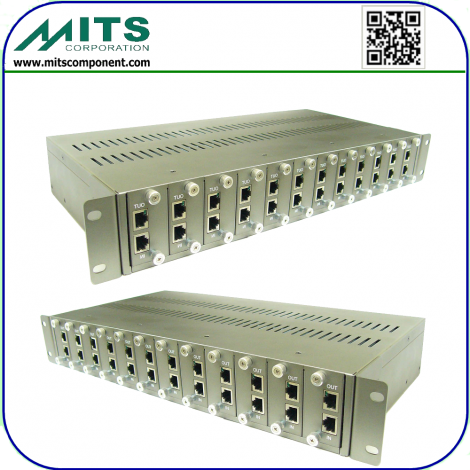

Product Description
Part number:
MIT-512-4824
RJ45 Connection: @1000MBASE
  RJ-45 Input (Data Only) RJ-45 Output (Data & Power)
Pin Symbol Description Symbol Description
1 BI_DA+ Data Pair A+ BI_DA+ Data Pair A+
2 BI_DA- Data Pair A- BI_DA- Data Pair A-
3 BI_DB+ Data Pair B+ BI_DB+ Data Pair B+
4 BI_DC+ Data Pair C+ +Vdc + BI_DC+ power(+)+Data Pair C+
5 BI_DC- Data Pair C- +Vdc + BI_DC- power(+)+Data Pair C-
6 BI_DB- Data Pair B- BI_DB- Data Pair B-
7 BI_DD+ Data Pair D+ -Vdc + BI_DD+ power(-)+Data Pair D+
8 BI_DD- Data Pair D- -Vdc + BI_DD- power(-)+Data Pair D-

Packaging & Shipping


Lead Time: 4~8 weeks
We ship whatever you ask, by DHL/UPS/FEDEX/EMSair or ocean shipment

Accept small, trial orders, and customised orders too!

Please note: All of our product's delivery term is:
Ex-work Taiwan
If there is any product information needed, please contact us or consult online.
