Product Description

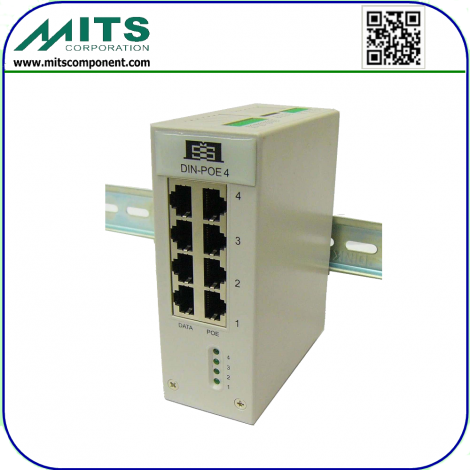

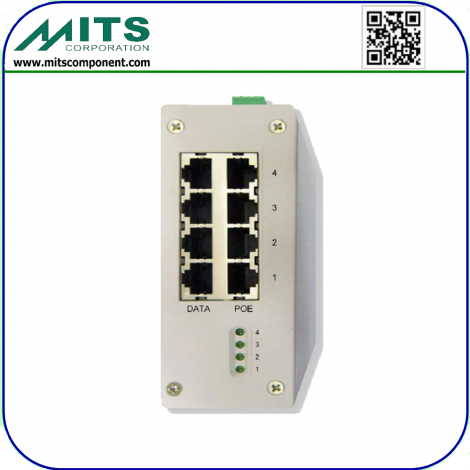

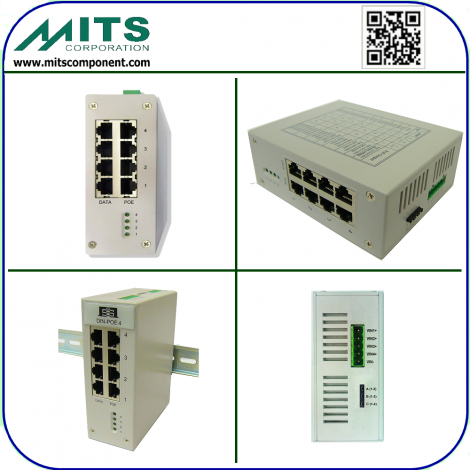

Part number: DIN-POE4D
| Data Rate | 10M/100M/1000M |
| Input Voltage | 12VDC to 57VDC (DIN-POE4); 40VDC to 57VDC (DIN-POE4D) |
| Maximum PoE output | 35W per port (DIN-POE4D) Current limited – 1A/port (DIN-POE4) |
| Compliance | 802.3af/at (DIN-POE4D) |
| PoE protection | over-current protection |
| LEDs: | Green-Power ready, Off-No power apply |
| Operating temperature | -40℃~ +75℃ |
| Operation humidity | 90% relative humidity, non-condensing |
| Storage temperature | -40℃~+85℃ |
| Dimension | 125mm(H) x46mm(W) x102mm(D) DIN RAIL Mountable |
| Operating Voltage | Data 5V |
| Clamping Voltage | Data 16.5V(@IPP -5A, tp -8/20µs, I/O pin to GNDµ |
| Peak Pulse Current | 20A (tp-8/20µs) |
| Pin Protected | All 8 pin protected |
| Max Shut Capacitance | <3pF (VR-0V, f-1MHz, I/O pin to GND) <1.5 pF (VR-0V, f-1MHz, Between I/O pins |
| IEC compatibility(EN 61000-4) | IEC 61000-4-2 (ESD)±15kV (air), ±8kV (cotact) IEC 61000-4-4 (EFT) 40A (5/50ns) IEC 61000-4-5 (Lightning) 20A (8/20µS |
Packaging & Shipping
Lead Time: 4~8 weeks
We ship whatever you ask, by DHL/UPS/FEDEX/EMS, air or ocean shipment.
Accept small, trial orders, and customised orders too!
Please note: All of our product's delivery term is:Ex-work Taiwan
If there is any product information needed, please contact us or consult online.
