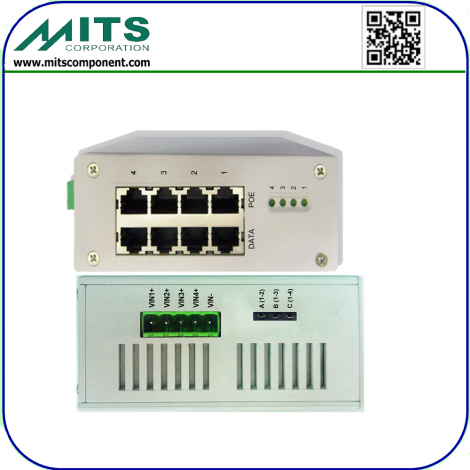

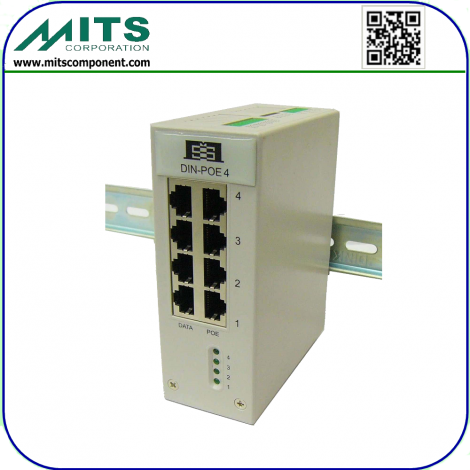

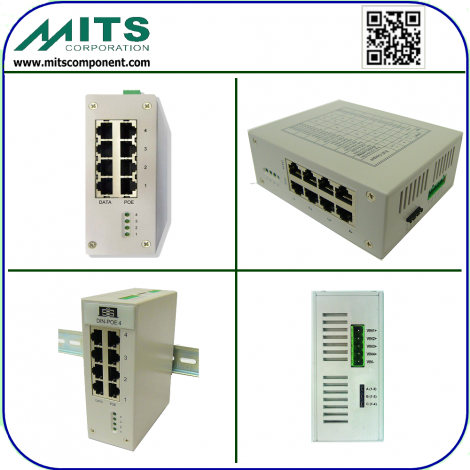

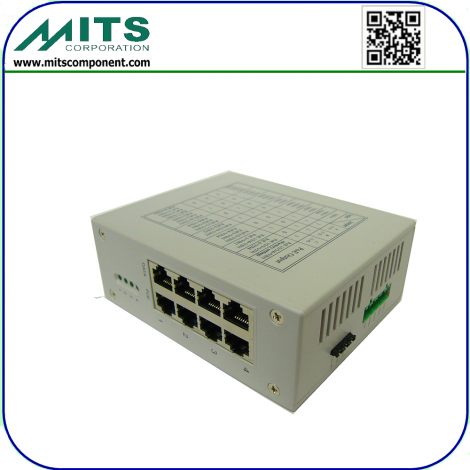

Product Description
Part number:

Data Rate 10M/100M/1000M

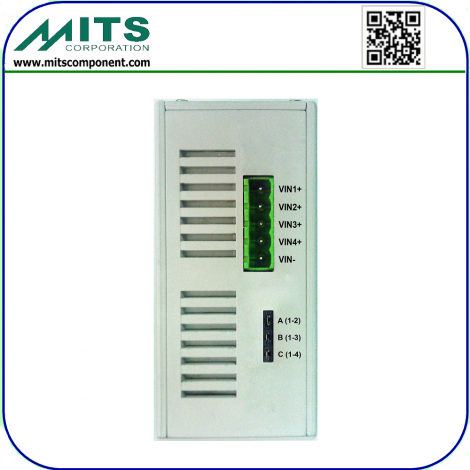

Input Voltage 12VDC to 57VDC (DIN-POE4); 40VDC to 57VDC (DIN-POE4D)
Maximum PoE output 35W per port (DIN-POE4D)
Current limited – 1A/port (DIN-POE4)
Compliance 802.3af/at (DIN-POE4D)
PoE protection over-current protection
LEDs: Green-Power ready, Off-No power apply
Operating temperature -40℃~ +75℃
Operation humidity 90% relative humidity, non-condensing
Storage temperature -40℃~+85℃
Dimension 125mm(H) x46mm(W) x102mm(D) DIN RAIL Mountable
Operating Voltage Data 5V
Clamping Voltage Data 16.5V(@IPP -5A, tp -8/20µs, I/O pin to GNDµ
Peak Pulse Current 20A (tp-8/20µs)
Pin Protected All 8 pin protected
Max Shut Capacitance <3pF (VR-0V, f-1MHz, I/O pin to GND)
<1.5 pF (VR-0V, f-1MHz, Between I/O pins
IEC compatibility(EN 61000-4) IEC 61000-4-2 (ESD)±15kV (air), ±8kV (cotact)
IEC 61000-4-4 (EFT) 40A (5/50ns)
IEC 61000-4-5 (Lightning) 20A (8/20µS
