Product Description

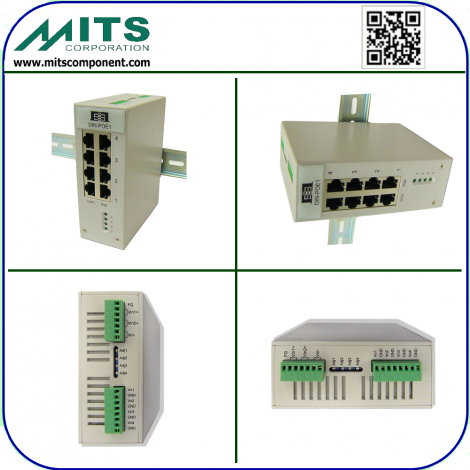

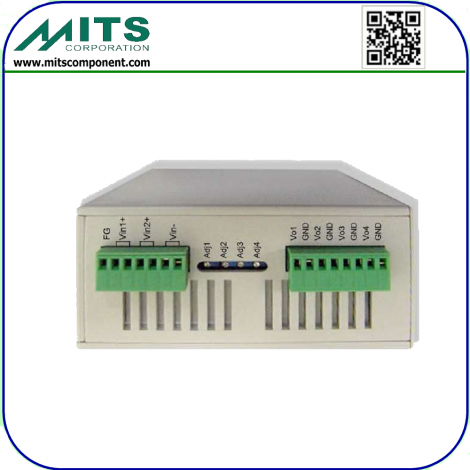

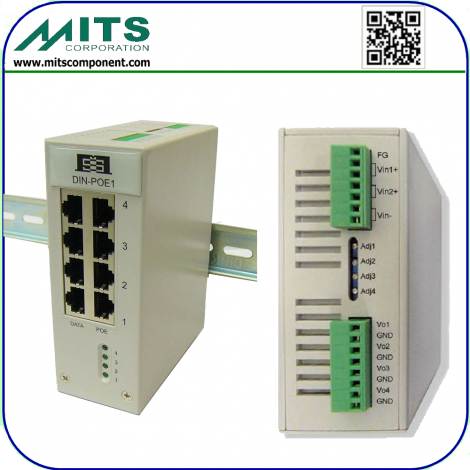

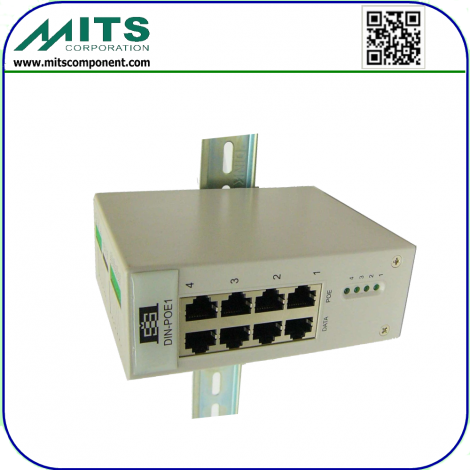

Part number: DIN-POE1
Data Rate | 10M/100M/1000M |
Input Voltage | 5VDC to 30VDC |
Maximum PoE output | Current limited – 2A/port (as the output voltage/current chart below) |
Maximum DC output | 3A maximum (as the output voltage/current chart below) |
Compliance | non 802.3af/at |
PoE protection | over-current protection |
LEDs: | Green-Power ready, Off-No power apply |
Operating temperature | -40℃~ +65℃ |
Operation humidity | 90% relative humidity, non-condensing |
Storage temperature | -40℃~+85℃ |
Dimension | 125mm(H) x46mm(W) x102mm(D) DIN RAIL Mountable |
Packaging & Shipping

Lead Time: 4~8 weeks
We ship whatever you ask, by DHL/UPS/FEDEX/EMS, air or ocean shipment.
Accept small, trial orders, and customised orders too!
Please note: All of our product's delivery term is:Ex-work Taiwan
If there is any product information needed, please contact us or consult online.
