Product Description

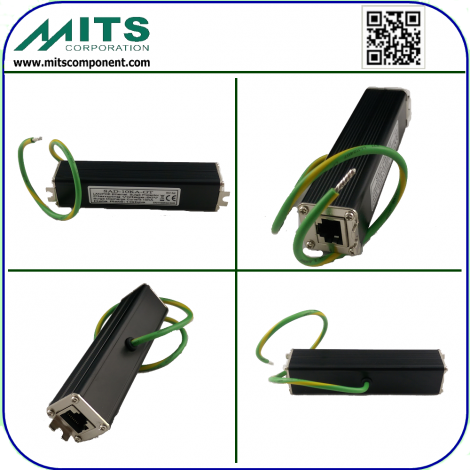

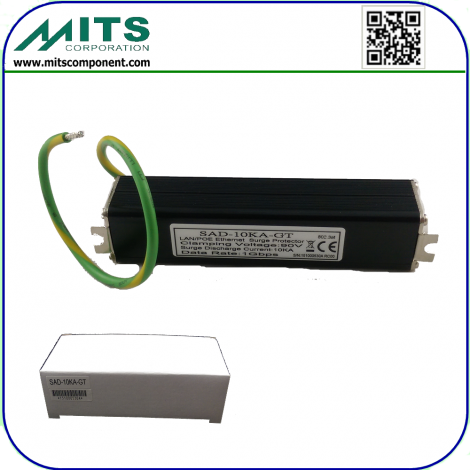

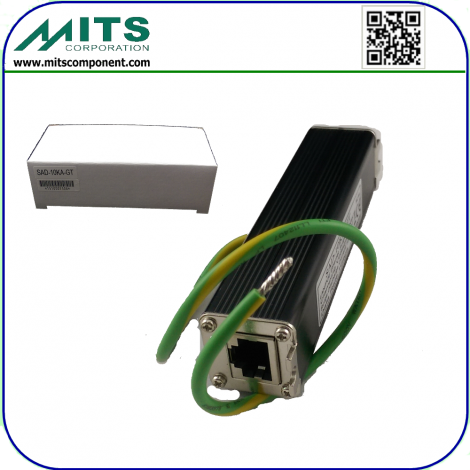

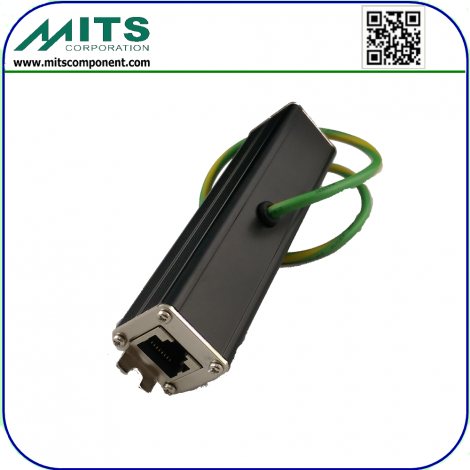

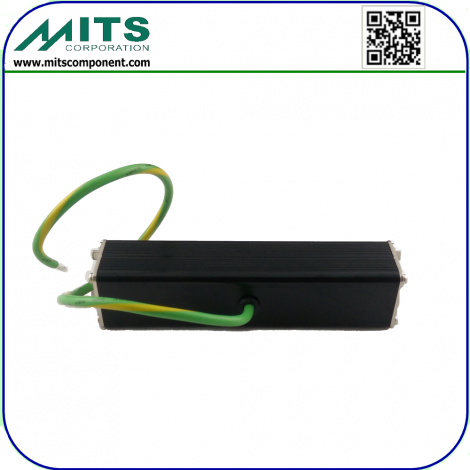

Part number:  SAD-10KA-GT
Operating Voltage Data 5V PoE 48V
Break Down Voltage Data 90V Power 90V
 Max. Surge Discharge Current Data 10KA Power 10KA (8/20uS)
Peak Pulse Current 100A (10/1000uS)
Pin Protected (1) All 8 pin protected
Protection Mode Differential & Common mode
Insulation Impedance > 1000Mohm
Max. Shut Capacitance Power < 2.5pF Data < 2.5pF
Data Rate 1000Mbps
Impulse Protected Voltage < 250V
Response Time < 5nS
Operating Temperature -40℃ ~ +85℃
Storage Temperature -40℃ ~ +125℃
Operating Humidify 0 ~ 95% non condensing
Ground Lug Wire 14AWG
Dimensions 120 x 25.4 x 25.4 mm (include bracket)
111 x 25.4 x 25.4 mm (main body)
Weight 105g
