Product Description

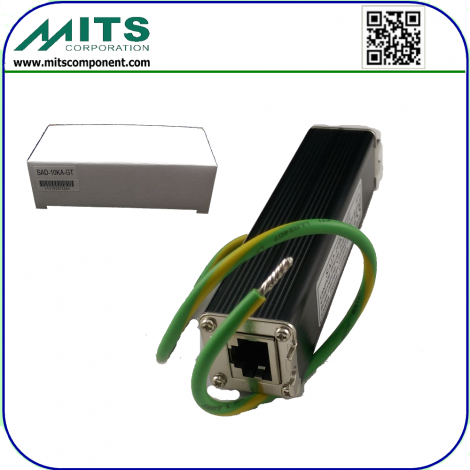

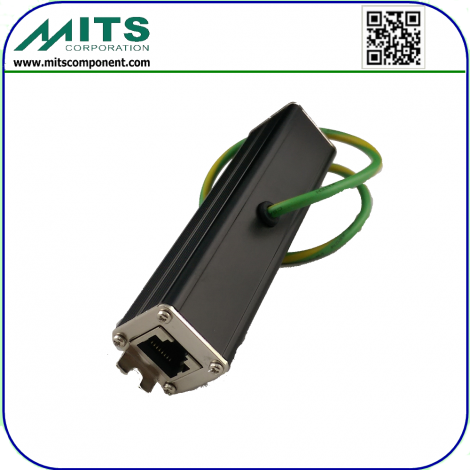

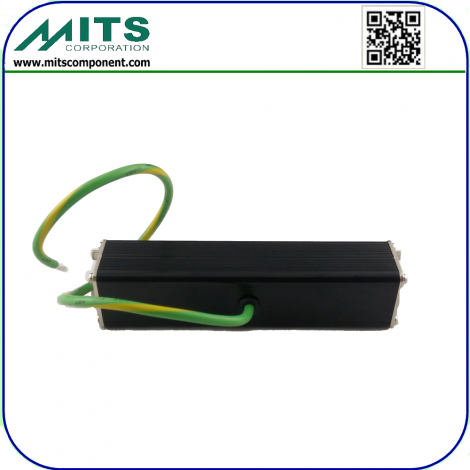

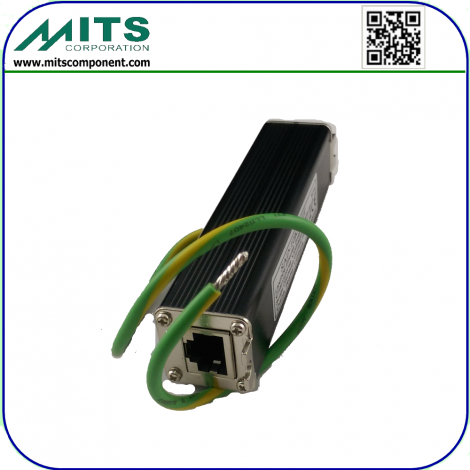

Part number: SAD-10KA
Operating Voltage | Data 5V PoE 48V |
Break Down Voltage (1) | Data 90V Power 82V |
Max. Surge Discharge Current | Data 10KA Power 2.5KA (8/20uS) |
Peak Pulse Current | 100A (10/1000uS) |
Pin Protected (2) | All 8 pin protected |
Protection Mode | Differential & Common mode |
Insulation Impedance | > 1000Mohm |
Max. Shut Capacitance (3) | Power < 2100pF Data <2.5pF |
Data Rate | 100Mbps |
Impulse Protected Voltage (4) | < 500V |
Response Time | < 5nS |
Operating Temperature | -40℃ ~ +85℃ |
Storage Temperature | -40℃ ~ +125℃ |
Operating Humidify | 0 ~ 95% non condensing |
Ground Lug Wire | 16AWG |
Dimensions | 106 x 25.4 x 25.4 mm (include bracket) 97 x 25.4 x 25.4 mm (main body) |
Weight | 96g |
