Product Description

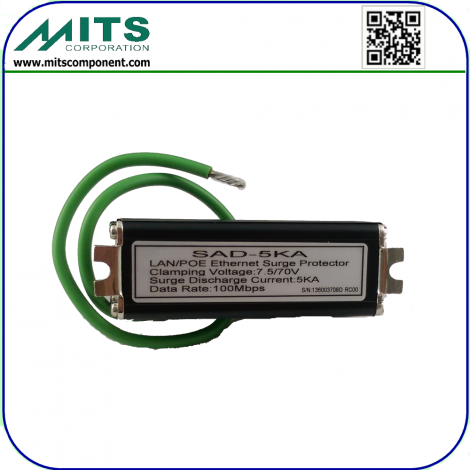

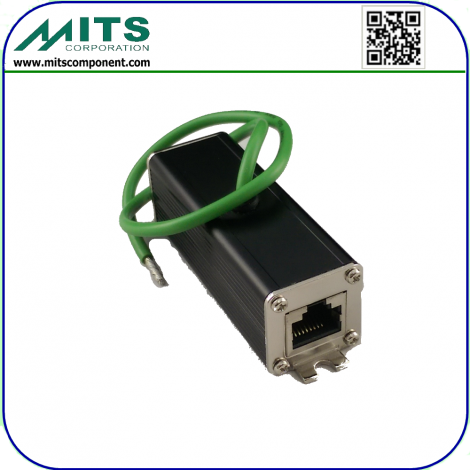

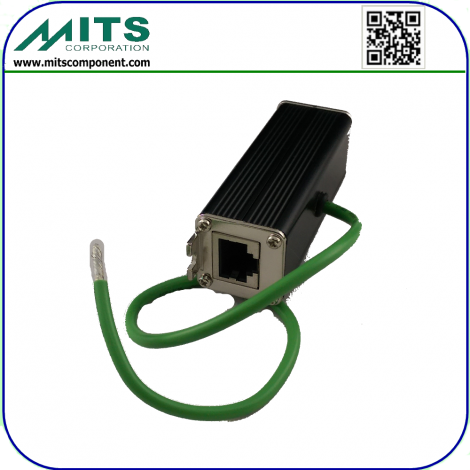

Part number: SAD-5KA-G
| Operating Voltage | Data 5V PoE 48V |
| Clamping Voltage | 70V |
| Max. Surge Discharge Current | 5KA (8/20uS) |
| Peak Pulse Current | 100A (10/1000uS) |
| Pin Protected | All 8 pin protected |
| Protection Mode | Differential & Common mode |
| Insulation Impedance | > 1000M ohm |
| Max. Shut Capacitance | < 25pF |
| Data Rate | 10/100/1000 Mbps* |
| Impulse Protected Voltage | < 650V |
| Response Time | < 5nS |
| Operating Temperature | -40℃ ~ +85℃ |
| Storage Temperature | -40℃ ~ +90℃ |
| Operating Humidify | 0 ~ 95% non condensing |
| Ground Lug Wire | 14AWG |
| Dimensions | 95 x 25.4 x 25.4 mm (include bracket) 83 x 25.4 x 25.4 mm (main body) |
| Weight | 80g |
