Product Description
Part number: POE-SPI-3052G
Description: 30W/52V output
| Product Name | 10/100/1000M Single Port PoE Injector 30W |
| Product Model | POE-SPI-3052DG |
| Port Description | 10/100/1000M copper cable RJ45 PoE port, 1x AC input port |
| PoE Power Supply | mid-span: 4/5, 7/8 data line pair(default) end-span: 1/2,3/6 spare line pair (can be customized) |
| Network Medium | 1000BASE-TX: 5Cat and more UTP (≤100 meters) |
| Thermal Protection | >100°C |
| Performance | Working rate:10/100/1000Mbps working rate |
| Network port protection: meet with IEC61000-4-2(ESD) | |
| MTBF: 190,000 hours(about 21 years) | |
| LEDs Indicator | PoE working status |
| Power | Total power: 30W |
| PoE port power: 30W | |
| AC input voltage: 110~220V | |
| Dimensions/Weight | L x W x H: 14 5x 10.48 x 15.85(mm), 0.154kg |
| Working Environment | Operating Temperature: 0°～ 55°C Storage Temperature: -20°～ 75°C |
| Working Humidity: 10%～90%, non-condensing Storage Humidity: 10%～95%, non-condensing |
|
| Warranty | CE mark, commercial, FCC Part 15 Class B，RoHS |
| 1 year warranty |
Packaging & Shipping

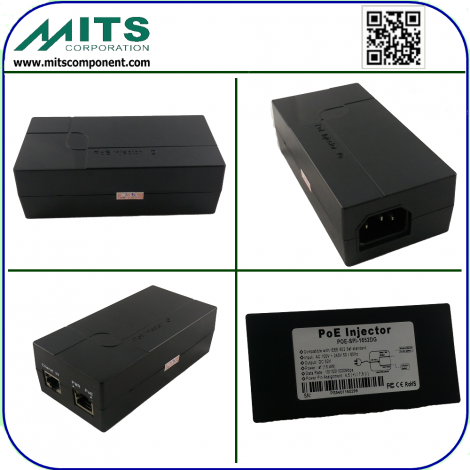

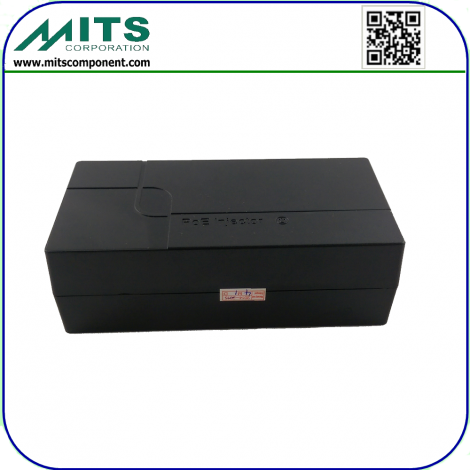

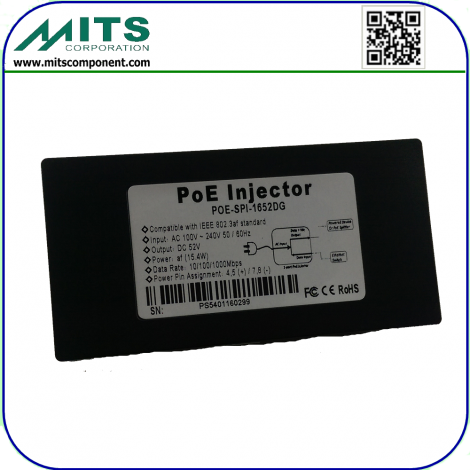

Product Size Display
.png)

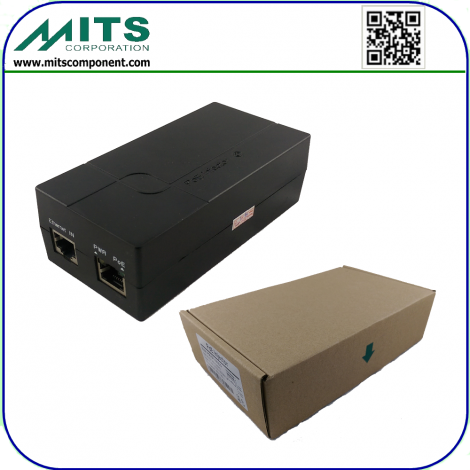

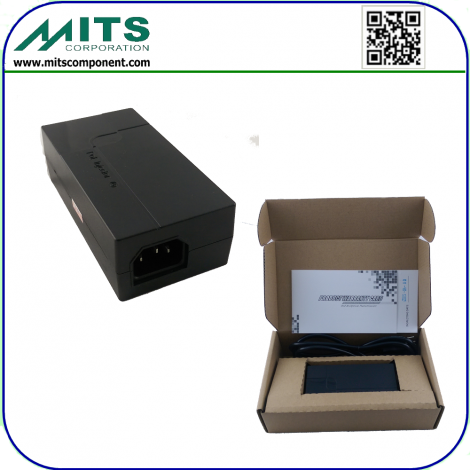

Product Packing Lists
| Package List | 10/100/1000M Single Port PoE Injector AC Input 15.4W |
| User Guide | |
| Power Cable | |
| Warranty Card |
Lead Time: 4~8 weeks
We ship whatever you ask, by DHL/UPS/FEDEX/EMS, air or ocean shipment.
Accept small, trial orders, and customised orders too!
Please note: All of our product's delivery term is: Ex-work Taiwan
If there is any product information needed, please contact us or consult online
