Product Description
Part number:
Description:  16W/52V output
Product Name 10/100/1000M Single Port PoE Injector 30W
Product Model POE-SPI-1652DG
Port Description 10/100/1000M copper cable RJ45 PoE port, 1x AC input port
PoE Power Supply mid-span: 4/5, 7/8 data line pair(default)
end-span: 1/2,3/6 spare line pair (can be customized)
Network Medium 1000BASE-TX: 5Cat and more UTP (≤100 meters)
Thermal Protection >100°C
Performance Working rate:10/100/1000Mbps working rate
Network port protection: meet with IEC61000-4-2(ESD)
MTBF: 190,000 hours(about 21 years)
PoE Standards IEEE 802.3af
LEDs Indicator PoE working status
Power Total power: 16W
PoE port power: 15.4W
AC input voltage: 110~220V
Dimensions/Weight L x W x H: 14 5x 10.48 x 15.85(mm), 0.154kg
Working Environment Operating Temperature: 0°~ 55°C
Storage Temperature: -20°~ 75°C
Working Humidity: 10%~90%, non-condensing
Storage Humidity: 10%~95%, non-condensing
Warranty CE mark, commercial,
FCC Part 15 Class B,RoHS
1 year warranty

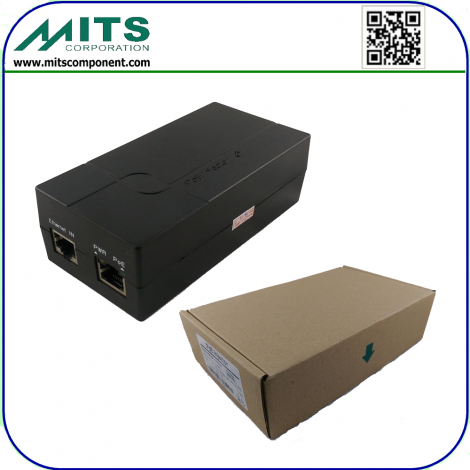

Packaging & Shipping

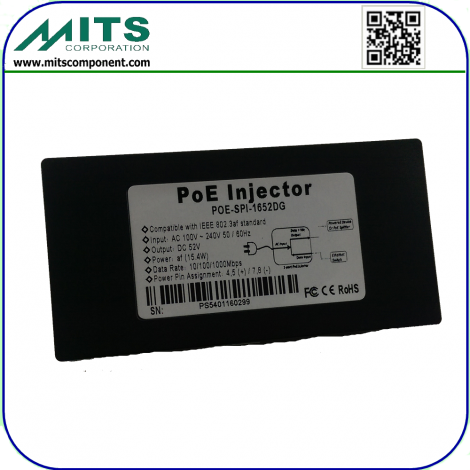

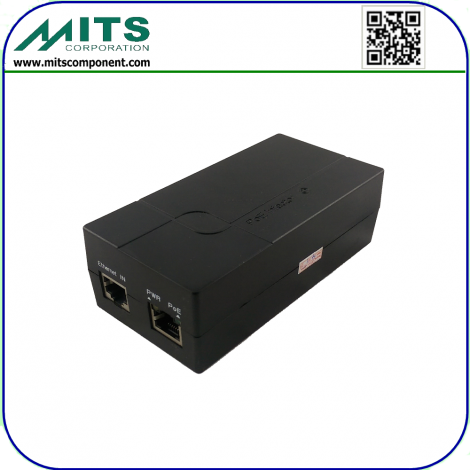

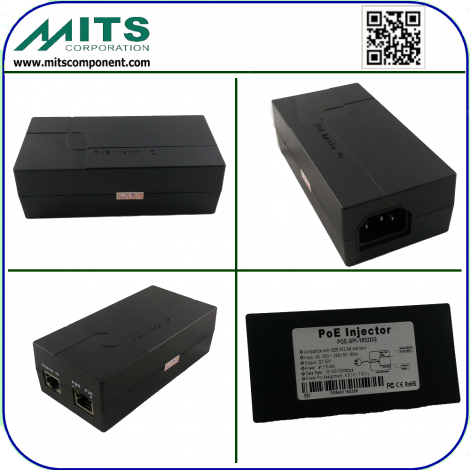

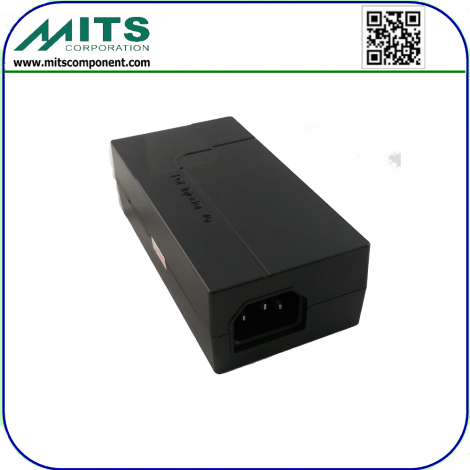

Product Size Display

Product Packing Lists
Package List 10/100/1000M Single Port PoE Injector AC Input 15.4W
User Guide
Power Cable
Warranty Card

Lead Time: 4~8 weeks
We ship whatever you ask, by DHL/UPS/FEDEX/EMSair or ocean shipment

Accept small, trial orders, and customised orders too!

Please note: All of our product's delivery term is: Ex-work Taiwan
If there is any product information needed, please contact us or consult online
