Product Description
Part number: POE-HSP-40AC1N4

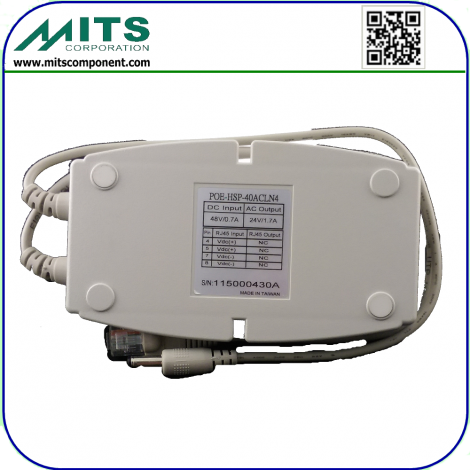

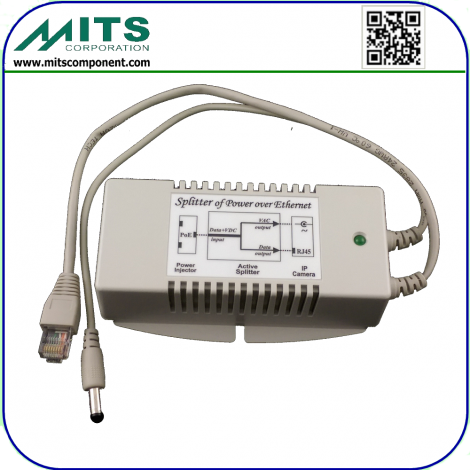

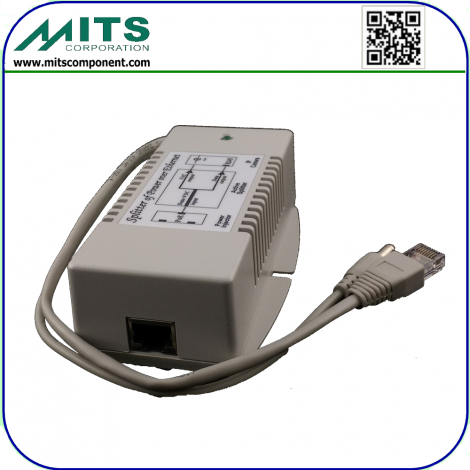

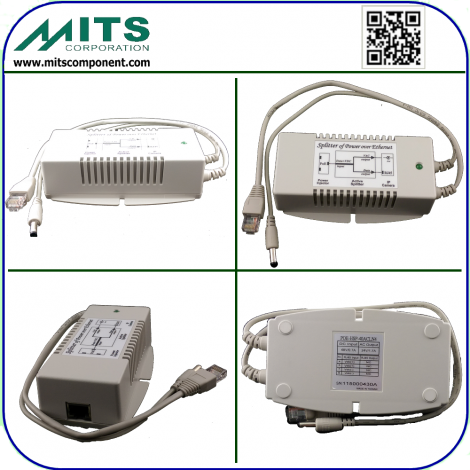

Description: 40W/24Vac output ,5.5mm/2.1mm DC plug
Application
· IP Phone
· IP Camera
· Access Point
· Door Security
· Security CAM
· WiMAX BS/CPE
· Mini Notebook PC
· Network terminals which require high power feed.(IPC,POS....etc.)
PSE feeds power via Spare pairs
| RJ-45 Input (Data & Power) | RJ-45 Output (Data Only) | |||
| Pin | Symbol | Description | Symbol | Description |
| 1 | Rx+ | Data Receive | Rx+ | Data Receive |
| 2 | Rx- | Data Receive | Rx- | Data Receive |
| 3 | Tx+ | Data Transmit | Tx+ | Data Transmit |
| 4 | Vin +/ - | Feeding power(±) | -Vdc_return(+) | Not Connected |
| 5 | Vin +/ - | Feeding power(±) | -Vdc_return(+) | Not Connected |
| 6 | Tx- | Data Transmit | Tx- | Data Transmit |
| 7 | Vin +/ - | Feeding power(±) | -V dc | Not Connected |
| 8 | Vin +/ - | Feeding power(±) | -V dc | Not Connected |
PSE feeds power via Data pairs
| RJ-45 Input (Data & Power) | RJ-45 Output (Data Only) | |||
| Pin | Symbol | Description | Symbol | Description |
| 1 | Rx+ & Vin(±) | Data Receive & Feeding power(±) | Rx+ | Data Receive |
| 2 | Rx- & Vin(±) | Data Receive & Feeding power(±) | Rx- | Data Receive |
| 3 | Tx+ & Vin(±) | Data Transmit & Feeding power(±) | Tx+ | Data Transmit |
| 4 | NC | Not Connected | NC | Not Connected |
| 5 | NC | Not Connected | NC | Not Connected |
| 6 | Tx+ & Vin(±) | Data Transmit & Feeding power(±) | Tx+ | Data Transmit |
| 7 | NC | Not Connected | NC | Not Connected |
| 8 | NC | Not Connected | NC | Not Connected |

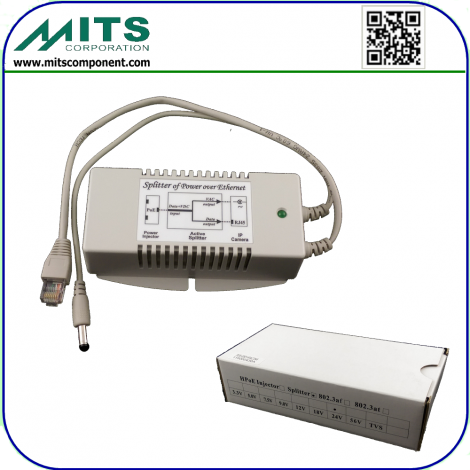

Packaging & Shipping
Mechanical & Dimension
| Plastic Case Material | PC | |
| Plastic Case Finish | Texture | |
| Plastic Case Color | Gray | |
| Plastic Case Dimension | 125 x 75 x 38 (L x W x H) mm. | |
| DC/AC Out Power Plug | Diameter | 2.1 / 5.5mm or 2.5 / 5.5mm |
| Length | 12 +/- 0.5mm. 180℃ angle. | |
| Number of unit in one Carton | 50 |
| Weight of Carton Volume | N.W.：15Kg. G.W.：16Kg. 1.3Cuft. |
| Weight of Unit / Weight of Box | 175g / 210g |
| Dimension of Box | 165 x 82.5 x 44 (L x W x H) mm |
Lead Time: 4~8 weeks
We ship whatever you ask, by DHL/UPS/FEDEX/EMS, air or ocean shipment.
Accept small, trial orders, and customised orders too!
Please note: All of our product's delivery term is:Ex-work Taiwan
If there is any product information needed, please contact us or consult online.
