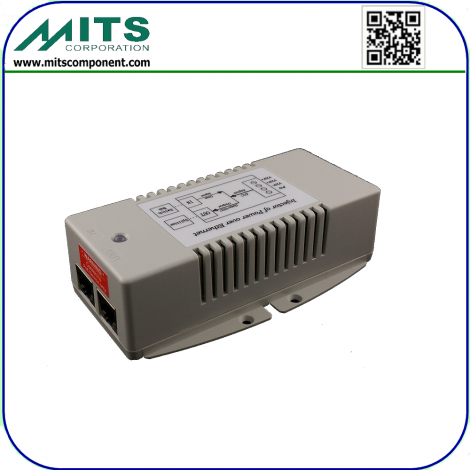

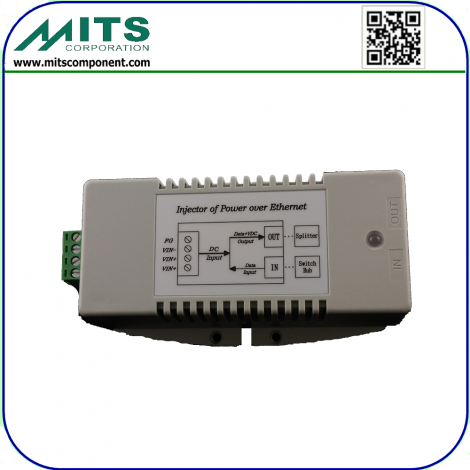

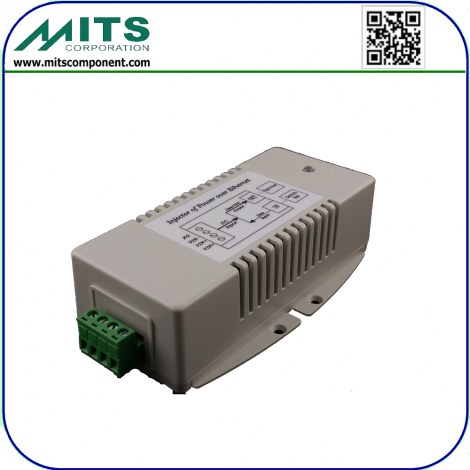

Product Description
Part number: POE-GIE-3556ID4
Description: DC 10V~16V Input, 35W/56V ouput, with IEEE 802.3at detection
Application
· Industrial PC
· Transportation
· Security CAM
· Any Gigabit Ethernet terminals which work with industrial DC input system
· Any Gigabit Ethernet terminals which require power under 30W
| RJ-45 Input (Data Only) | RJ-45 Output (Data & Power) | |||
| Pin | Symbol | Description | Symbol | Description |
| 1 | Rx+ | Data Receive | Rx+ | Data Receive |
| 2 | Rx- | Data Receive | Rx- | Data Receive |
| 3 | Tx+ | Data Transmit | Tx+ | Data Transmit |
| 4 | Data | Data | +Vdc | Power(+)+Data |
| 5 | Data | Data | +Vdc | Power(+)+Data |
| 6 | Tx- | Data Transmit | Tx- | Data Transmit |
| 7 | Data | Data | -Vdc | Power(-)+Data |
| 8 | Data | Data | -Vdc | Power(-)+Data |
Packaging & Shipping
Mechanical & Dimension
| Plastic Case Material | PC |
| Plastic Case Finish | Texture |
| Plastic Case Color | Gray |
| Plastic Case Dimension | 125 x 75 x 38 (L x W x H) mm. |

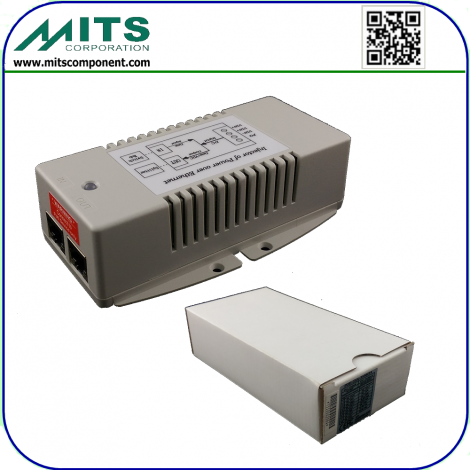

Package
| Number of unit in one Carton | 50 |
| Weight of Carton Volume | N.W.：15Kg. G.W.：16Kg. 1.3Cuft. |
| White Box Dimension | 165 x 82.5 x 44 (L x W x H) mm |
Lead Time: 4~8 weeks
We ship whatever you ask, by DHL/UPS/FEDEX/EMS, air or ocean shipment.
Accept small, trial orders, and customised orders too!
Please note: All of our product's delivery term is:Ex-work Taiwan
If there is any product information needed, please contact us or consult online.
