Product Description

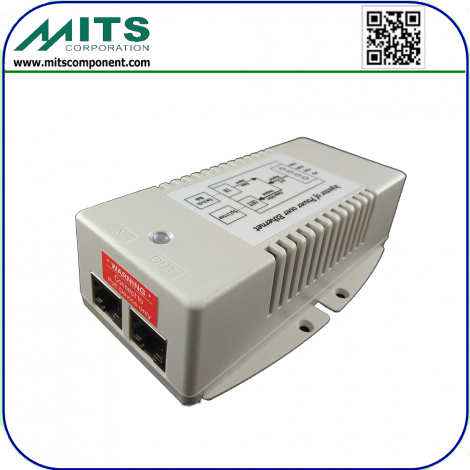

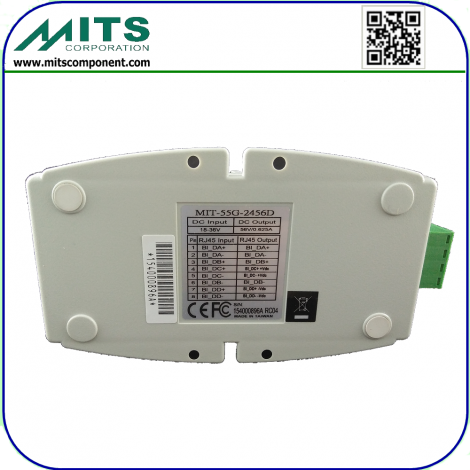

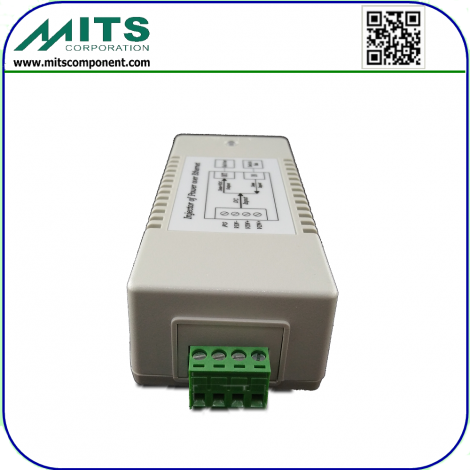

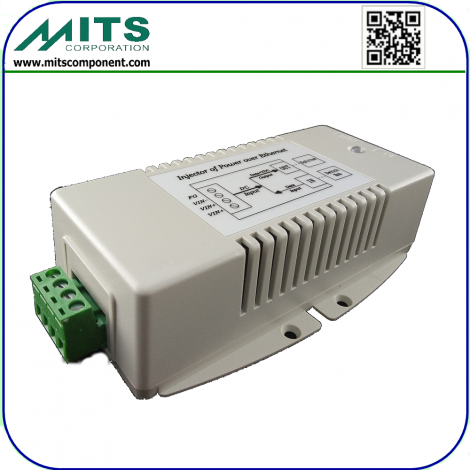

Part number: MIT-55G-2456
Description: DC Input, 35W/56V ouput, No optional function
Application
· IP Phone
· IP Camera
· Access Point
· Door Security
· Security CAM
· Any network terminals which work with industrial DC input system
RJ45 Connection and pin out: @100MBASE
| RJ-45 Cable Output (Data Only) | RJ-45 Socket Input (Data & Power) | |||
| Pin | Symbol | Description | Symbol | Description |
| 1 | Rx+ | Data Receive | Rx+ | Data Receive |
| 2 | Rx- | Data Receive | Rx- | Data Receive |
| 3 | Tx+ | Data Transmit | Tx+ | Data Transmit |
| 4 | NC | NC | -Vdc_return(+) | Feeding power(+) |
| 5 | NC | NC | -Vdc_return(+) | Feeding power(+) |
| 6 | Tx- | Data Transmit | Tx- | Data Transmit |
| 7 | NC | NC | -V dc | Feeding power(-) |
| 8 | NC | NC | -V dc | Feeding power(-) |
RJ45 Connection and pin out: @1000MBASE
| RJ-45 Cable Output (Data Only) | RJ-45 Socket Input (Data & Power) | |||
| Pin | Symbol | Description | Symbol | Description |
| 1 | BI_DA+ | Data Pair A+ | BI_DA+ | Data Pair A+ |
| 2 | BI_DA- | Data Pair A- | BI_DA- | Data Pair A- |
| 3 | BI_DB+ | Data Pair B+ | BI_DB+ | Data Pair B+ |
| 4 | BI_DC+ | Data Pair C+ | +Vdc + BI_DC+ | power(+)+Data Pair C+ |
| 5 | BI_DC- | Data Pair C- | +Vdc + BI_DC- | power(+)+Data Pair C- |
| 6 | BI_DB- | Data Pair B- | BI_DB- | Data Pair B- |
| 7 | BI_DD- | Data Pair D+ | -Vdc + BI_DD+ | power(-)+Data Pair D+ |
| 8 | NC | Data Pair D- | -Vdc + BI_DD- | power(-)+Data Pair D |
Packaging & Shipping
Lead Time: 4~8 weeks
We ship whatever you ask, by DHL/UPS/FEDEX/EMS, air or ocean shipment.
Accept small, trial orders, and customised orders too!
Please note: All of our product's delivery term is:Ex-work Taiwan
If there is any product information needed, please contact us or consult online.
