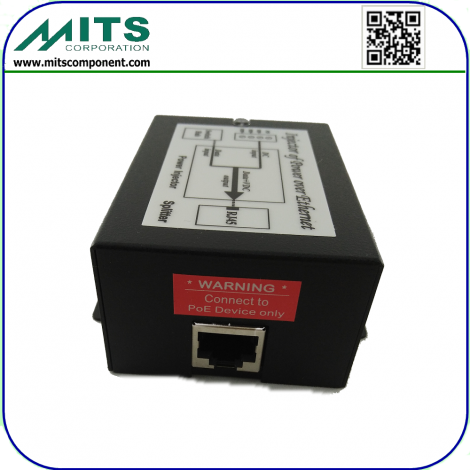

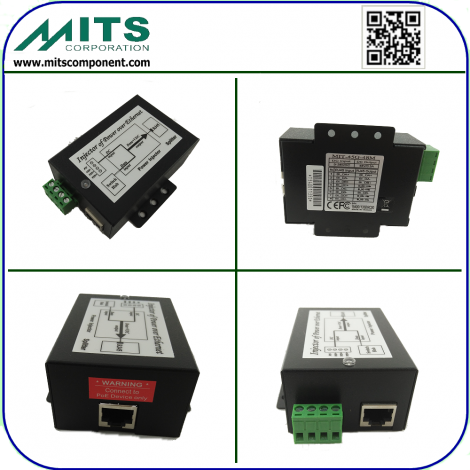

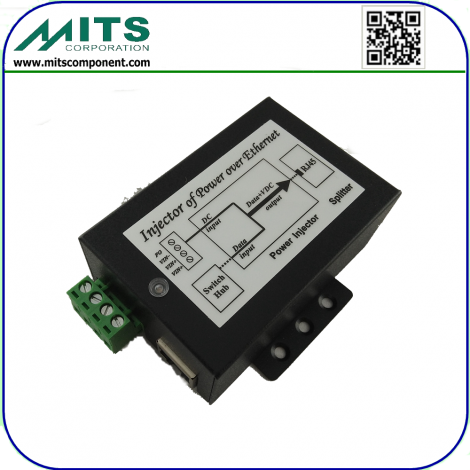

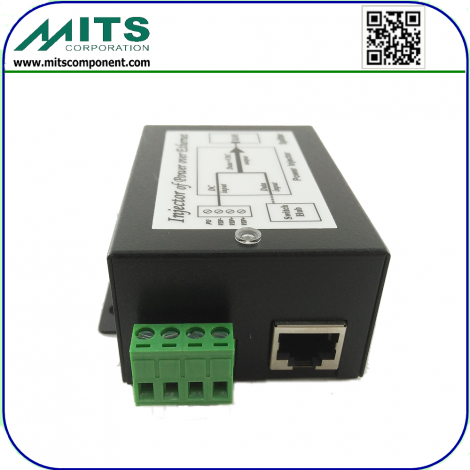

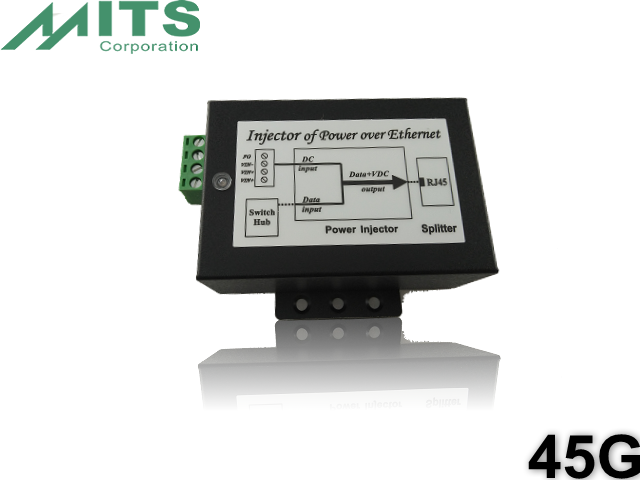

Product Description

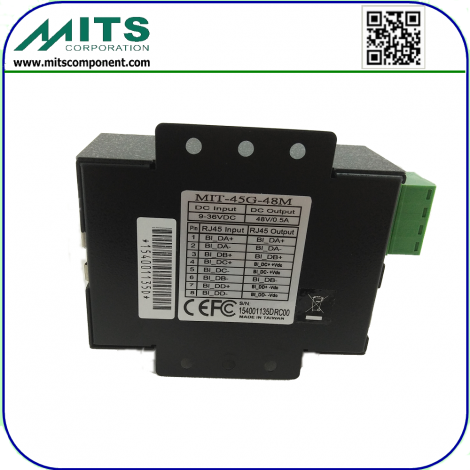

Part number: MIT-45G-48
Description: DC Input, 24W/48V ouput, No optional function
Application
· IP Phone
· IP Camera
· Access Point
· Door Security
· Security CAM
· Any network terminals which work with industrial DC input system
· Network terminals which require power under 24W
| RJ-45 Input (Data & Power) | ||
| Pin | Symbol | Description |
| 1 | BI_DA+ | Data Pair A+ |
| 2 | BI_DA- | Data Pair A- |
| 3 | BI_DB+ | Data Pair B+ |
| 4 | +Vdc+BI_DC+ | power(+)+Data Pair C+ |
| 5 | +Vdc+BI_DC- | power(+)+Data Pair C- |
| 6 | BI_DB- | Data Pair B- |
| 7 | -Vdc+BI_DD+ | power(-)+Data Pair D+ |
| 8 | -Vdc+BI_DD- | power(-)+Data Pair D- |
| RJ-45 Output (Data Only) | ||
| Pin | Symbol | Description |
| 1 | BI_DA+ | Data Pair A+ |
| 2 | BI_DA- | Data Pair A- |
| 3 | BI_DB+ | Data Pair B+ |
| 4 | BI_DC+ | Data Pair C+ |
| 5 | BI_DC- | Data Pair C- |
| 6 | BI_DB- | Data Pair B- |
| 7 | BI_DD+ | Data Pair D+ |
| 8 | BI_DD- | Data Pair D- |
Packaging & Shipping
Lead Time: 4~8 weeks
We ship whatever you ask, by DHL/UPS/FEDEX/EMS, air or ocean shipment.
Accept small, trial orders, and customised orders too!
Please note: All of our product's delivery term is:Ex-work Taiwan
If there is any product information needed, please contact us or consult online.
