Product Description
Part number:

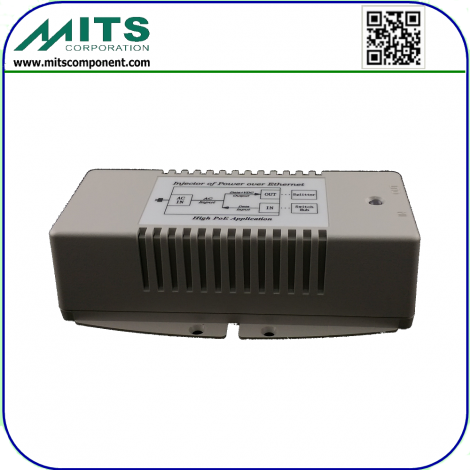

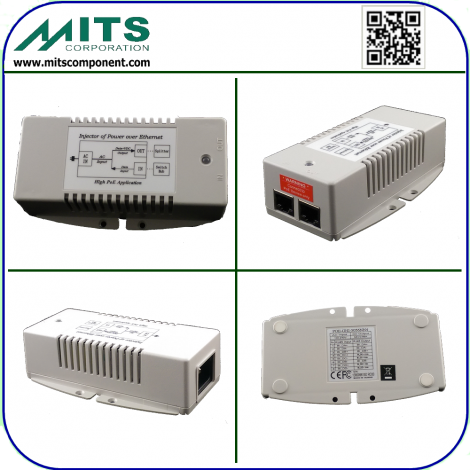

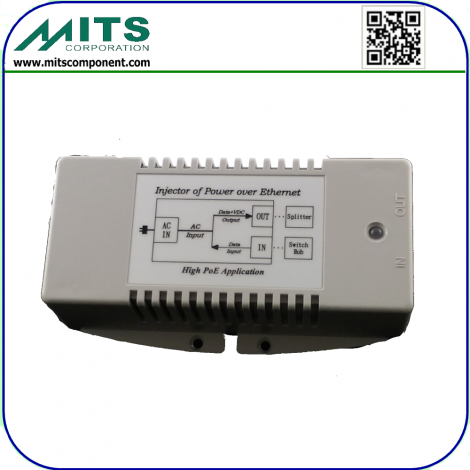

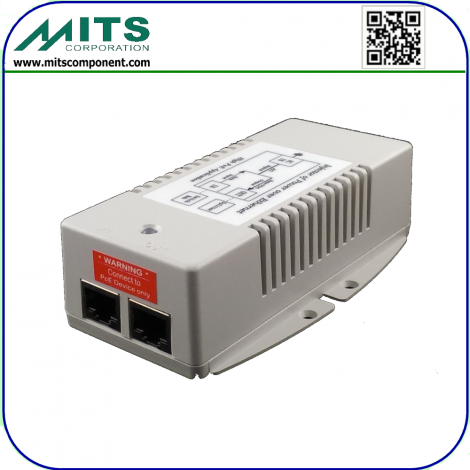

POE-GHI-4824NN4
Description:  48W/24V output, No optional function, power feeding by 4 pins
Application
·         IEEE 802.11n terminals
·         Network terminals which require Gigabit transmission and (High) PoE
  RJ-45 Input (Data Only) RJ-45 Output (Data & Power)
Pin Symbol Description Symbol Description
1 Rx+ Data Receive Rx+ Data Receive
2 Rx- Data Receive Rx- Data Receive
3 Tx+ Data Transmit Tx+ Data Transmit
4 Data Data +Vdc Power(+)+Data
5 Data Data +Vdc Power(+)+Data
6 Tx- Data Transmit Tx- Data Transmit
7 Data Data -Vdc Power(-)+Data
8 Data Data -Vdc Power(-)+Data


Packaging & Shipping
Mechanical & Dimension
Plastic Case Material PC
Plastic Case Finish Texture
Plastic Case Color Gray
Plastic Case Dimension 125 x 75 x 38 (L x W x H) mm.

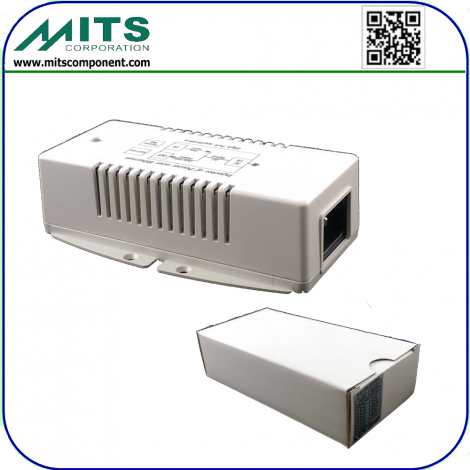

Package
Number of unit in one Carton 50
Weight and Volume without Power cord N.W.:21Kg. G.W.:22Kg. 2.1Cuft.
White Box Dimension 21 x 8 x 6 (L x W x H) mm
Weight of Unit/ Weight of White Box 210g/ 390g




Lead Time: 4~8 weeks
We ship whatever you ask, by DHL/UPS/FEDEX/EMSair or ocean shipment

Accept small, trial orders, and customised orders too!


Please note: All of our product's delivery term is: Ex-work Taiwan
If there is any product information needed, please contact us or consult online
