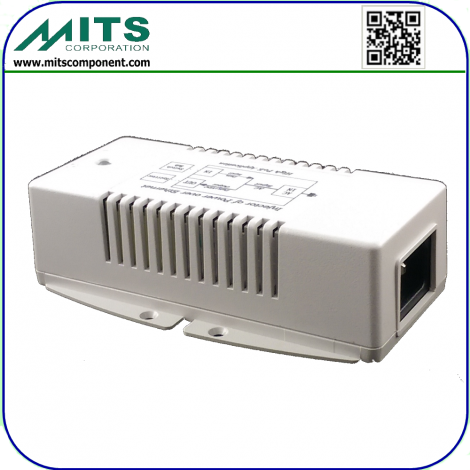

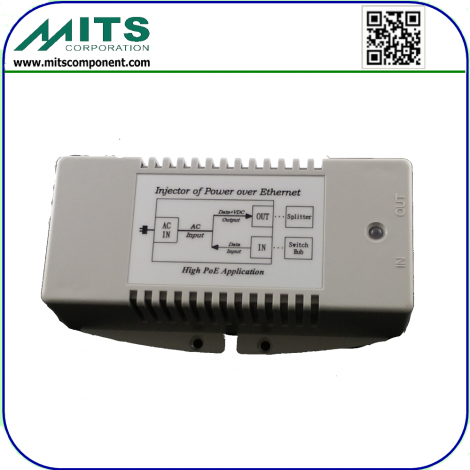

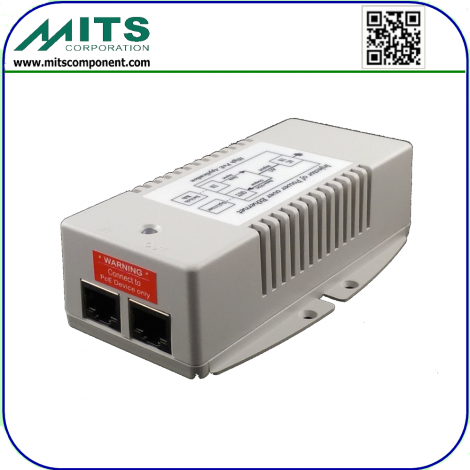

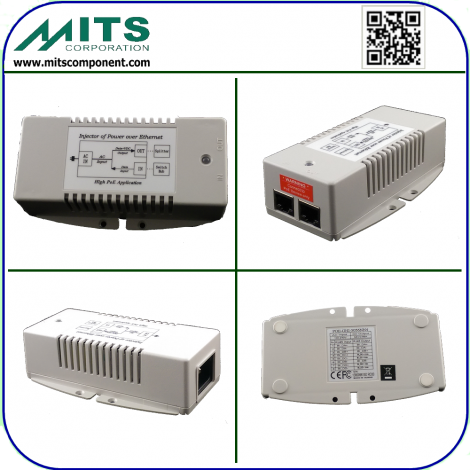

Product Description
Part number:
Description:  36W/18V output, No optional function, power feeding by 4 pins
·         IP Phone
·         IP Camera
·         Access Point
·         Door Security
·         Security CAM
·         WiMAX BS/CPE
·         Mini Notebook PC
·         Network terminals which require high power feed.(IPC,POS....etc.)
  RJ-45 Input (Data Only RJ-45 Output (Data & Power)
Pin Symbol Description Symbol Description
1 Rx+ Data Receive Rx+ Data Receive
2 Rx- Data Receive Rx- Data Receive
3 Tx+ Data Transmit Tx+ Data Transmit
4 NC Not Connected -Vdc_return(+) Feeding power(+)
5 NC Not Connected -Vdc_return(+) Feeding power(+)
6 Tx- Data Transmit Tx- Data Transmit
7 NC Not Connected -V dc Feeding power(-)
8 NC Not Connected -V dc Feeding power(-)

Packaging & Shipping
Mechanical & Dimension
Plastic Case Material PC
Plastic Case Finish Texture
Plastic Case Color Gray
Plastic Case Dimension 125 x 75 x 38 (L x W x H) mm.
Number of unit in one Carton 50
Weight and Volume without Power cord N.W.:21Kg. G.W.:22Kg. 2.1Cuft.
White Box Dimension 21 x 8 x 6 (L x W x H) mm
Weight of Unit / Weight of White Box 210g/390g

Lead Time: 4~8 weeks
We ship whatever you ask, by DHL/UPS/FEDEX/EMSair or ocean shipment

Accept small, trial orders, and customised orders too!

Please note: All of our product's delivery term is: Ex-work Taiwan
If there is any product information needed, please contact us or consult online
