Interconnects
Superior Signal Integrity Characteristics and Performance to Alternatives Modules.
Complete CFP-4 Development Kit:
1. ML4049 4x28G Passive Host Module-MCB
2. ML4050 4x28G Passive Loopback Module
3. ML4051 4x25/28G Retimed Loopback Module
4. ML4052 4x28G Breakout Module-HCB
2. ML4050 4x28G Passive Loopback Module
3. ML4051 4x25/28G Retimed Loopback Module
4. ML4052 4x28G Breakout Module-HCB
Products Description
The MultiLane CFP4 Development Kit provides the necessary development tools and reference modules required for developing CFP4 based products. This kit is essential for development, testing and characterization of CFP4 based products. It can also be used for testing 100G CDRs, 100G Gearbox devices, 100G CFP4 ports on routers and line-cards, electro-optical modules and CFP4 active optical cables..
Key Features :
- Superior Signal Integrity design using high performance Rogers 3003/4350 based PCBs
- Host uses 40GHz End Launch MultiLane 2.92mm K-Connectors
- Full MSA Compliant functionality
- Passive Loopback Module offers programmable power dissipation with spotted hot areas
- Temperature Monitor
- MDIO interface compliant with IEEE 802.3 Clause 45
- Hosts controlled via USB-2 interface
- Diagnostic interface to verify operation of MDIO Slave
- Windows based user friendly GUI
- Custom Memory Maps
- Host uses 40GHz End Launch MultiLane 2.92mm K-Connectors
- Full MSA Compliant functionality
- Passive Loopback Module offers programmable power dissipation with spotted hot areas
- Temperature Monitor
- MDIO interface compliant with IEEE 802.3 Clause 45
- Hosts controlled via USB-2 interface
- Diagnostic interface to verify operation of MDIO Slave
- Windows based user friendly GUI
- Custom Memory Maps
1. ML4049 CFP4 Host Test Modules
ML4049 is designed to provide an easy and effective solution for programming and characterizing. CFP4 modules come with a complete user-friendly GUI supporting all features defined by CFP4 MSA and simplifying the configurationprocess. Current sense capability is also included in the Host. It is equipped with AOC testing capability for performing 4-corner testing.
- Supports 4x28G interfaces
- MDIO MSA compliant master
- 40 GHz Bo-Jiang 2.92mm K Connectors
- Current Sense
- Matched differential trace length
- All 4 channels comes with matching trace length
- High performance signal integrity traces from edge connectors to CFP4 host connector
- On-board LEDs showing MSA output Alarm states
- On-board buttons/jumpers for MSA input control signals
- User-friendly GUI for MDIO R/W commands and loading custom MSA Memory Maps
- USB interface
- MDIO MSA compliant master
- 40 GHz Bo-Jiang 2.92mm K Connectors
- Current Sense
- Matched differential trace length
- All 4 channels comes with matching trace length
- High performance signal integrity traces from edge connectors to CFP4 host connector
- On-board LEDs showing MSA output Alarm states
- On-board buttons/jumpers for MSA input control signals
- User-friendly GUI for MDIO R/W commands and loading custom MSA Memory Maps
- USB interface
Application: Module Testing

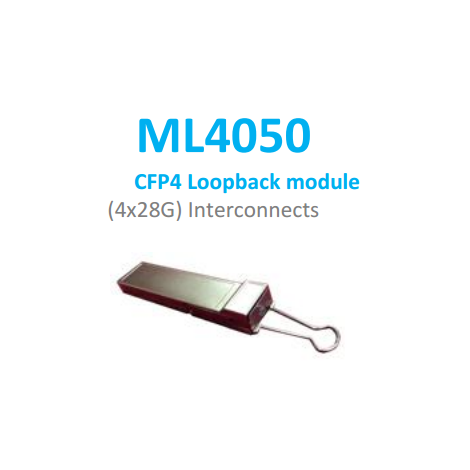

2. ML4050 CFP4 4x28G Passive Loopback Modules
ML4050 is used for Testing CFP4 ports working up to28Gbps, packaged in an MSA compliant housing and offering excellent heat dissipation.
The ML4050 can be programmed to different power levels the through MDIO interface, thus emulating all CFP4 power classes.
- Supports 4x28G
- MSA Compliant Functionality
- MDIO slave interface compliant with IEEE 802.3 Clause 45
- Custom Memory Maps
- Programmable power dissipation up to 6.5W
- High performance signal integrity traces
- Temperature Monitoring
- Cutoff temperature preventing module overheating
- 3 status LED Indicators
- Hot pluggable module
- Insertions counter

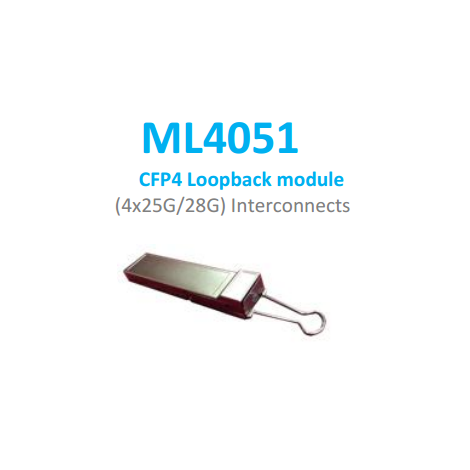

3. ML4051 4x25/28G CFP4 Retimed Loopback Modules
- Support 4x25G/28G
- MSA Compliant Functionality
- MDIO slave interface compliant with IEEE 802.3 Clause 45
- Custom Memory Maps
- Temperature Monitoring
- Retimed loopback at 25.78/27.95/28.05 Gbps Data Rates
- PRBS generator and checker capabilities
Application: At-speed dynamic linecard testing
- MSA Compliant Functionality
- MDIO slave interface compliant with IEEE 802.3 Clause 45
- Custom Memory Maps
- Temperature Monitoring
- Retimed loopback at 25.78/27.95/28.05 Gbps Data Rates
- PRBS generator and checker capabilities
Application: At-speed dynamic linecard testing

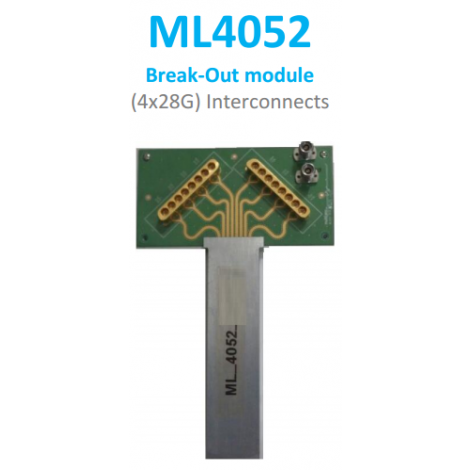

4. ML4052 CFP4 Breakout Modules
This Breakout module can be used for testing and characterizing 4x28G line cards and host interfaces.
- Support 4x28G interfaces
- Matched trace length
- Low Insertion Loss Rogers 3003 based material
- HUBER+SUHNER MXP Connector rows
Application: Characterization for linecards and ports
- Support 4x28G interfaces
- Matched trace length
- Low Insertion Loss Rogers 3003 based material
- HUBER+SUHNER MXP Connector rows
Application: Characterization for linecards and ports
