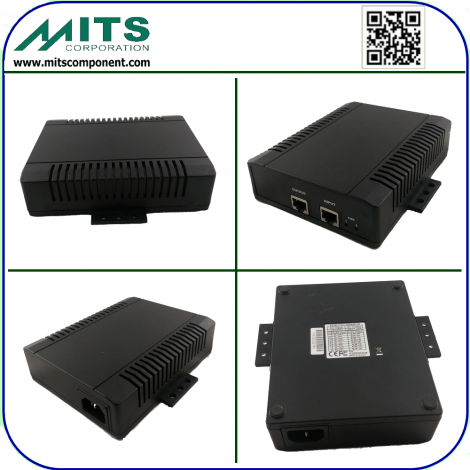

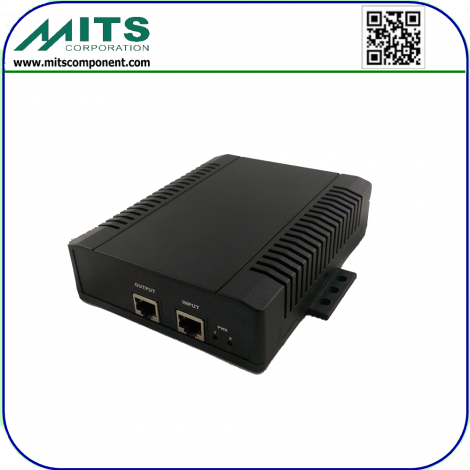

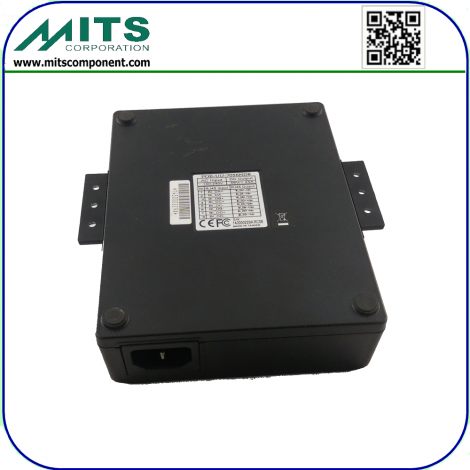

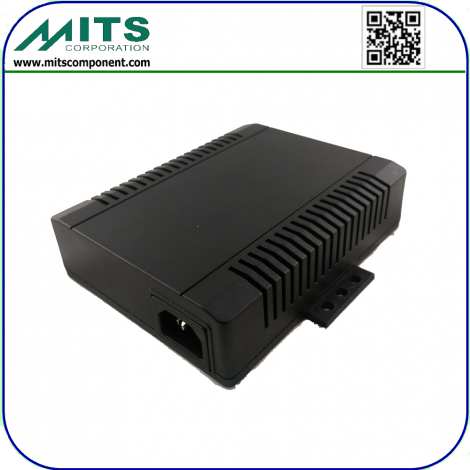

Product Description
Part number: POE-UIJ-6056ND8
Description: 60W/56V output, No optional function
Application

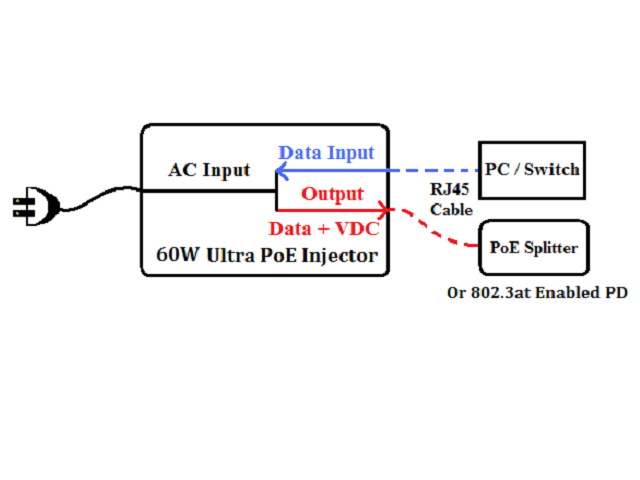

· For PDs which need ultra power.
| RJ-45 Input (Data & Power) | ||
| Pin | Symbol | Description |
| 1 | BI_DA+ | Data Pair A+ |
| 2 | BI_DA- | Data Pair A- |
| 3 | BI_DB+ | Data Pair B+ |
| 4 | BI_DC+ | Data Pair C+ |
| 5 | BI_DC- | Data Pair C- |
| 6 | BI_DB- | Data Pair B- |
| 7 | BI_DD+ | Data Pair D+ |
| 8 | BI_DD- | Data Pair D- |
| 9 | Shield | Connector shielding |
| RJ-45 Output (Data Only) | ||
| Pin | Symbol | Description |
| 1 | -Vdc +BI_DA+ | Power (-)Data Pair A+ |
| 2 | -Vdc +BI_DA- | Power (-)Data Pair A- |
| 3 | +Vdc +BI_DB+ | Power (+)Data Pair B+ |
| 4 | +Vdc +BI_DC+ | Power (+)Data Pair C+ |
| 5 | +Vdc +BI_DC- | Power (+)Data Pair C- |
| 6 | +Vdc +BI_DB- | Power (+)Data Pair B- |
| 7 | -Vdc +BI_DD+ | Power (-)Data Pair D+ |
| 8 | -Vdc +BI_DD- | Power (-)Data Pair D- |
| 9 | Shield | Connector shielding |
Packaging & Shipping
Mechanical & Dimension
| Plastic Case Material | PC |
| Plastic Case Finish | Texture |
| Plastic Case Color | Light Gray |
| Plastic Case Dimension | 125 x 72 x 38 (L x W x H) mm. |
Lead Time: 4~8 weeks
We ship whatever you ask, by DHL/UPS/FEDEX/EMS, air or ocean shipment.
Accept small, trial orders, and customised orders too!
Please note: All of our product's delivery term is: Ex-work Taiwan
If there is any product information needed, please contact us or consult online.
