Product Description
Part number:

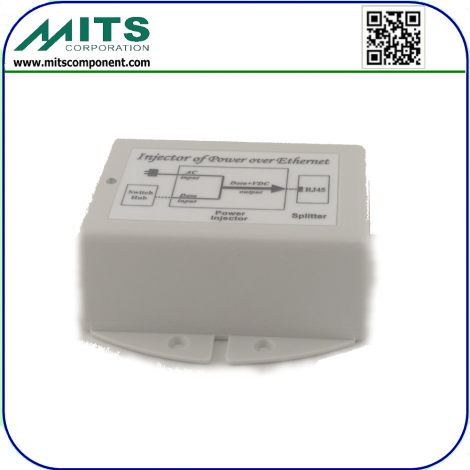

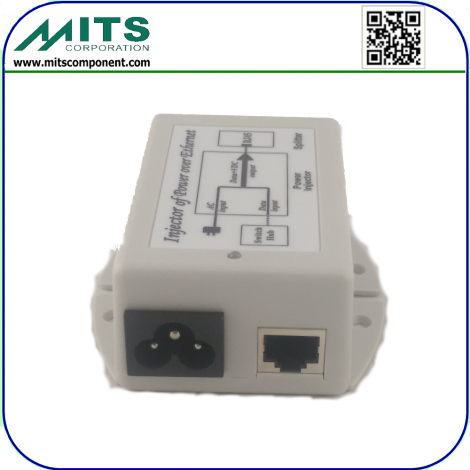

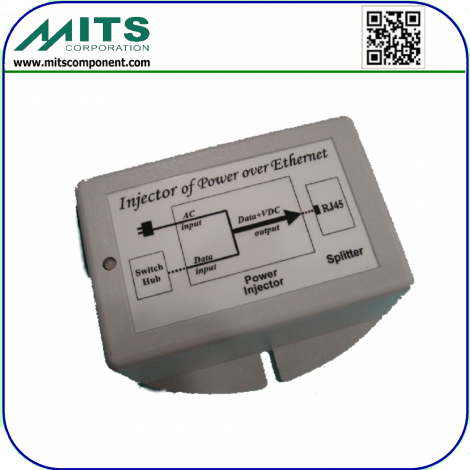

POE-IJ-2448NNN
Description:  24W/48V output, No optional function
Application
·         IP Phone
·         IP Camera
·         Access Point
·         Door Security
·         Security CAM
·         Network terminals which require power under 24W

  RJ-45 Input (Data Only RJ-45 Output (Data & Power)
Pin Symbol Description Symbol Description
1 Rx+ Data Receive Rx+ Data Receive
2 Rx- Data Receive Rx- Data Receive
3 Tx+ Data Transmit Tx+ Data Transmit
4 NC Not Connected -Vdc_return(+) Feeding power(+)
5 NC Not Connected -Vdc_return(+) Feeding power(+)
6 Tx- Data Transmit Tx- Data Transmit
7 NC Not Connected -V dc Feeding power(-)
8 NC Not Connected -V dc Feeding power(-)

Packaging & Shipping
Mechanical & Dimension
Plastic Case Material PC
Plastic Case Finish Texture
Plastic Case Color Gray
Plastic Case Dimension 85 x 77 x 36 (L x W x H) mm.

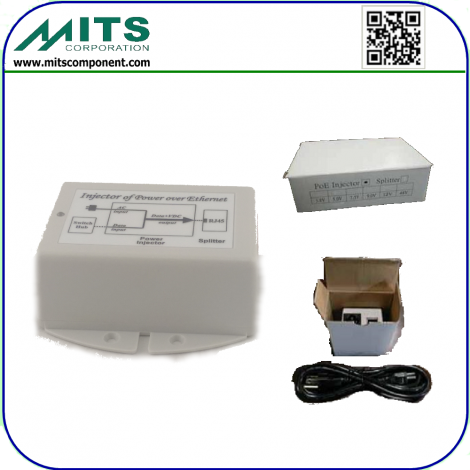

Package
Number of unit in one Carton 100
Weight and Volume without Power cord N.W.:17Kg. G.W.:18Kg. 1.9Cuft.
White Box Dimension 120 x 85 x 40 (L x W x H) mm
Power cord Package N.W.:15Kg. G.W.:16Kg. 1.3Cuft.



Lead Time: 4~8 weeks
We ship whatever you ask, by DHL/UPS/FEDEX/EMSair or ocean shipment

Accept small, trial orders, and customised orders too!


Please note: All of our product's delivery term is: Ex-work Taiwan
