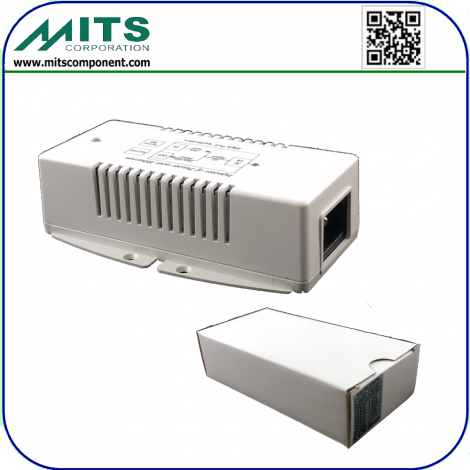

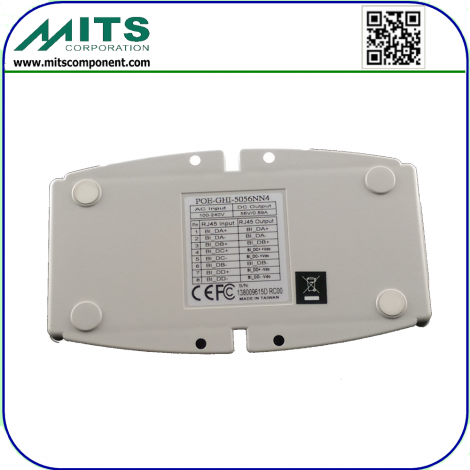

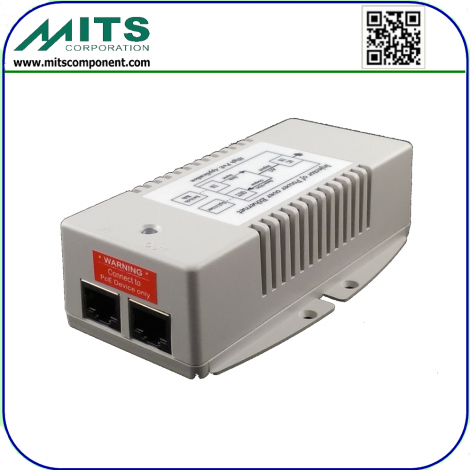

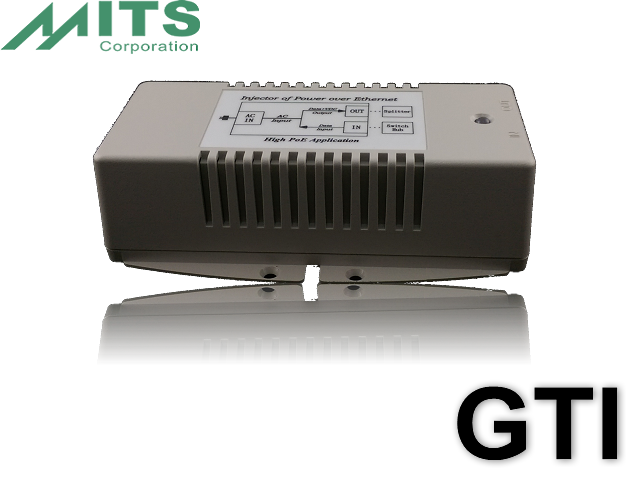

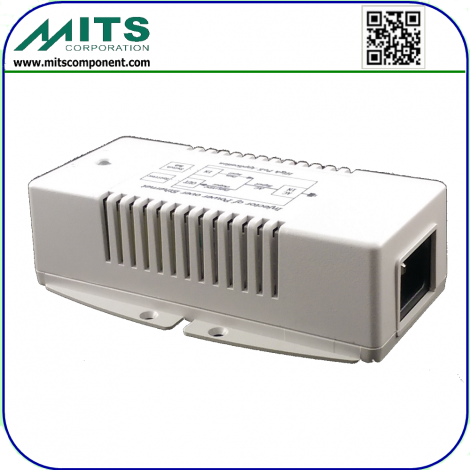

Product Description
Part number: POE-GTI-3556ND4
Description: 35W/56V output, with IEEE 802.3at detection, power feeding by 4 pin
Application
· IEEE 802.3at enabled PDs
· Network terminals which require Gigabit transmission and 802.3at PoE
| RJ-45 Input (Data Only) | RJ-45 Output (Data & Power) | |||
| Pin | Symbol | Description | Symbol | Description |
| 1 | Rx+ | Data Receive | Rx+ | Data Receive |
| 2 | Rx- | Data Receive | Rx- | Data Receive |
| 3 | Tx+ | Data Transmit | Tx+ | Data Transmit |
| 4 | Data | Data | +Vdc | Power(+)+Data |
| 5 | Data | Data | +Vdc | Power(+)+Data |
| 6 | Tx- | Data Transmit | Tx- | Data Transmit |
| 7 | Data | Data | -Vdc | Power(-)+Data |
| 8 | Data | Data | -Vdc | Power(-)+Data |
Packaging & Shipping
Mechanical & Dimension
| Plastic Case Material | PC |
| Plastic Case Finish | Texture |
| Plastic Case Color | Gray |
| Plastic Case Dimension | 125 x 75 x 38 (L x W x H) mm. |
| Number of unit in one Carton | 50 |
| Weight and Volume without Power cord | N.W.:21Kg. G.W.:22Kg. 2.1Cuft. |
| White Box Dimension | 21 x 8 x 6 (L x W x H) mm |
| Weight of Unit/ Weight of White Box | 210g/ 390g |
| AC Power cord | 4 feet/ 122cm |
Lead Time: 4~8 weeks
We ship whatever you ask, by DHL/UPS/FEDEX/EMS, air or ocean shipment.
Accept small, trial orders, and customised orders too!
Please note: All of our product's delivery term is: Ex-work Taiwan
If there is any product information needed, please contact us or consult online
