Power Over Ethernet Solution (PoE)

- INFORMATION -

POE (Power Over Ethernet) PSE mpodules

Silvertel designs and develops a wide range of PoE Power over Ethernet (PSE) modules, including the world's smallest and highest power modules. Manufactured in a variety of sizes, output powers and output voltages to suit a wide range of applications, Silvertel's PoE modules require a minimum of external components and all have built-in Signature recognition in accordance with the IEEE802.3 af/at/bt specification.

For flexibility, most of Silvertel's modules are available with different output voltages, include module overheat protection, and all have output voltage derating, overload, and short-circuit protection, and are available in SIL single-pin, DIL dual-pin, and SMT package sizes.

These PoE modules are cost-effective and can be used in a variety of applications, such as VoIP (Voice over Internet Protocol) phones (IP Phones), IP Cameras, Wireless Routers, Access Control Systems, Point of Sales, POS, Digital Point of Sale (DPS), and other applications. Sales (POS), Digital Sinage, ...etc.

PSE Modules from 30W to 97W

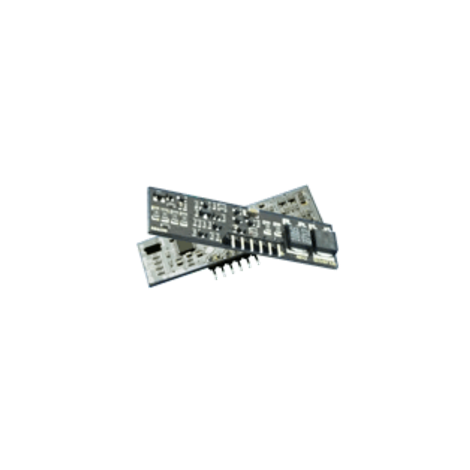

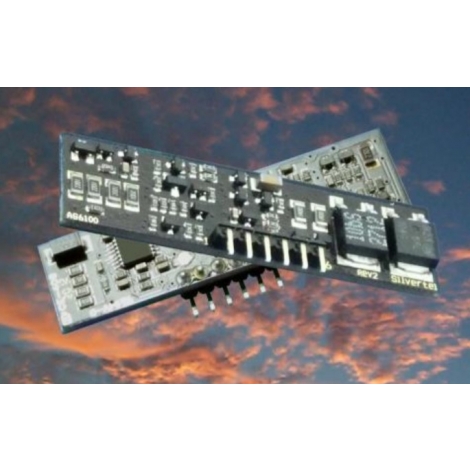

Ag6100 Series

The Ag6100 is a single-channel, small-package SIL PSE module designed to inject power into legacy twisted-pair CAT 5 Ethernet cables. The Ag6100S module is compatible with both IEEE 802.3af and 802.3at PoE devices, and can be paired with Silvertel's PD modules, such as the Ag9900/Ag9700 or Ag5300/5400. The Ag6100S can be used in industrial temperatures.)

The Ag6100S is designed to operate over the industrial temperature range of -40C to +85C. The Ag6100 requires a 48 - 57V DC input and is typically supplied by the Ag7100 (40W) or Ag7200 (20W) DC-DC converter modules.

Ag6120

The Ag6120 is a single-channel, small-package SIL PSE module designed to inject power into traditional twisted pair CAT 5 Ethernet cables.

The Ag6120S module can output up to 75W and is compatible with IEEE 802.3af, 802.3at and 802.3bt devices and PD modules such as the Ag9800, Ag5300 or Ag5810.

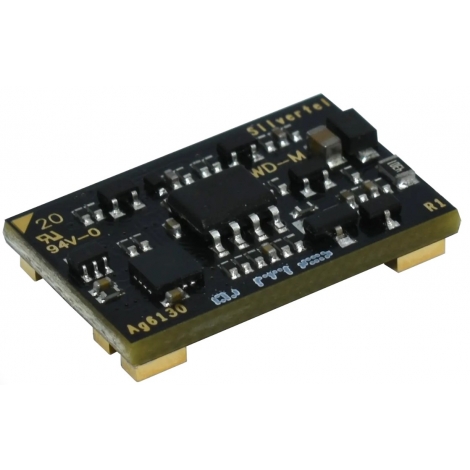

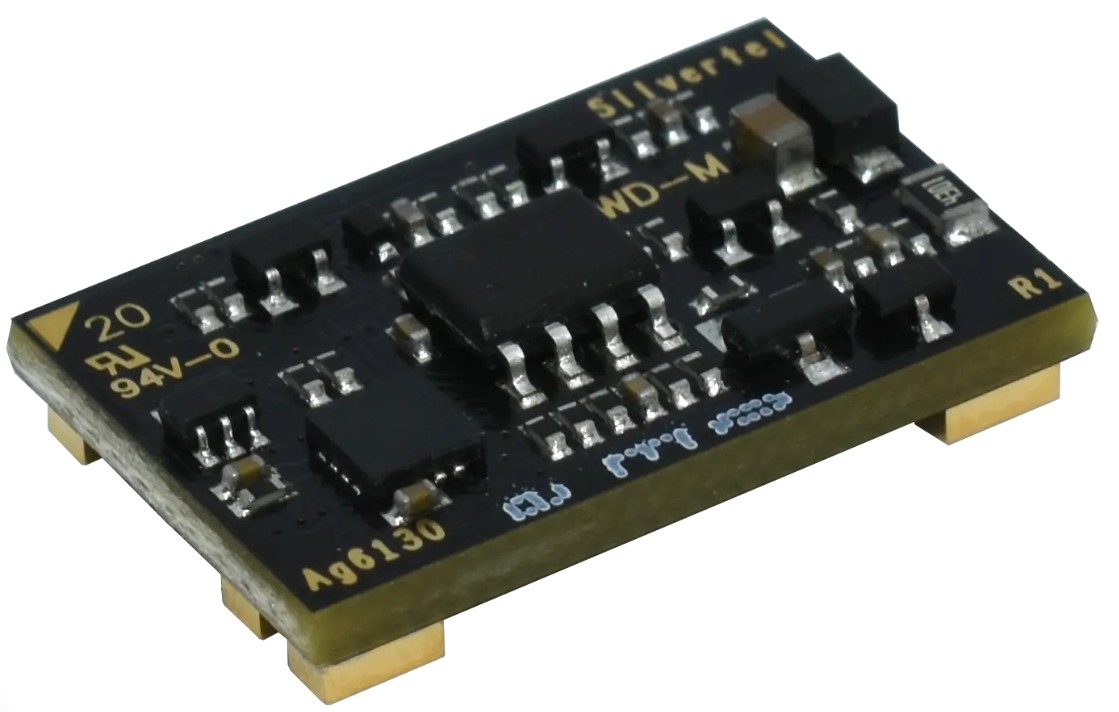

Ag6130

The Ag6130 is a single-channel power supply equipment (PSE) module designed for Power over Ethernet (PoE) applications ranging from 15.4W (IEEE802.3af), 25.5W (IEEE802.3at) to 75W (IEEE802.3bt) of proprietary power.

The Ag6130 is a stand-alone module that requires a single supply voltage and few external components to provide simple, cost-effective power supply equipment (PSE) applications.

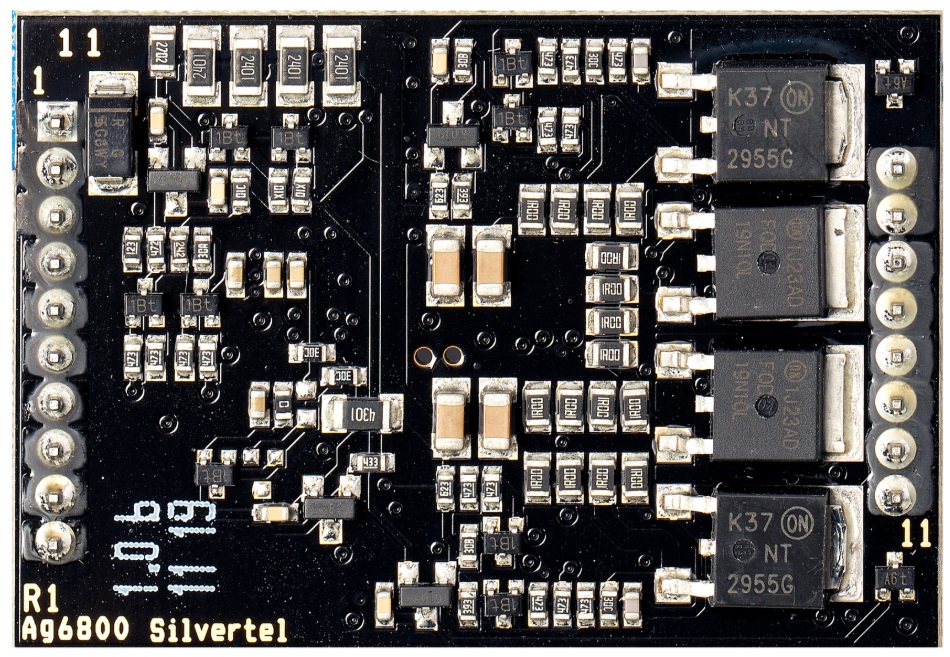

Ag6800

The Ag6800 is a single-channel, high-power PSE module designed to meet IEEE802.3bt standards for Power over Ethernet (PoE) applications. It is capable of delivering up to 97W of power and is targeted at high power applications. The companion Ag5800 PD module is also suitable for POE and PoH applications with related high power requirements.

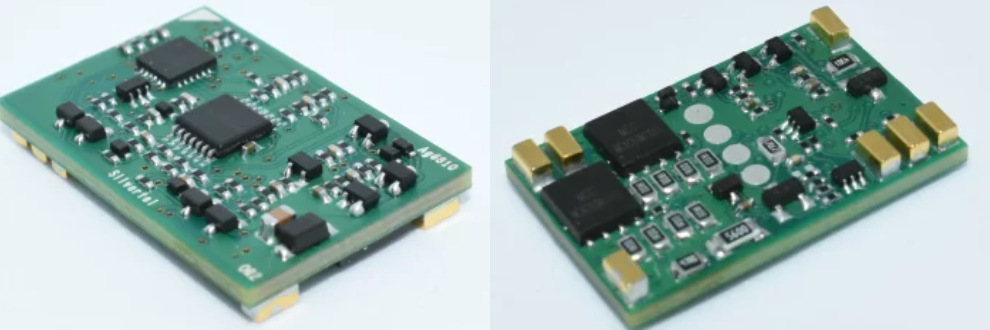

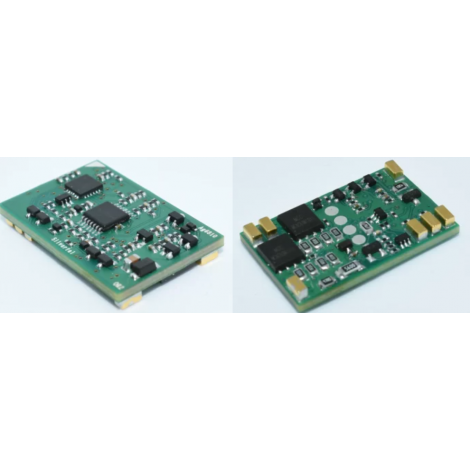

Ag6810: Ultra-Miniature Surface Mount IEEE 802.3 BT PSE Module

Coming Soon !!

The Ag6810 is an ultra-compact surface mount PSE module designed for high power applications, featuring ease of use, power levels and flexible connection options.

Key Features :

Ultra-miniature design: At 28mm x 18mm x 5mm, the Ag6810 is the smallest IEEE802.3bt PSE module available. Its compact size makes it ideal for space-constrained applications.
High Power Output: 90W+
- Single Port: The Ag6810 can deliver over 90 watts of power through a single port for power hungry devices such as IP cameras, access points and industrial sensors.
- Dual IEEE 802.3 AT 30W Ports: Need to power more than one device at a time? The Ag6810 has an alternative connection mode that supports two IEEE 802.3 AT-compliant 30W ports.
- IEEE 802.3 BT PSE Compliant: The Ag6810 is IEEE 802.3 BT PSE compliant, ensuring seamless integration with existing Power over Ethernet (PoE) infrastructures.

Please feel free to contact us for more product info。
