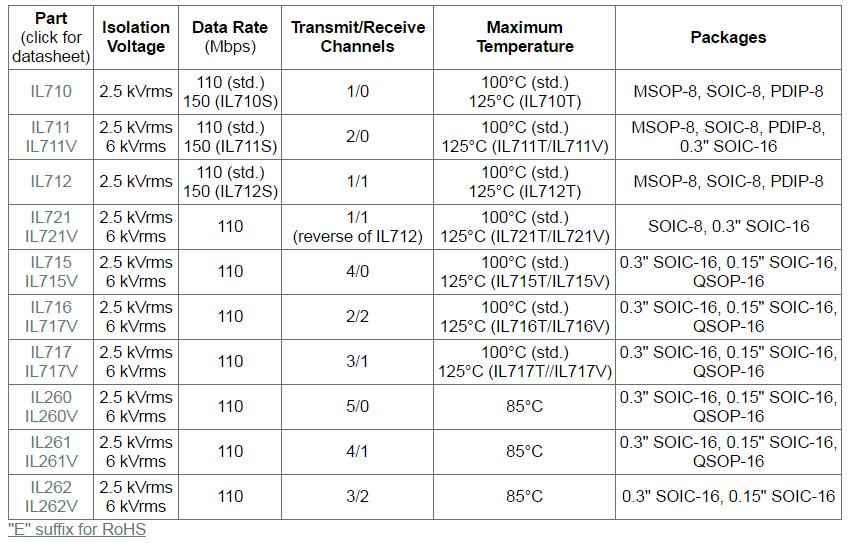

IL700/IL200 High-Speed Digital Signal Isolators
The ultimate in speed and performance...
IL700/IL200 Isolators are the industry standard for solid-state signal isolation and the ultimate in usable data rate and performance. Standard versions are rated at 2.5 kVrms isolation and 600 Vrms Working Volts; V-Series versions are rated at 6 kVrms isolation and 1000 Vrms Working Volts. Popular IL700/IL200 applications includeserial interfaces, isolated Controller Area Network (CAN Bus), isolated Serial Peripheral Interface (SPI), isolated A/D converters, and isolated power interfaces.
Key features are:
![]() ![]() ![]() ![]() ![]() ![]() |
Up to 150 Mbps PWD to 300 ps 100 ps Pulse Jitter 10 ns Typical Propagation Delay <2 mA/Ch Max. Quiescent Current 50 kV/µs Transient Immunity |
![]() ![]() ![]() ![]() ![]() ![]() |
Up to 125°C Up to 6 kV isolation (with "V" suffix) Up to 1 kV Working Voltage 44000 Year Barrier Life Low EM Emissions SOIC, PDIP, MSOP, and QSOP Packages |
