Product Description
Part number: POE-PSP-1A

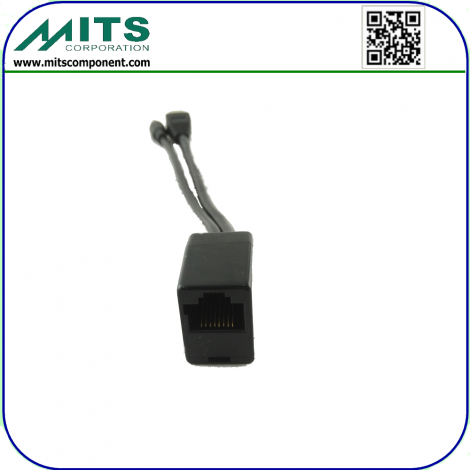

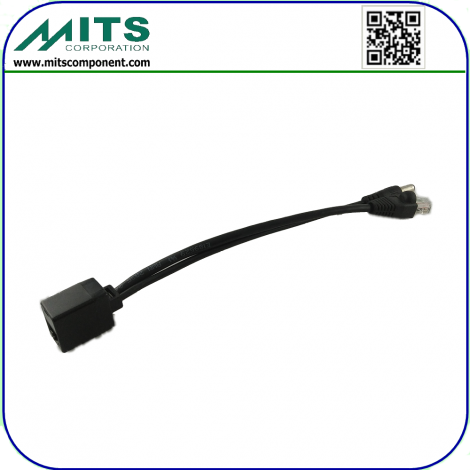

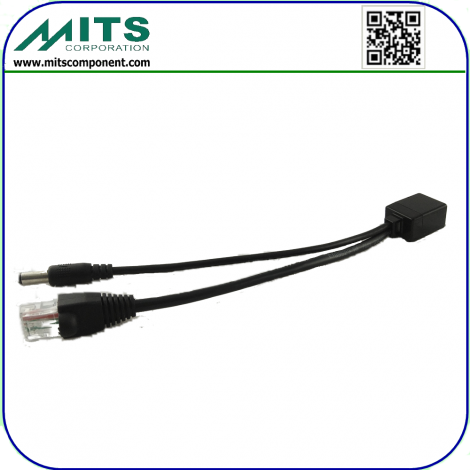

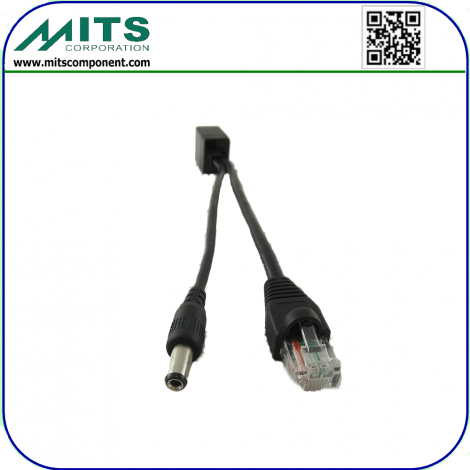

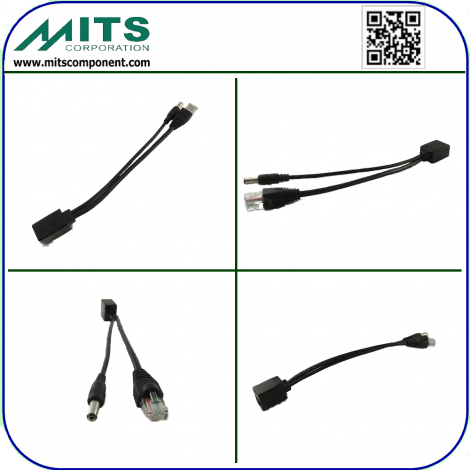

Description: 5.5mm/2.1mm DC plug of Passive PoE Splitter
Application
· IP Phone
· IP Camera
· Access Point
· Door Security
· Security CAM
· Any Ethernet PoE Enabled yerminals etc.
| RJ-45 Cable Output (Data Only) | RJ-45 Socket Input (Data & Power) | |||
| Pin | Symbol | Description | Symbol | Description |
| 1 | Rx+ | Data Receive | Rx+ | Data Receive |
| 2 | Rx- | Data Receive | Rx- | Data Receive |
| 3 | Tx+ | Data Transmit | Tx+ | Data Transmit |
| 4 | NC | NC | -Vdc_return(+) | Feeding power(+) |
| 5 | NC | NC | -Vdc_return(+) | Feeding power(+) |
| 6 | Tx- | Data Transmit | Tx- | Data Transmit |
| 7 | NC | NC | -V dc | Feeding power(-) |
| 8 | NC | NC | -V dc | Feeding power(-) |
Packaging & Shipping
Mechanical & Dimension
| DC Power Plug | Diameter | 5.5mm x 2.1(2.5)mm x 11mm ± 0.3mm |
| Polarity I | Inside (+), Outside (-) | |
| Size | 28 x 16 x 23 (L x W x H) mm. | |
Package
| Number of unit in one Carton | 100 |
| Weight of Carton | N.W.：6Kg. G.W.：7Kg. 1.3Cuft |
| White Box Dimension | 230 x 25 x 25 (L x W x H) mm |
Lead Time: 4~8 weeks
We ship whatever you ask, by DHL/UPS/FEDEX/EMS, air or ocean shipment.
Accept small, trial orders, and customised orders too!
Please note: All of our product's delivery term is:Ex-work Taiwan
If there is any product information needed, please contact us or consult online.
